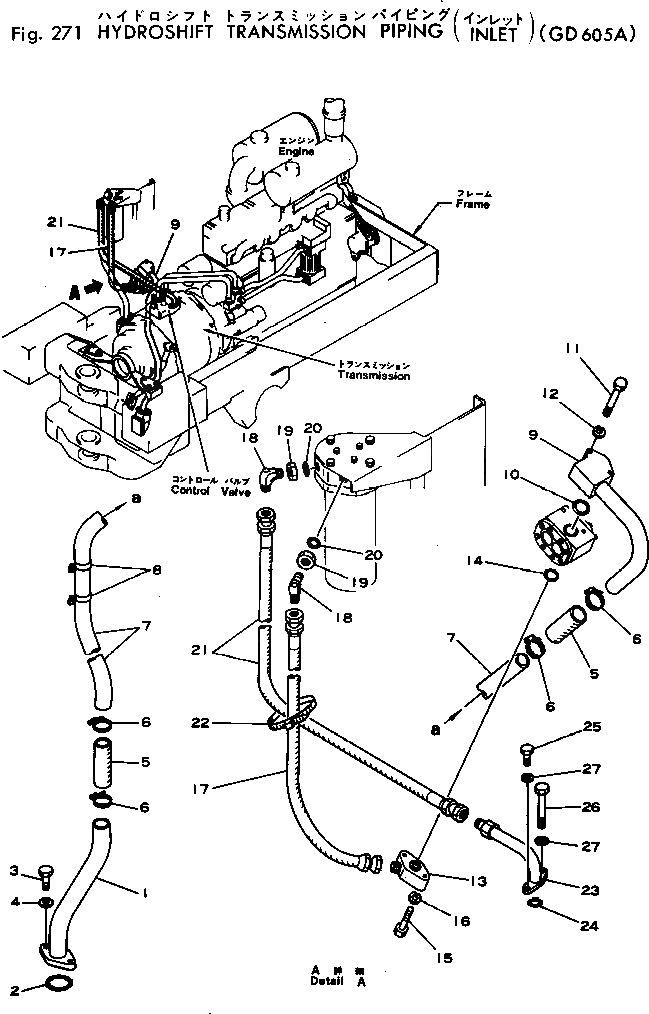

| 1 | 232-16-12210 | TUBE | |
| 2 | 07000-13042 | O-RING | |
| 3 | 01010-51035 | BOLT | |
| 4 | 01602-21030 | WASHER | |
| 5 | 07260-24114 | HOSE | |
| 6 | 07281-00609 | CLAMP | |
| 7 | 232-16-12220 | TUBE | |
| 8 | 232-16-12230 | CLIP | |
| 9 | 232-16-12240 | TUBE | |
| 10 | 07000-13032 | O-RING | |
| 11 | 01010-51080 | BOLT | |
| 12 | 01602-21030 | WASHER | |
| 13 | 232-16-12250 | FLANGE | |
| 14 | 07000-13020 | O-RING | |
| 15 | 01010-51060 | BOLT | |
| 16 | 01602-21030 | WASHER | |
| 17 | 07102-20607 | HOSE | |
| 18 | 07232-10628 | ELBOW | |
| 19 | 07239-12410 | NUT | |
| 20 | 07002-12434 | O-RING | |
| 21 | 07102-20608 | HOSE | |
| 22 | 08034-00834 | BAND | |
| 23 | 232-16-12270 | TUBE | |
| 24 | 07000-13028 | O-RING | |
| 25 | 01010-51030 | BOLT | |
| 26 | 01011-51000 | BOLT | |
| 27 | 01602-21030 | WASHER |
