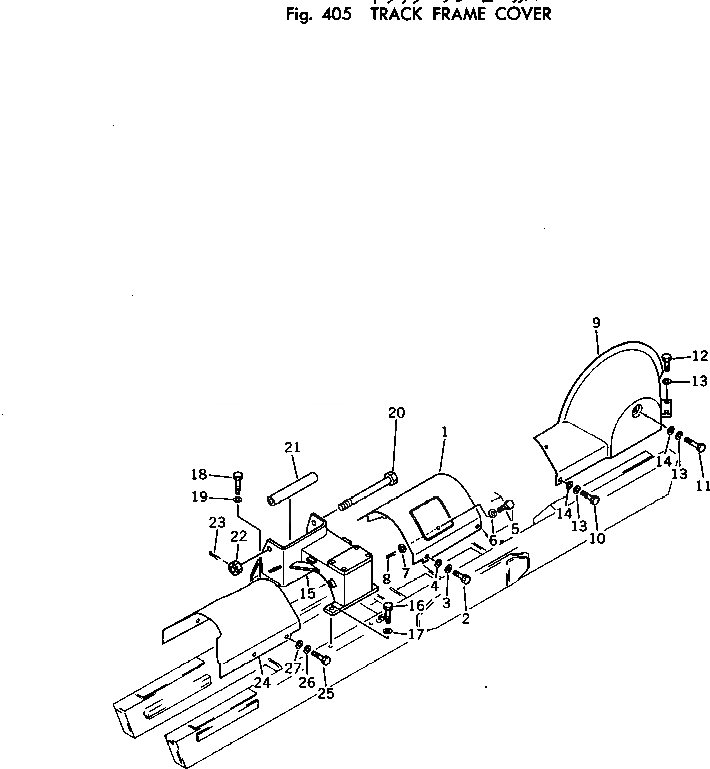

| 1 | 141-30-37111 | COVER,L.H. | |
| |1 | 141-30-37121 | COVER,R.H. | |
| 2 | 01010-31430 | BOLT | |
| 3 | 01602-01442 | WASHER | |
| 4 | 01640-21426 | WASHER | |
| 5 | 141-30-17160 | BOLT | |
| 6 | 01640-21020 | WASHER | |
| 7 | 01641-21016 | WASHER | |
| 8 | 04050-03015 | PIN | |
| 9 | 141-30-37230 | COVER,L.H. | |
| |9 | 141-30-37240 | COVER,R.H. | |
| 10 | 01010-31430 | BOLT | |
| 11 | 01010-31465 | BOLT | |
| 12 | 01010-31435 | BOLT | |
| 13 | 01602-01442 | WASHER | |
| 14 | 01640-21426 | WASHER | |
| 15 | 141-30-37182 | SUPPORT,L.H. | |
| |15 | 141-30-37192 | SUPPORT,R.H. | |
| 16 | 01010-32050 | BOLT | |
| 17 | 01602-02060 | WASHER | |
| 18 | 01010-32250 | BOLT | |
| 19 | 01602-02268 | WASHER | |
| 20 | 141-30-37310 | BOLT | |
| 21 | 145-30-37240 | COLLAR | |
| 22 | 01590-03033 | NUT | |
| 23 | 04050-06045 | PIN | |
| 24 | 141-30-37210 | COVER,L.H. | |
| |24 | 141-30-37220 | COVER,R.H. | |
| 25 | 01010-31430 | BOLT | |
| 26 | 01602-01442 | WASHER | |
| 27 | 01640-21426 | WASHER |
