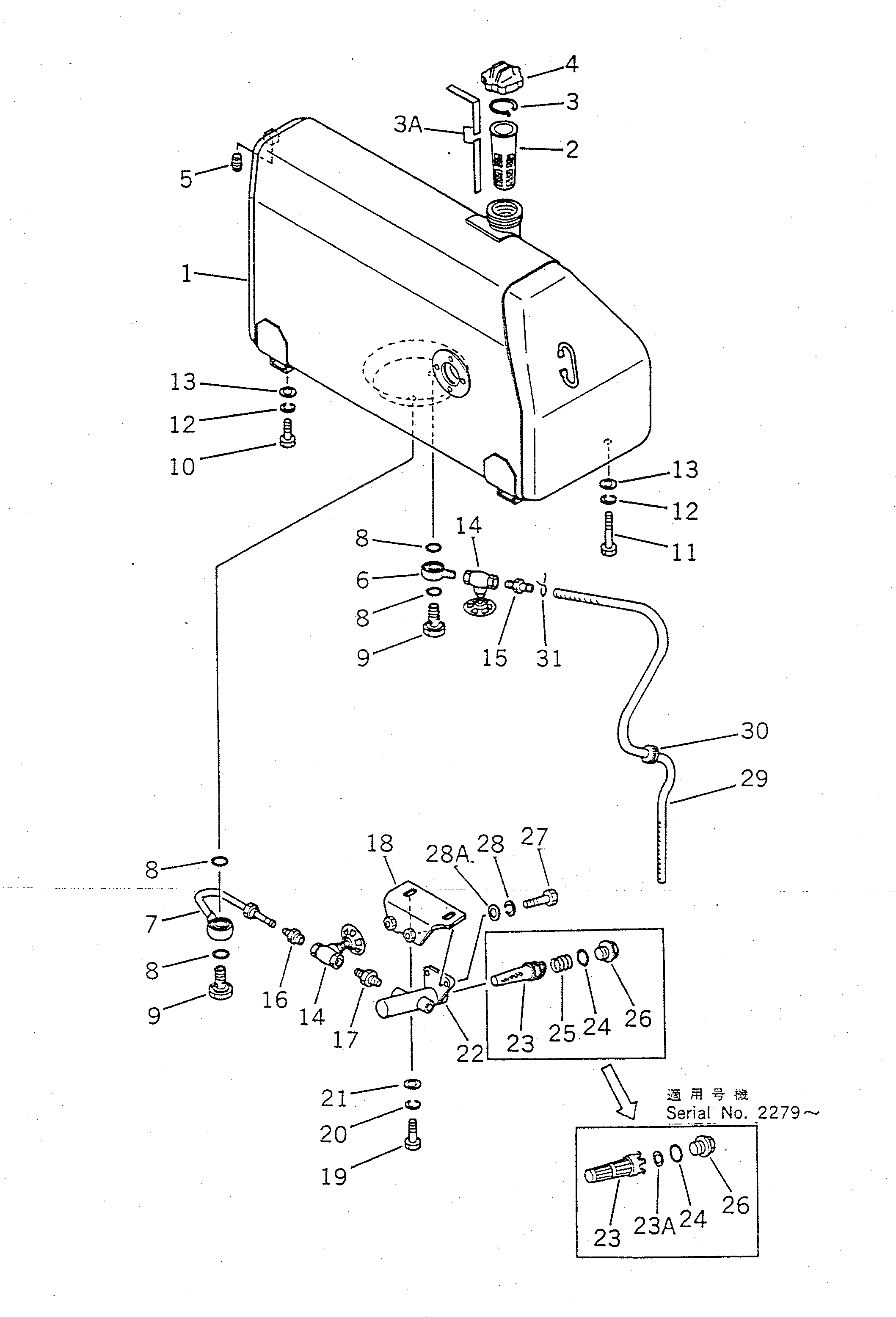

| |$0 | 155-04-00016 | FUEL TANK ASS'Y | |
| |$1 | 155-04-00015 | FUEL TANK ASS'Y | |
| 1 | TANK,FUEL | ||
| 2 | 07056-18416 | STRAINER | |
| 3 | 07057-04087 | RING | |
| 3A | 154-04-31130 | GAUGE | |
| 4 | 07050-41200 | CAP | |
| 4 | 07050-00000 | CAP,(FOR SLAG HANDLING) | |
| 5 | 07042-00108 | PLUG | |
| 6 | 195-04-11230 | JOINT | |
| 7 | 155-04-11271 | TUBE | |
| 8 | 07000-03035 | O-RING | |
| 9 | 195-04-11280 | BOLT | |
| 10 | 01010-32060 | BOLT | |
| 11 | 01010-32075 | BOLT | |
| 12 | 01602-02060 | WASHER,SPRING | |
| 13 | 01643-32060 | WASHER | |
| 14 | 07700-20504 | VALVE | |
| 15 | 154-04-12480 | NIPPLE | |
| 16 | 07213-51521 | CONNECTOR | |
| 17 | 154-04-11150 | NIPPLE | |
| 18 | 155-04-11211 | BRACKET | |
| 19 | 01010-31225 | BOLT | |
| 20 | 01602-01236 | WASHER,SPRING | |
| 21 | 01643-31232 | WASHER | |
| |$25 | 07058-20000 | FILTER ASS'Y | |
| |$26 | 07058-00000 | STRAINER ASS'Y | |
| 22 | 07058-00001 | CASE | |
| 23 | 07058-00005 | ELEMENT | |
| 23 | 07058-00002 | STRAINER | |
| 23A | 07058-00006 | RING | |
| 24 | 07002-04234 | O-RING | |
| 25 | 07058-00003 | SPRING | |
| 26 | 07058-00007 | PLUG | |
| 26 | 07058-00004 | PLUG | |
| 27 | 01010-30825 | BOLT | |
| 28 | 01602-00825 | WASHER,SPRING | |
| 28A | 01643-30823 | WASHER | |
| 29 | 07270-01295 | TUBE | |
| 29 | 07270-31295 | TUBE,(FOR SLAG HANDLING) | |
| 30 | 08037-01610 | GROMMET | |
| 31 | 154-04-12460 | CLAMP |
