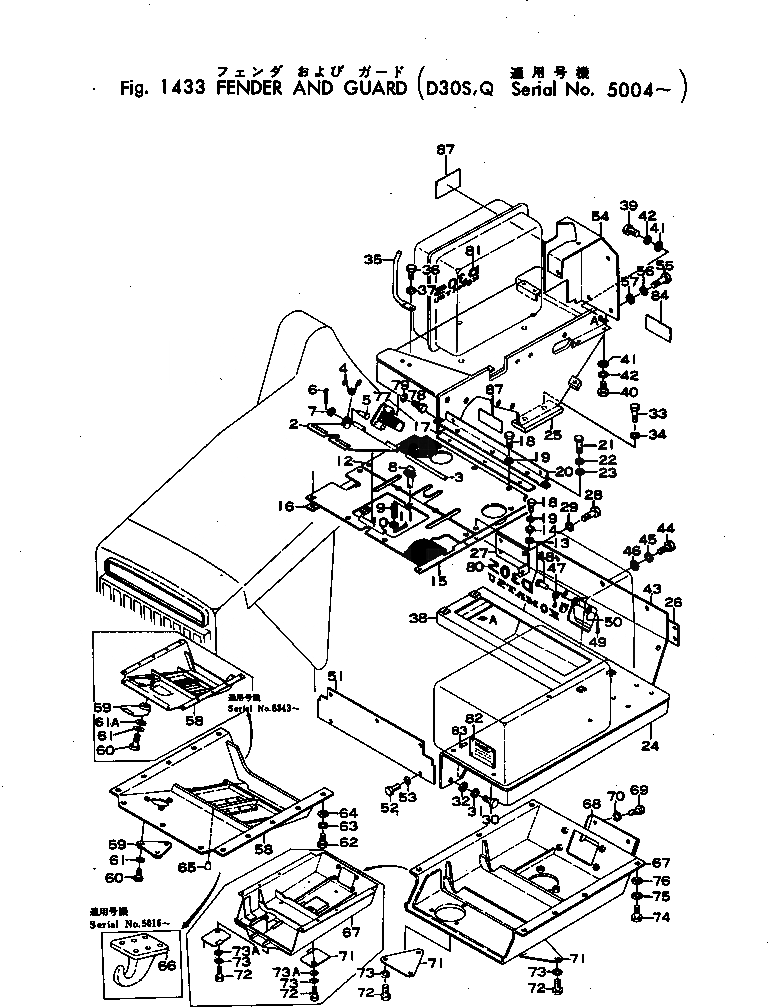

Запчасти крыло и части корпуса погрузчики гусеничные d30s-12 s/n 5004-up Komatsu

\|1	111-54-00031	FLOOR ASS'Y
\|1	111-54-00030	FLOOR ASS'Y
1	111-54-11286	PLATE
\|1	111-54-11285	PLATE
\|1	111-54-11284	PLATE
\|1	111-54-11283	PLATE
2	111-54-11291	COVER
3	111-54-11310	PIN
4	120-54-12210	SPRING
5	04205-00616	PIN
6	04050-01610	PIN
7	01641-20608	WASHER
8	140-54-13150	LOCK
9	131-57-11140	SPRING
10	01642-21016	WASHER
11	04050-03015	PIN
12	111-54-11324	PLATE
\|12	111-54-11323	PLATE
13	111-54-11660	CUSHION
14	111-54-11670	GUIDE
15	111-54-11680	CUSHION
16	111-54-11690	CUSHION
17	111-54-11710	CUSHION
18	01040-31225	BOLT
\|18	01040-31235	BOLT
19	01602-01236	WASHER
20	111-54-11520	FRAME
21	01040-31225	BOLT
22	01602-01236	WASHER
23	01643-01232	WASHER
24	111-54-11365	FENDER
\|24	111-54-11364	FENDER
25	111-54-11375	FENDER
\|25	111-54-11374	FENDER
26	111-54-11611	COVER
27	111-54-11621	BRACKET
28	01040-31020	BOLT
29	01602-01030	WASHER
30	01040-31230	BOLT
31	01602-01236	WASHER
32	01643-01232	WASHER
33	01040-32050	BOLT
34	01602-02060	WASHER
35	111-54-11550	GRIP
36	01040-31030	BOLT
37	01602-01030	WASHER
38	111-54-11532	FRAME
39	01040-31235	BOLT
40	01040-31230	BOLT
41	01643-01232	WASHER
42	01602-01236	WASHER
43	111-54-11434	COVER
44	01040-31225	BOLT
45	01602-01236	WASHER
46	01643-01232	WASHER
47	120-54-12210	SPRING
48	04205-00616	PIN
49	04050-01610	PIN
50	01641-20608	WASHER
51	111-54-11351	PLATE
52	01040-31225	BOLT
53	01602-01236	WASHER
54	111-54-11651	COVER
\|54	111-54-11650	COVER
55	01040-31025	BOLT
56	01602-01030	WASHER
57	01643-01032	WASHER
\|58	111-54-00041	FRONT COVER ASS'Y
\|58	111-54-00040	FRONT COVER ASS'Y
58	111-54-11223	COVER
\|58	111-54-11222	COVER
\|58	111-54-11221	COVER
59	111-54-11231	COVER
\|59	111-54-11230	COVER
60	01040-31225	BOLT
\|60	01040-31225	BOLT
61	01602-01236	WASHER
\|61	01602-01236	WASHER
61A	01641-01223	WASHER
62	01040-31230	BOLT
\|62	01040-31225	BOLT
63	01602-01236	WASHER
64	01643-01232	WASHER
65	07049-01620	PLUG
66	110-74-12110	HOOK
\|67	111-54-00051	REAR COVER ASS'Y
\|67	111-54-00050	REAR COVER ASS'Y
67	111-54-11253	COVER
\|67	111-54-11252	COVER
68	112-54-21440	COVER
69	01040-31225	BOLT
70	01602-01236	WASHER
71	112-54-21431	COVER
\|71	112-54-21430	COVER
72	01040-31225	BOLT
\|72	01040-31225	BOLT
73	01602-01236	WASHER
\|73	01602-01236	WASHER
73A	01640-01223	WASHER
74	01040-31230	BOLT
75	01602-01236	WASHER
76	01643-01232	WASHER
77	111-54-11461	REST
78	01040-31230	BOLT
79	01602-01236	WASHER
80	09692-03303	PLATE¤ MARK
\|80	09692-03306	PLATE¤ MARK
81	09691-02303	PLATE¤ MARK
\|81	09691-02306	PLATE¤ MARK
82	09600-01635	PLATE¤ NAME,(LIMITED SUPPLY)
83	04418-03060	SCREW
84	09652-00100	PLATE¤ CAUTION,FUEL TANK
85	09654-00060	PLATE¤ SAFETY,STARTING AND LEAVING SEAT
86	09655-00120	PLATE¤ INSTRUCTION,HYDRAULIC OIL FILTER
87	09682-00063	PLATE¤ OPERATING,DECOMPRESSION LEVER
