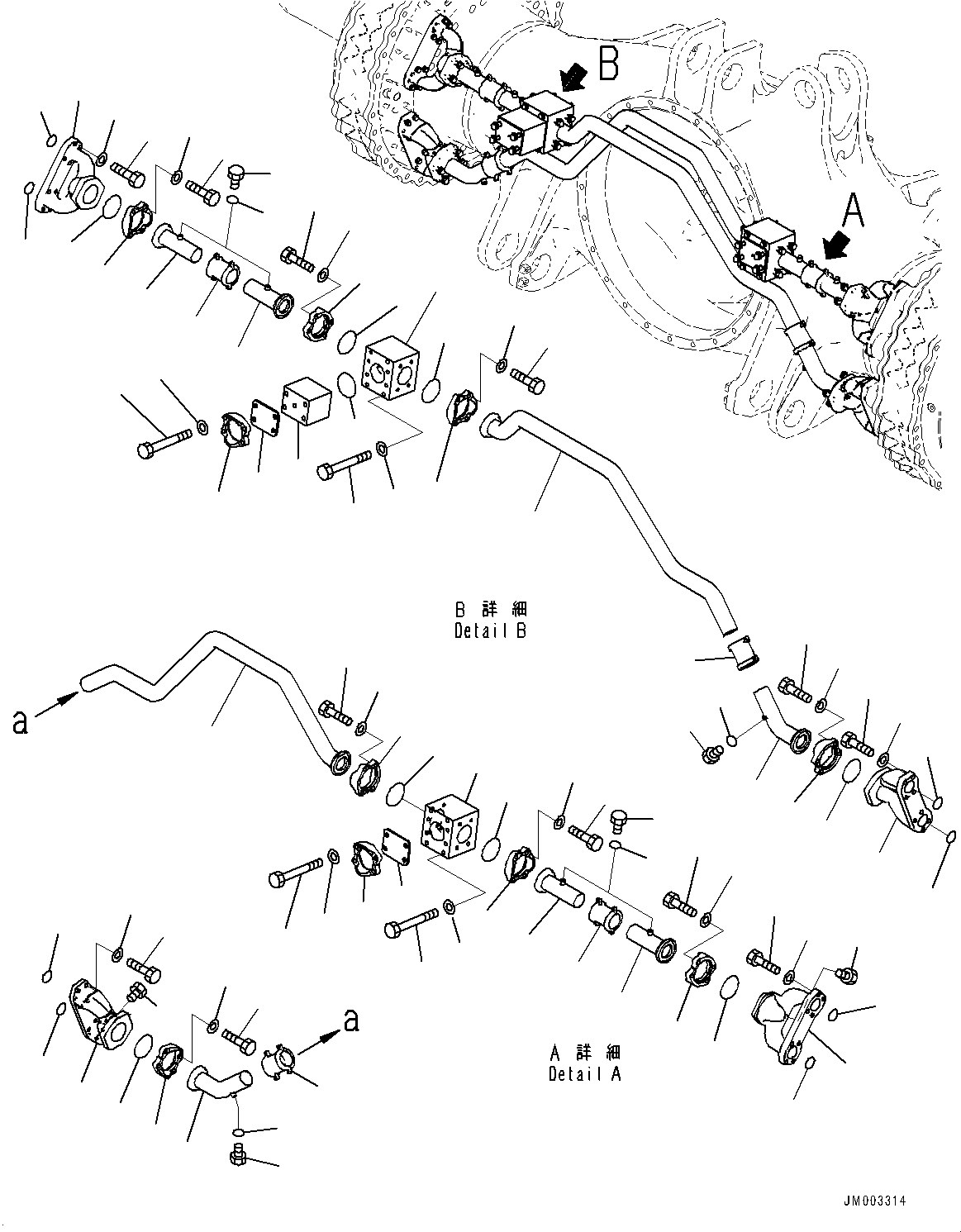

Запчасти задн. мост, линия охлажд-я тормозов (№88-) самосвалы hd1500-7 s/n 80138-up (chassis only) Komatsu



1 562-61-31910 Block
2 01643-31232 Washer
3 01011-81270 Bolt
4 562-61-31561 Tube
4 562-61-31560 Tube
5 AHWB1011 O-ring
6 07040-11007 Plug
7 07002-21023 O-ring
8 AHVL9963 Flange
9 01643-51645 Washer
10 02010-71044 Bolt, Unified
11 AHPB3072 Joint
12 AHEJ0339 Tee
13 287-35-11470 Plug
14 AHWA3206 O-ring
15 01643-51232 Washer
16 02010-70838 Bolt, Unified
17 562-61-31571 Tube
17 562-61-31570 Tube
18 AHWB1011 O-ring
19 07040-11007 Plug
20 07002-21023 O-ring
21 AHVL9963 Flange
22 01643-51645 Washer
23 02010-71044 Bolt, Unified
24 562-61-31580 Tube
25 562-61-31590 Tube
26 AHWB1011 O-ring
27 AHVL9963 Flange
28 01643-51645 Washer
29 02010-71044 Bolt, Unified
30 AHPB3072 Joint
31 AHPB9680 Valve, Check
32 AHWB1011 O-ring
33 AHWA2707 Cover
34 AHVL9963 Flange
35 01643-51645 Washer
36 02011-71078 Bolt, Unified
37 AHWA2707 Cover
38 AHVL9963 Flange
39 01643-51645 Washer
40 02010-71044 Bolt, Unified
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
26
27
4
5
7
8
10
9
14
12
15
16
14
14
22
23
28
29
30
37
38
39
40
13
23
22
15
16
12
14
14
17
18
19
20
21
25
31
32
33
34
35
36
26
30
29
28
27
2
3
5
7
4
4
5
6
8
9
10
11
8
9
10
12
16
15
1
14
14
