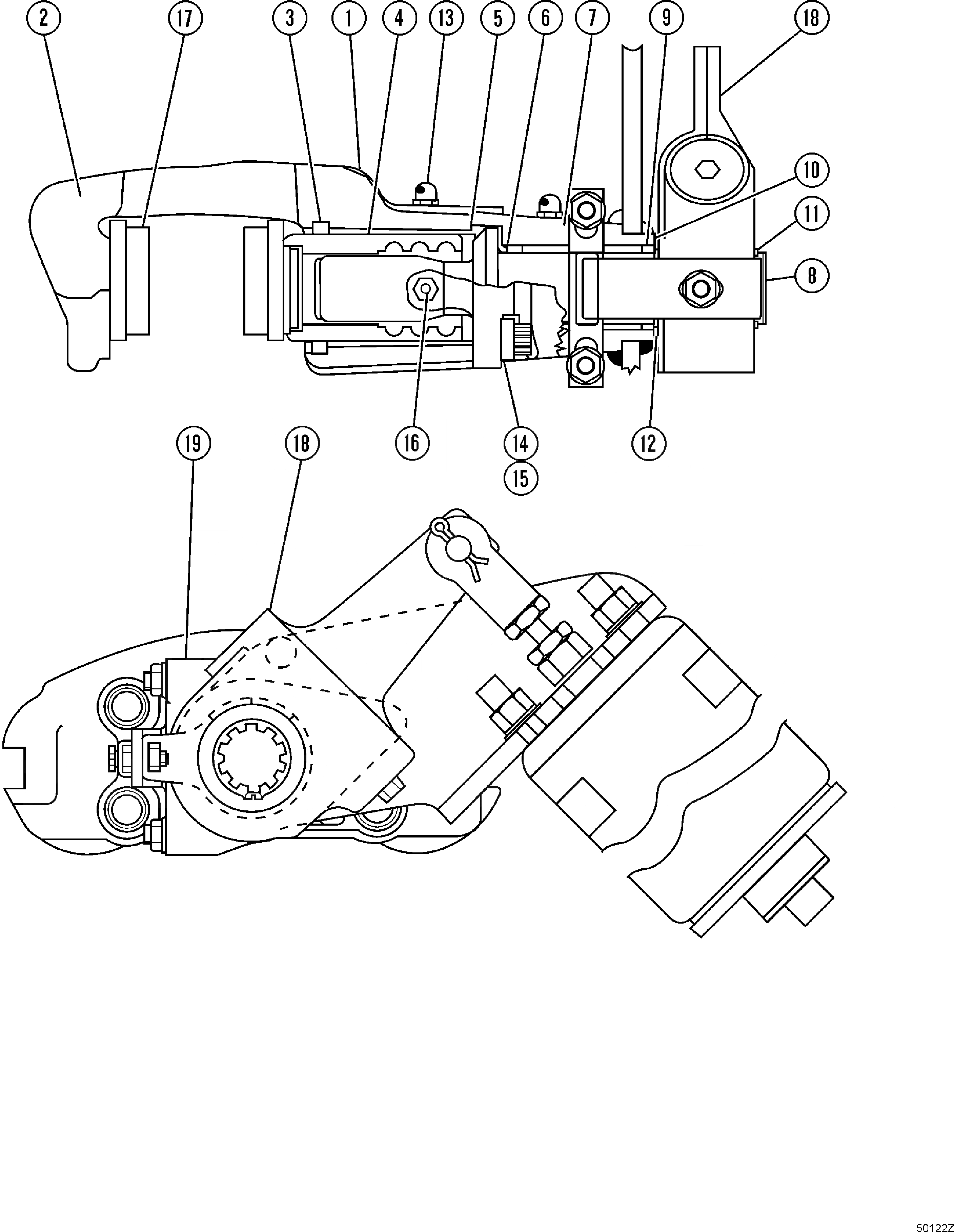

| |$0 | AHPB9221 | Parking Brake Assembly | |
| 1 | AHBF3288 | Brake Assembly | |
| 2 | AHVE7696 | Housing | |
| 3 | AHVE7697 | Packing,Kit | |
| 4 | AHBF3291 | Piston Assembly | |
| 5 | Gasket,Kit | ||
| 6 | Bearing, Thrust,Kit | ||
| 7 | AHBF3292 | Cap Assembly | |
| 8 | AHBF3293 | Screw | |
| 9 | Packing,Kit | ||
| 10 | Washer | ||
| 11 | Ring | ||
| 12 | Washer,Kit | ||
| 13 | AHBF3294 | Fitting, Grease | |
| 14 | Washer,Kit | ||
| 15 | Bolt | ||
| 16 | Fitting,Kit | ||
| 17 | 561-34-61110 | Pad | |
| 18 | AHPB3289 | Slack Adjuster | |
| 19 | AHBF3290 | Bracket Assembly | |
| 19 | AHBF3295 | Service Kit |
