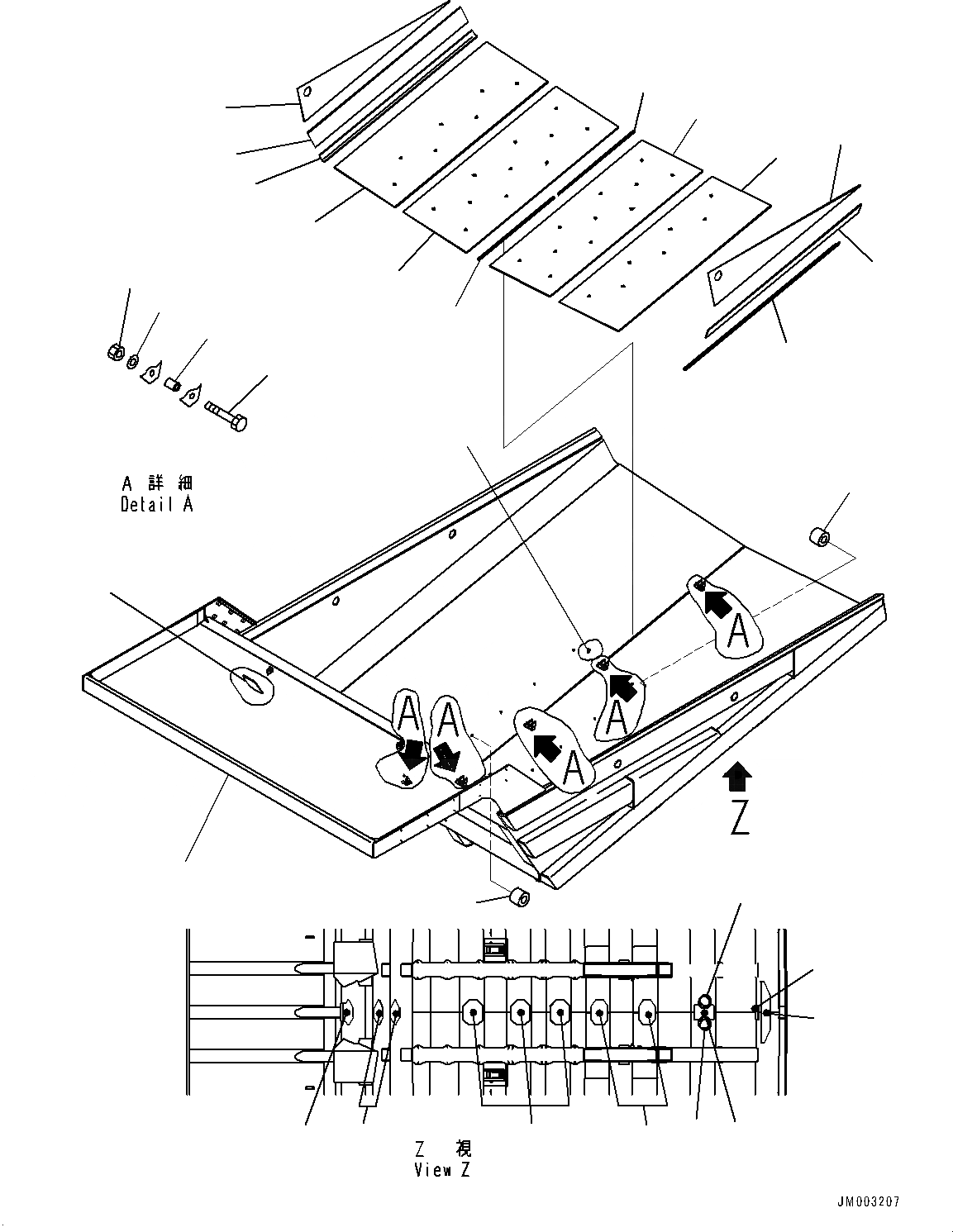

Запчасти кузов (№-) самосвалы hd785-7 s/n 30430-up (for new caledonia) Komatsu



1 561-74-8B101 Body Subassembly
2 561-84-81160 Plate,Welded
3 561-84-82321 Plate,Welded
3 561-84-82320 Plate,Welded
4 561-83-6AU10 Bar,Welded
5 561-83-85J60 Plate,Welded
6 561-83-85K60 Plate,Welded
7 561-83-85K70 Plate,Welded
8 561-83-85K80 Plate,Welded
9 561-83-85K90 Plate,Welded
10 01571-01016 Seat, Welded
11 01573-20205 Seat, Welded
12 561-83-84N90 Plate,Welded
13 561-83-69450 Plate,Welded
14 561-74-8BU40 Plate,Welded
15 561-74-8BU20 Plate,Welded
16 561-74-8BU30 Plate,Welded
17 561-83-69481 Plate,Welded
18 561-74-8BU10 Plate,Welded
19 581-74-11630 Tube
20 01011-82010 Bolt
21 01643-32060 Washer
22 01580-12016 Nut
1
19
20
21
22
4
5
5
4
6
6
7
7
9
8
8
9
14
13
15
18
16
12
17
11
10
10
3
2
2
