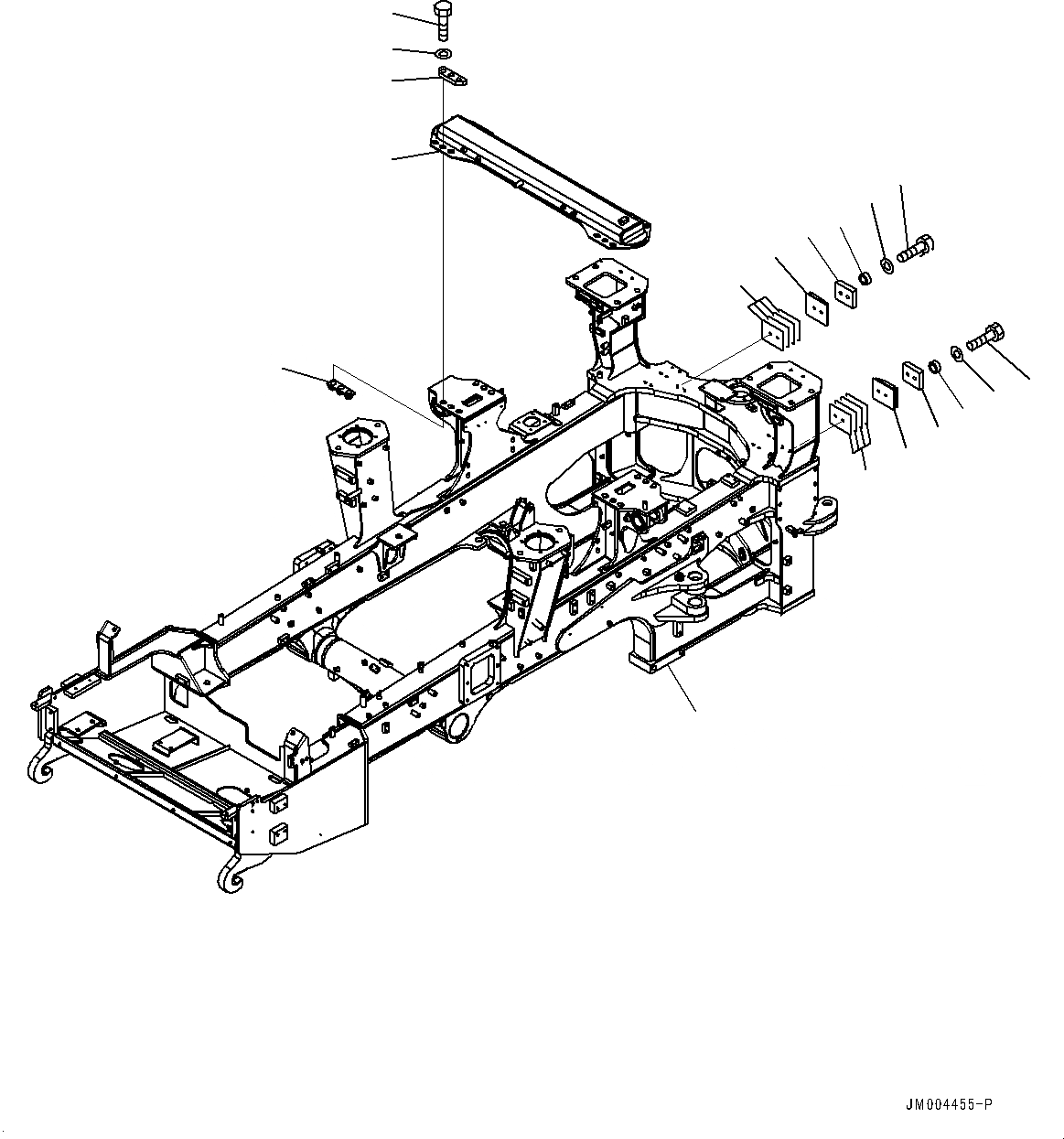

| 1 | 56B-46-3A201 | Seat Assembly, Front Frame | |
| 2 | 56B-46-3A330 | Member | |
| 3 | 56B-46-11Q50 | Plate | |
| 4 | 01010-82480 | Bolt | |
| 5 | 01643-32460 | Washer | |
| 6 | 56B-46-11220 | Plate | |
| 7 | 56C-46-11610 | Bumper | |
| 8 | 56B-46-11650 | Bracket | |
| 9 | 07372-21250 | Bolt | |
| 10 | 01643-31232 | Washer | |
| 11 | 424-54-14230 | Spacer | |
| 12 | 56C-46-11621 | Shim, T=1.6mm | |
| 12 | 56C-46-11631 | Shim, T=1.0mm |
