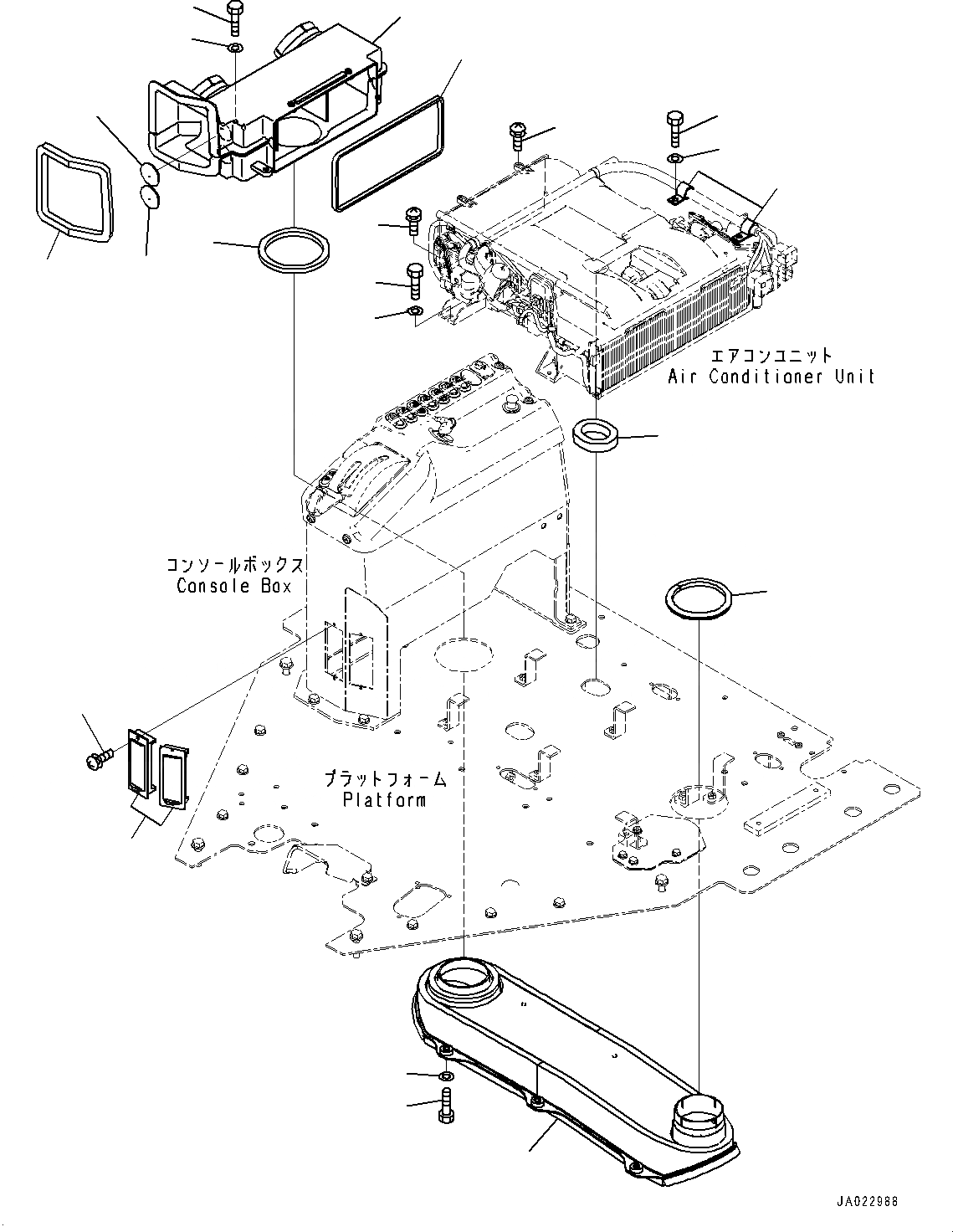

| 1 | 01010-80820 | Bolt | |
| 2 | 01643-30823 | Washer | |
| 3 | 23B-54-85310 | Sheet | |
| 4 | 04434-51910 | Clip | |
| 4 | 23B-54-82522 | Duct | |
| 4 | 23B-54-82521 | Duct | |
| 5 | Duct | ||
| 5 | Duct | ||
| 6 | 23B-54-82450 | Sheet | |
| 7 | 23B-54-82460 | Sheet | |
| 8 | 23B-54-82670 | Sheet | |
| 9 | 01023-10520 | Screw | |
| 10 | 01023-10516 | Screw | |
| 11 | 01010-80820 | Bolt | |
| 12 | 01643-30823 | Washer | |
| 13 | 23B-54-82531 | Duct | |
| 14 | 01010-80830 | Bolt | |
| 15 | 01643-30823 | Washer | |
| 16 | 23B-54-82440 | Grommet | |
| 17 | 17A-Z11-7161 | Louver | |
| 18 | 01023-20416 | Screw | |
| 19 | 01010-D1020 | Bolt | |
| 20 | 01643-71032 | Washer | |
| 21 | 14X-54-18150 | Cap |
