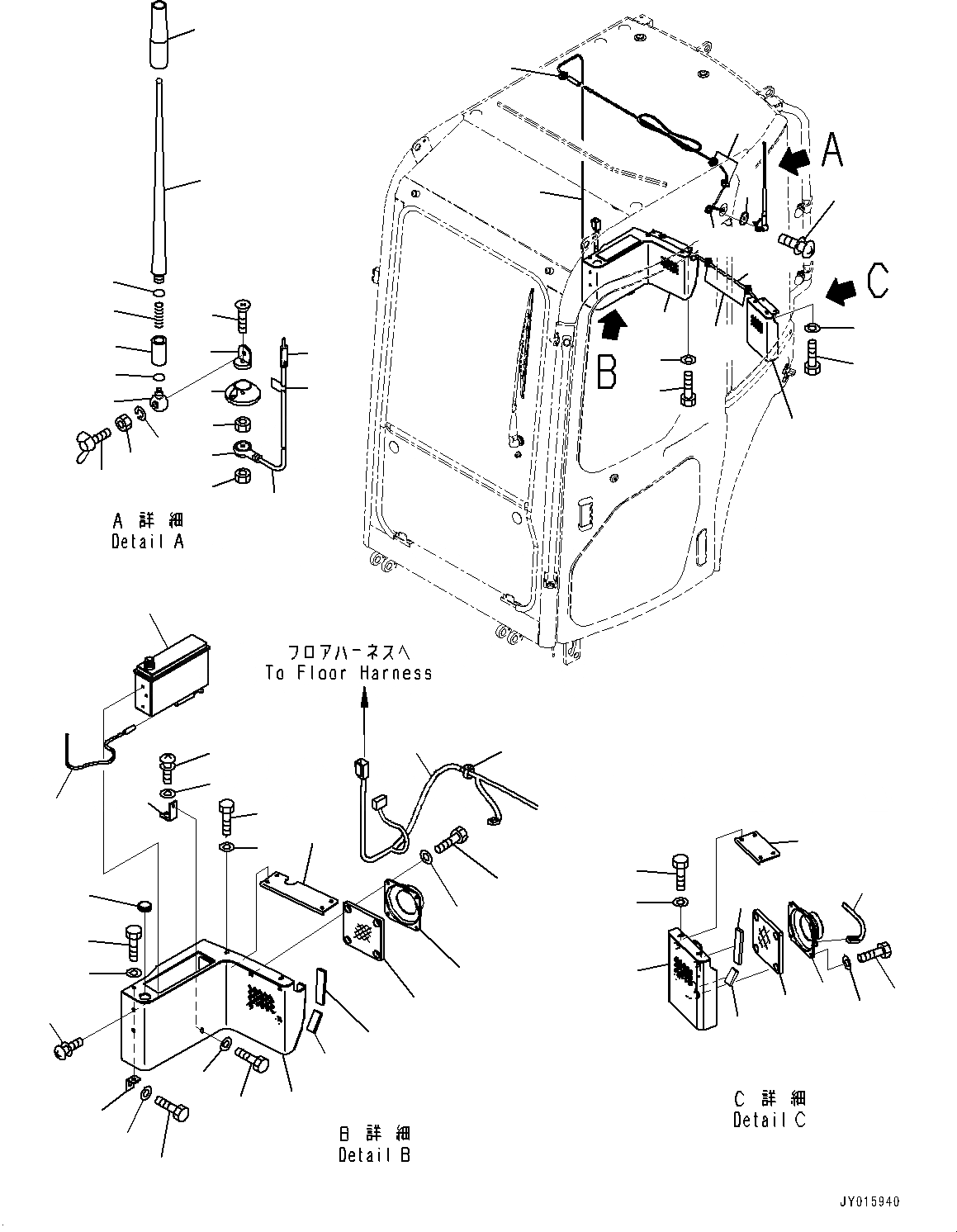

Запчасти радио (№-) экскаваторы pc55mr-3 s/n 15001-up Komatsu



1 22M-54-24961 Plate
2 01023-20412 Screw
2 20Y-06-41990 Antenna
3 RFU419B-418-A Rod
4 Holder
5 RFU419B-418-D Bolt, Wing
6 RFU419B-418-E Base
7 Holder
8 RFU419B-418-B Washer, Spring
9 RFU419B-418-C Nut
10 Screw
11 Holder
12 Holder Assembly
13 Spring
14 O-ring
15 Tube
16 O-ring
17 REU419B-418-C Nut
18 RFU419B-418-F Cable
19 Plate
20 Plug
21 08037-10610 Grommet
22 20Y-54-51220 Clip
23 08912-51600 Cord
24 22F-54-35820 Cover
25 22F-54-35830 Bracket
26 01010-D0616 Bolt
27 01643-70623 Washer
28 22F-54-35840 Plate
29 01010-D0616 Bolt
30 01643-70623 Washer
31 22M-54-23880 Plate
32 01023-10820 Screw
33 01643-70823 Washer
34 22F-54-35810 Cover
35 22M-54-23890 Bracket
36 01010-D0616 Bolt
37 01643-70623 Washer
38 22M-54-23910 Sheet
39 22F-54-35850 Sheet
40 22F-54-35860 Sheet
41 08910-10000 Speaker
42 22M-54-25960 Spacer
42 22M-54-25970 Spacer
42 22M-54-25980 Sheet
43 01010-80612 Bolt
44 01643-30623 Washer
45 22M-06-24411 Wiring Harness
46 20Y-54-51220 Clip
47 207-06-71734 Radio
48 01023-10510 Screw
49 09415-01610 Cap
1
2
21
22
23
24
45
46
22
27
37
26
36
34
27
34
35
38
40
41
42
44
45
24
25
26
28
30
31
32
33
38
39
41
42
44
45
46
48
49
26
29
26
27
27
37
36
43
23
43
47
9
17
15
10
9
8
7
6
5
4
11
12
13
14
3
16
18
19
20
