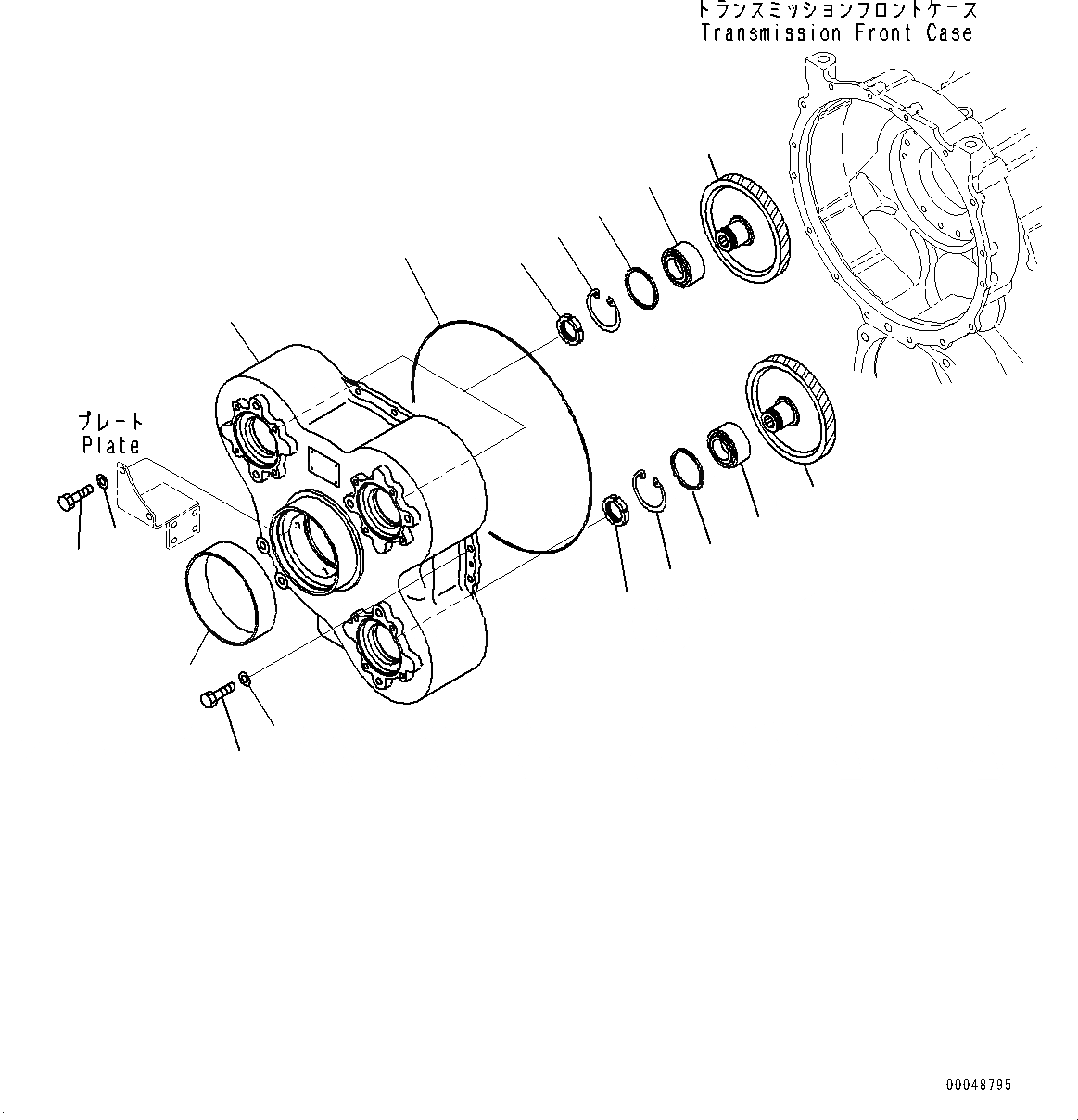

| |$0 | 56B-13-20004 | Transmission Assembly | |
| 1 | 566-13-83131 | Housing | |
| 2 | 566-13-83381 | Bushing | |
| 3 | 566-13-43140 | O-ring, (Kit : K02) | |
| 4 | 56B-13-14210 | Gear | |
| 5 | 711-35-14230 | Bearing | |
| 6 | 711-35-14120 | Plate | |
| 7 | 04065-09530 | Ring, Snap | |
| 8 | 01530-04812 | Nut, Lock | |
| 9 | 01010-81235 | Bolt | |
| 10 | 01643-31232 | Washer | |
| 11 | 01010-81245 | Bolt | |
| 12 | 01643-31232 | Washer | |
| 13 | 56B-13-14210 | Gear | |
| 14 | 711-35-14230 | Bearing | |
| 15 | 711-35-14120 | Plate | |
| 16 | 04065-09530 | Ring, Snap | |
| 17 | 01530-04812 | Nut, Lock |
