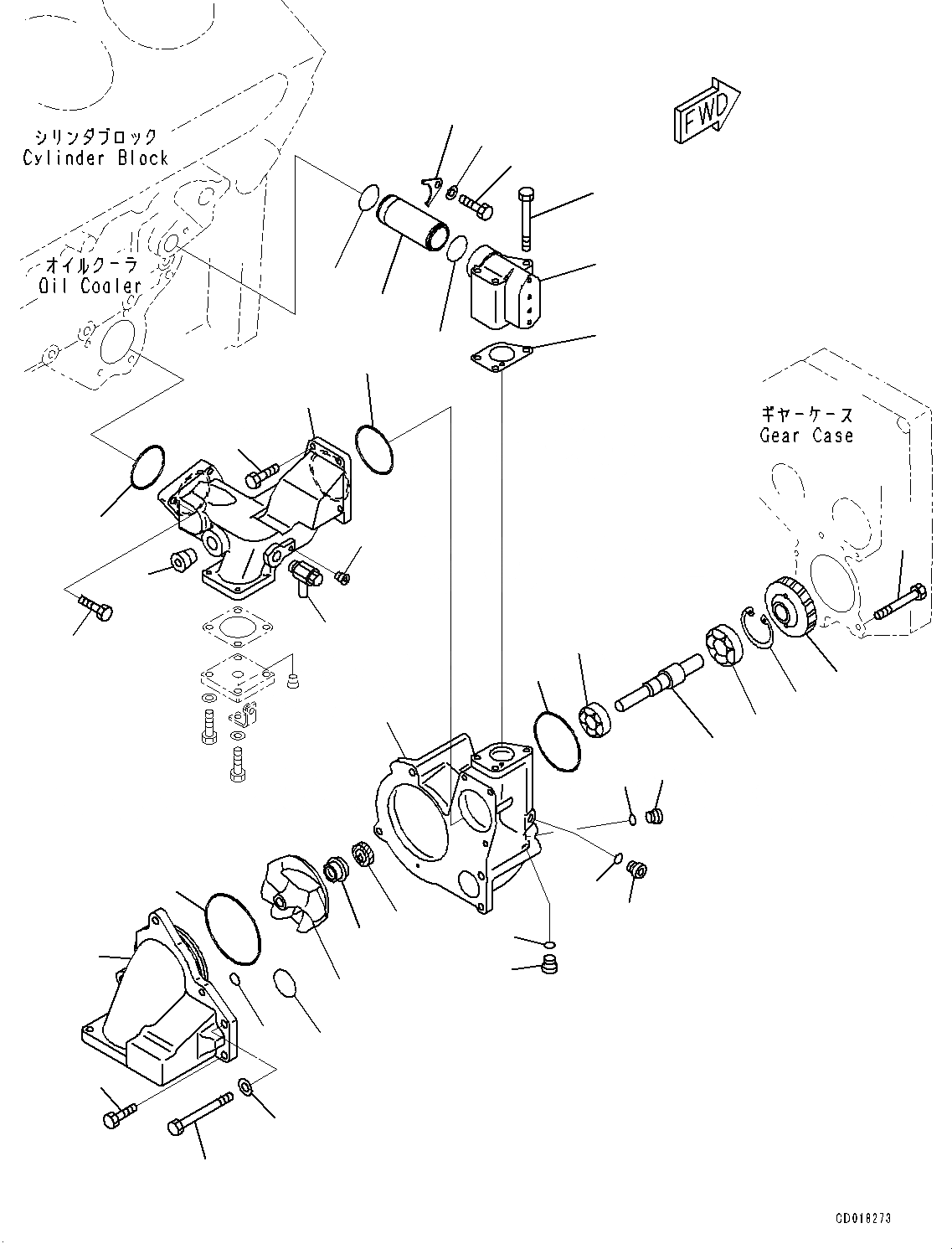

| |$0 | 6219-61-1101 | Water Pump Assembly | |
| |$1 | 6219-61-1100 | Water Pump Assembly | |
| 1 | 6219-61-1331 | Body | |
| 1 | 6219-61-1330 | Body | |
| 2 | 6219-61-1470 | Impeller | |
| 3 | 6219-61-1230 | Shaft | |
| 4 | 6215-61-1160 | Gear | |
| 5 | 6166-61-1511 | Seal | |
| 6 | 6150-61-1510 | Seal, Oil | |
| 7 | 06330-06206 | Bearing, Ball | |
| 8 | 06340-06306 | Bearing, Ball | |
| 9 | 6162-63-1440 | Ring, Snap | |
| 10 | 6215-81-9520 | Plug | |
| 11 | 6215-81-9720 | O-ring | |
| 12 | 6219-61-1120 | Housing | |
| 13 | 07000-G2140 | O-ring | |
| 14 | 07000-A2060 | O-ring | |
| 15 | 07000-A2016 | O-ring | |
| 16 | 6215-81-9520 | Plug | |
| 17 | 6215-81-9720 | O-ring | |
| 18 | 01010-81230 | Bolt | |
| 19 | 07000-72100 | O-ring | |
| 20 | 01011-81265 | Bolt | |
| 21 | 01643-31232 | Washer | |
| 22 | 01011-81210 | Bolt | |
| 23 | 6215-61-7510 | Connector | |
| 24 | 01011-81010 | Bolt | |
| 25 | 6215-61-6531 | Gasket | |
| 26 | 6215-61-7521 | Pipe | |
| 27 | 6215-61-6520 | Plate | |
| 28 | 01010-81020 | Bolt | |
| 29 | 01643-31032 | Washer | |
| 30 | 07000-G3045 | O-ring | |
| 31 | 6219-61-7110 | Connector | |
| 32 | 07000-G2080 | O-ring | |
| 33 | 07000-G2090 | O-ring | |
| 34 | 07043-70617 | Plug | |
| 35 | 07043-70108 | Plug | |
| 36 | 07730-50004 | Valve, Drain | |
| 37 | 01010-81040 | Bolt | |
| 38 | 01010-81030 | Bolt |
