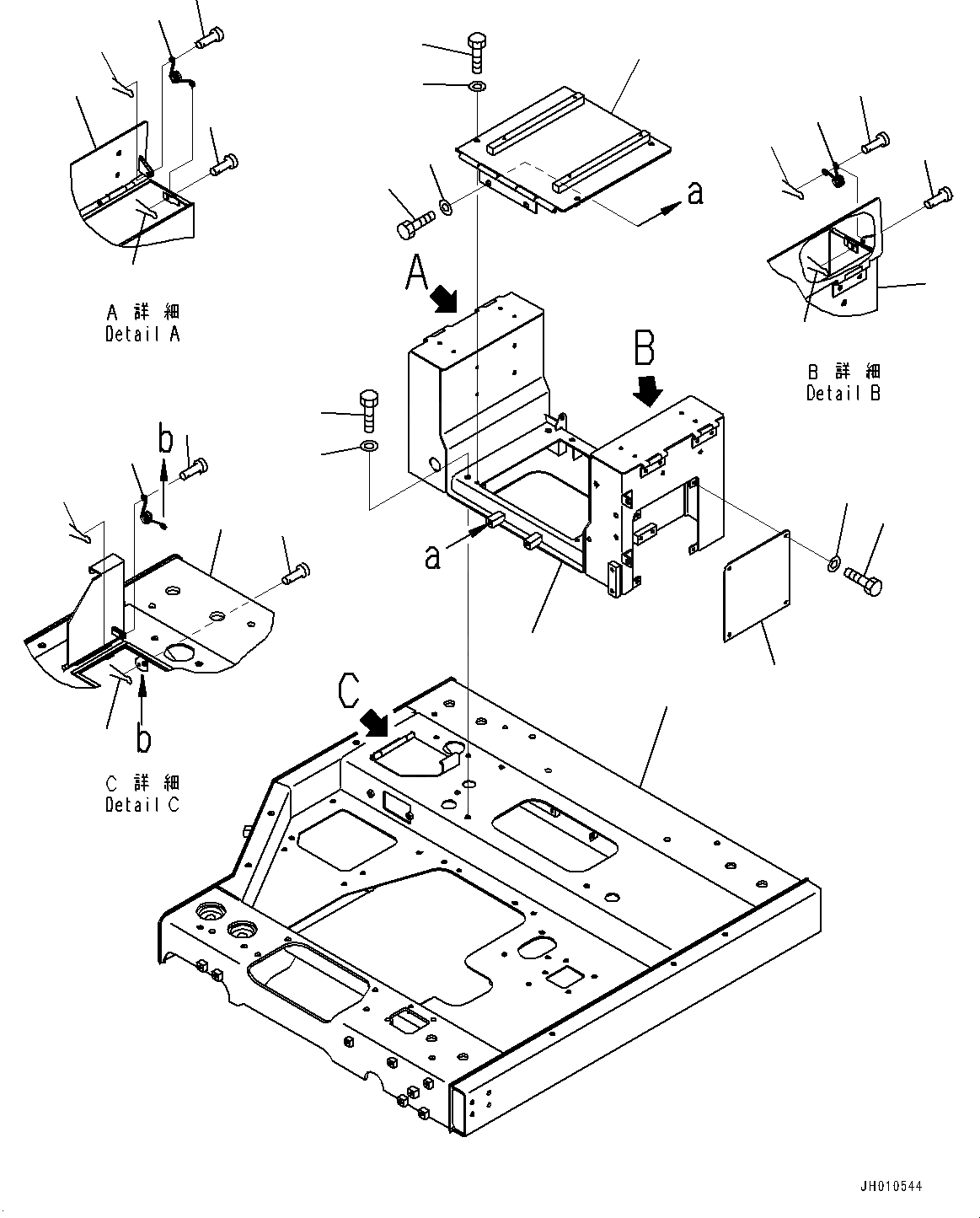

| 1 | 196-54-51112 | Floor | |
| 2 | 09463-00002 | Spring | |
| 3 | 04205-10618 | Pin | |
| 4 | 04050-11610 | Pin, Cotter | |
| 5 | 176-57-41152 | Cover | |
| 6 | 01010-81225 | Bolt | |
| 7 | 01643-31232 | Washer | |
| 8 | 01010-81230 | Bolt | |
| 9 | 01643-31232 | Washer | |
| 10 | 09463-00002 | Spring | |
| 11 | 09463-00006 | Spring | |
| 12 | 04205-10616 | Pin | |
| 13 | 04050-11610 | Pin, Cotter | |
| 14 | 196-54-51132 | Case | |
| 15 | 01010-81485 | Bolt | |
| 16 | 01643-31445 | Washer, Flat | |
| 17 | 196-57-51110 | Cover | |
| 18 | 01010-80820 | Bolt | |
| 19 | 01643-30823 | Washer |
