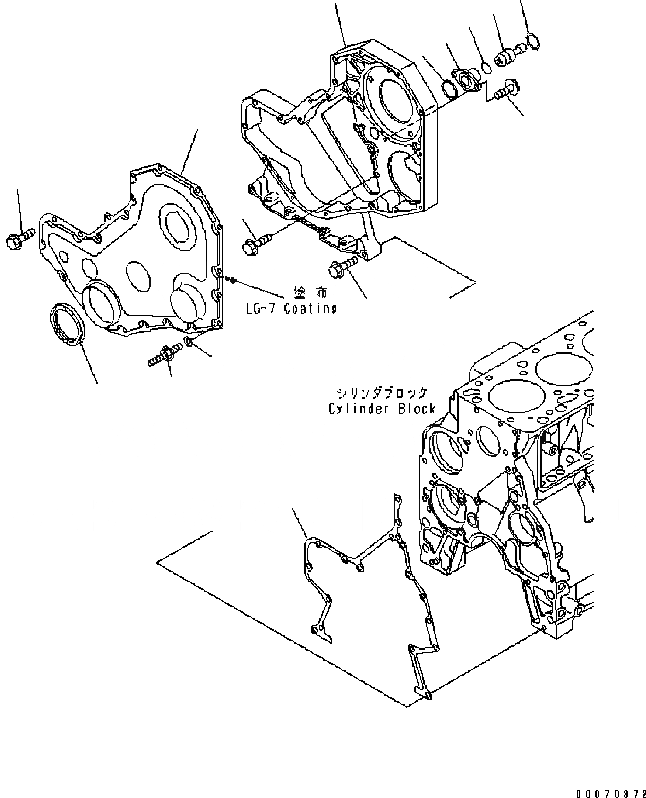

Запчасти передн. cover двигатели engine saa6d102e-22a-8 s/n 30379917-up Komatsu



1 01643-30823 WASHER, PLAIN
2 6732-21-3990 STUD
3 6738-22-3110 BOLT
|3 6736-21-3210 BOLT
4 6732-21-3160 BOLT
5 6732-21-3140 PIN, TIMING
6 6732-21-3150 RING, RETAINING
7 6732-21-3870 O-RING, SEAL
8 6732-21-3180 HOUSING, TIMING PIN
9 6732-21-3880 GASKET
10 6736-21-5310 BOLT
11 6742-01-0540 BOLT
|12 6735-21-3140 GEAR COVER ASS'Y
12 6736-21-3310 COVER, GEAR
13 6732-21-3511 SEAL, OIL
14 6732-21-3812 GASKET, GEAR HOUSING
15 6738-21-3110 HOUSING, GEAR
KIT 6735-21-3511 SEAL, OIL
13
2
1
14
3
10
11
12
15
9
8
7
4
5
6
