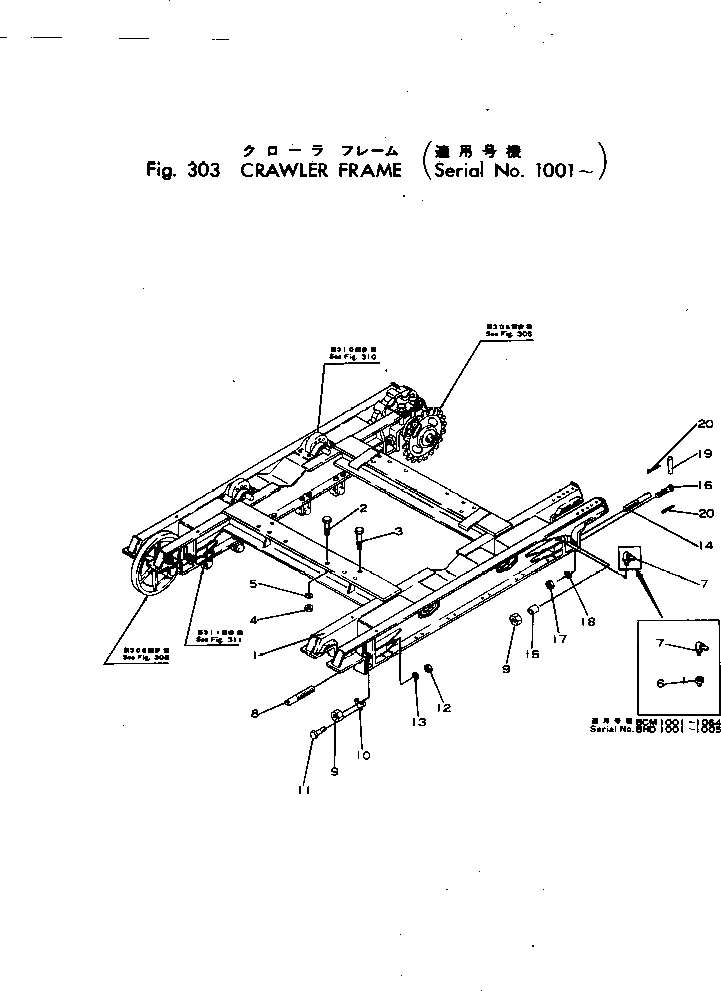

| 1 | 21-851777-41 | FRAME,CRAWLER | |
| |1 | 21-852127-41 | FRAME,CRAWLER | |
| 2 | 21-522246-01 | BOLT,REAMER | |
| 3 | 21-522336-01 | BOLT,REAMER | |
| 4 | 02205-11625 | NUT | |
| |4 | 02205-01625 | NUT | |
| 5 | 01601-02564 | WASHER | |
| 6 | 00200-15250 | BUSHING | |
| 7 | 00570-44510 | FITTING | |
| 8 | 21-520617-01 | BOLT | |
| |8 | 22-402680-01 | BOLT | |
| |8 | 21-520617-01 | BOLT | |
| 9 | 21-520615-01 | NUT | |
| |9 | 22-402803-01 | NUT | |
| |9 | 21-520615-01 | NUT | |
| 10 | 21-520614-01 | LOCK | |
| 11 | 02030-00870 | BOLT | |
| 12 | 02215-00811 | NUT | |
| 13 | 01602-01338 | WASHER | |
| 14 | 21-520616-01 | BOLT | |
| |14 | 22-402805-01 | BOLT | |
| |14 | 21-520616-01 | BOLT | |
| 15 | 21-529718-01 | SPACER | |
| 16 | 21-509873-01 | BOLT | |
| 17 | 02205-01625 | NUT | |
| 18 | 22-400547-01 | WASHER | |
| 19 | 22-400002-01 | PIN | |
| 20 | 04050-05030 | PIN |
