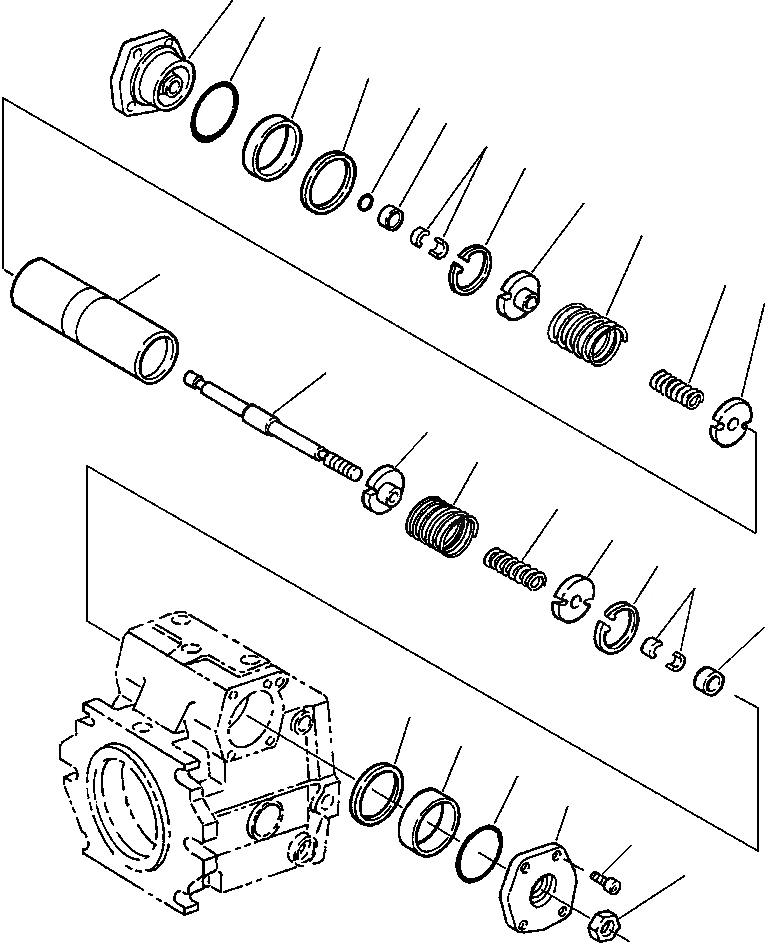

Запчасти all колеса привод насос - гидравл управл-е грейдеры gd530a/aw-2b/2c w/s6d102e s/n 203163-up Komatsu



|$0 1440 314 H91 HYDRAULIC CONTROL
|$1 1438 654 H92 PISTON, POSITIONING ASSEMBLY
1 1440 104 H1 PISTON, POSITIONING
2 1440 103 H1 ROD
3 1440 112 H1 KEEPER, VALVE - 8.00 MM
|$5 1440 111 H1 KEEPER, VALVE - 7.85 MM
|$6 1440 110 H1 KEEPER, VALVE - 7.90 MM
|$7 1440 109 H1 KEEPER, VALVE - 7.95 MM
|$8 1440 108 H1 KEEPER, VALVE - 8.05 MM
|$9 1440 107 H1 KEEPER, VALVE - 8.10 MM
|$10 1440 315 H1 KEEPER, VALVE - 7.75 MM
|$11 1440 316 H1 KEEPER, VALVE - 7.80 MM
|$12 1440 317 H1 KEEPER, VALVE - 8.20 MM
4 1440 113 H1 ASSEMBLY, RING
5 1440 105 H1 COLLAR, SPRING
6 1440 114 H1 SPRING, PRESSURE
7 1440 115 H1 SPRING, PRESSURE
8 1440 318 H1 RING, RETAINING
9 1440 319 H1 O-RING
10 1440 106 H1 COLLAR, SPRING
11 1440 320 H1 COVER
12 1440 321 H1 COVER
13 1440 322 H1 NUT
14 1440 323 H1 BOLT
15 1440 324 H1 O-RING
16 1440 035 H1 RING, GUIDE
17 1440 034 H1 GLYD RING, TURCON
12
15
16
17
9
4
3
8
5
6
1
7
10
2
10
6
7
5
8
3
4
17
16
15
11
14
13
