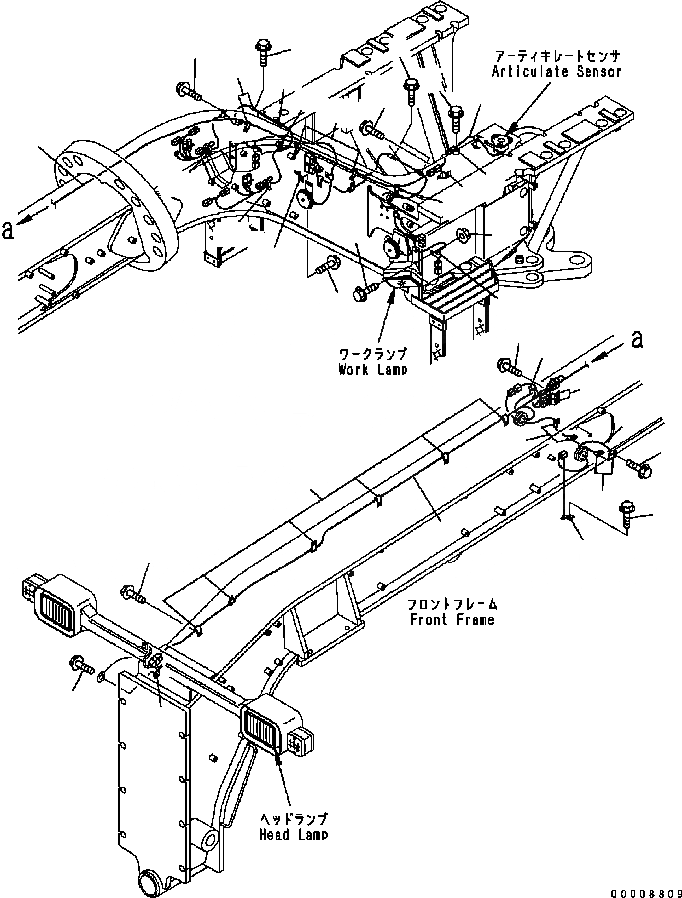

| 1 | 23B-06-41421 | WIRING HARNESS | |
| 2 | 23B-06-41352 | WIRING HARNESS | |
| 3 | 04434-51010 | CLIP | |
| 4 | 01435-01016 | BOLT | |
| 5 | 08193-21012 | CLIP | |
| 6 | 01435-01016 | BOLT | |
| 7 | 01435-01016 | BOLT | |
| 8 | 08193-21012 | CLIP | |
| 9 | 01435-01016 | BOLT | |
| 10 | 04434-51410 | CLIP | |
| 11 | 01435-01016 | BOLT | |
| 12 | 04434-51010 | CLIP | |
| 13 | 01435-01016 | BOLT | |
| 14 | 08034-20519 | BAND {WITHOUT ACCUMULATOR} | |
| 15 | 08193-21012 | CLIP {WITHOUT ACCUMULATOR} | |
| 16 | 01435-01016 | BOLT {WITHOUT ACCUMULATOR} | |
| 17 | 04434-51010 | CLIP | |
| 18 | 01435-01016 | BOLT | |
| 25 | 04434-51010 | CLIP | |
| 26 | 01435-00820 | BOLT | |
| 27 | 01584-00806 | NUT | |
| 28 | 23B-06-41430 | WIRING HARNESS {WITHOUT ACCUMULATOR} | |
| 29 | 04434-51410 | CLIP {WITH ACCUMULATOR} | |
| 30 | 01435-01016 | BOLT {WITH ACCUMULATOR} | |
| 31 | 08193-21012 | CLIP |
