Запчасти генератор (a) погрузчики гусеничные d65s-8 s/n 45001-up Komatsu

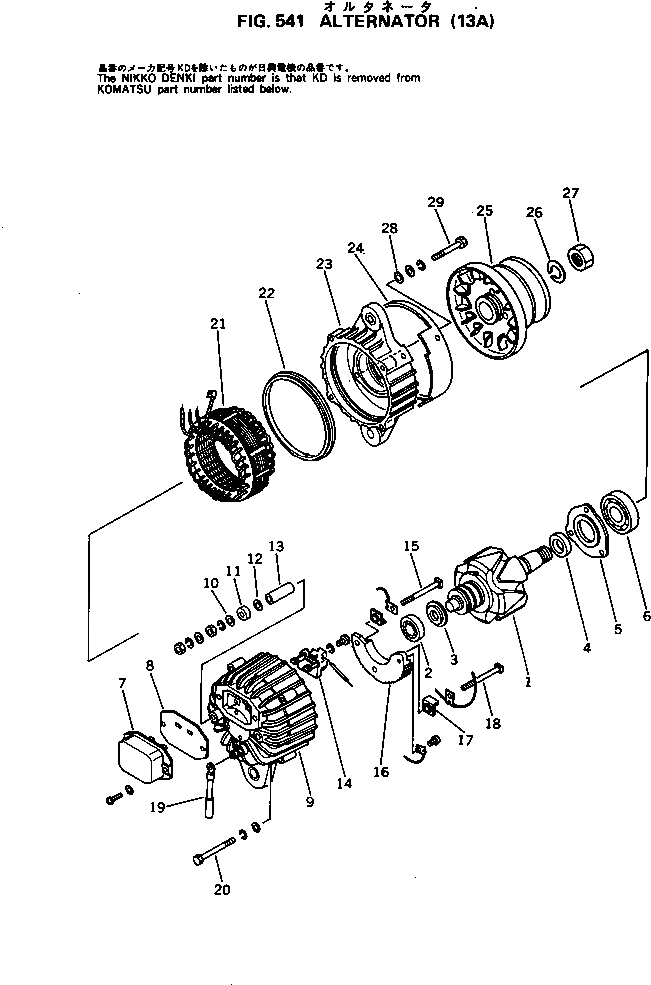

|$0 600-821-3350 ALTERNATOR A. (13A)
|$1 600-821-3370 ALTERNATOR A. (13A),(SANDY AND DUSTY TERRAIN S.)
1 KD7-33100-0120 ROTOR ASS'Y
2 KD1-0452-62027 BEARING,BALL, REAR
3 KD1-33926-0820 RETAINER
4 KD1-33130-0172 SLIP RING ASS'Y
5 KD1-33923-0570 COLLAR
6 KD0-33926-0370 RETAINER
7 KD1-0452-63057 BEARING,BALL, FRONT
8 KD1-44000-0730 REGULATOR ASS'Y
9 KD1-33951-0280 PACKING
|$11 KD0-33700-1960 REAR BRACKET ASS'Y
10 KD1-47921-0710 WASHER
11 KD1-33943-0731 BUSHING,INSULATE
12 KD1-33951-0290 PACKING
13 KD1-33944-0490 TUBE,INSULATE
14 KD1-33720-0792 BRUSH HOLDER ASS'Y
15 KD0-33901-0500 BOLT
16 KD0-33710-1340 BRACKET ASS'Y,REAR
17 KD0-33730-1600 RECTIFIER ASS'Y
18 KD1-33943-0870 BUSHING,INSULATE
19 KD0-33901-0370 BOLT
20 KD1-33785-1390 WIRE,LEAD
21 KD0-0274-06652 BOLT,THROUGH
22 KD1-33200-1000 STATOR ASS'Y
23 KD1-33951-0270 PACKING
24 KD1-33300-0450 FRONT BRACKET ASS'Y
25 KD1-33761-0870 COVER
26 KD0-33400-0730 PULLEY ASS'Y
26 KD0-33400-0732 PULLEY ASS'Y,(SANDY AND DUSTY TERRAIN S.)
27 KD1-0335-18002 WASHER,SPRING
28 KD0-0280-18022 NUT
29 KD1-0345-05001 WASHER,SEAL
30 KD0-0080-05322 BOLT
31 KD7-09210-0230 SEAL ASS'Y,(NOT SHOWN)
