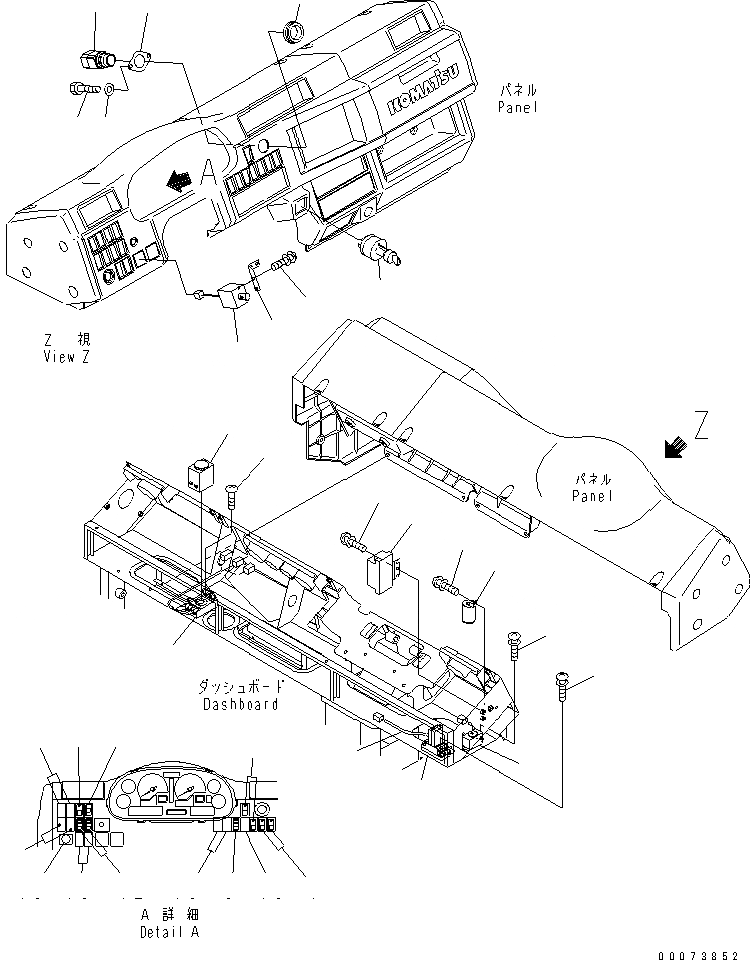

Запчасти кабина панель приборов (электрика) самосвалы hm300-1l s/n a10001-up Komatsu



1 08086-10000 SWITCH,STARTER
|$5 01220-40508 SCREW
|$6 01601-20513 WASHER,SPRING
2 569-54-64250 PLATE
3 568-95-11361 SWITCH,EMERGENCY STEERING
4 56B-06-16810 BUSHING
5 01010-80610 BOLT
6 01643-30623 WASHER
7 23W-05-15850 SWITCH ASS'Y
|$13 23S-05-55810 LAMP ASS'Y
|$14 23S-05-55820 CAP
|$15 08056-00681 CONNECTOR
8 23W-05-15850 SWITCH ASS'Y
|$17 23S-05-55810 LAMP ASS'Y
|$18 23S-05-55820 CAP
|$19 08056-00681 CONNECTOR
9 56B-06-16761 CAP
10 23W-05-15870 SWITCH,LAMP TEST
|$26 23S-05-55830 LAMP ASS'Y
|$27 23S-05-55820 CAP
11 56B-06-16152 BRACKET
12 23W-05-15860 SWITCH,ELECTRIC MONITOR CHANGE
|$30 23S-05-55810 LAMP ASS'Y
|$31 23S-05-55820 CAP
|$32 08056-10881 CONNECTOR
13 569-06-61711 SWITCH,RHEOSTAT
14 01023-20612 SCREW
15 56B-06-16761 CAP
16 09415-01610 CAP
17 569-06-61850 BUZZER,WARNING
18 01023-20416 SCREW
19 512-06-11320 FLASHER
20 01023-20616 SCREW
21 421-06-26220 RELAY,WIPER
22 01023-20616 SCREW
23 56B-06-16750 RELAY,PASSING
24 01023-20312 SCREW
25 582-06-11810 TIMER,AUTO EMERGENCY STEERING
26 582-06-11820 SOCKET
27 01220-30416 SCREW
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
15
15
15
15
16
17
18
19
20
21
22
23
24
25
26
27
