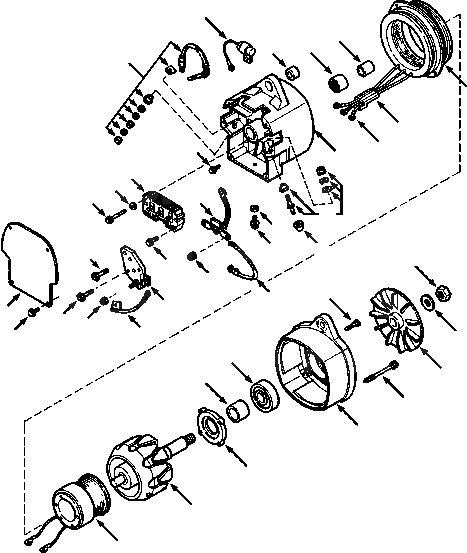

Запчасти генератор 7 amp - v delco-remy двигатели 210m qsk19 engine Komatsu
|
|
|$0 |
1296 910 H91 |
ALTERNATOR ASSY, 75 AMP
|
|
|
1 |
1285 725 H1 |
PLATE, COVER
|
|
|
2 |
1268 363 H1 |
BOLT, MOUNTING
|
|
|
3 |
1213 274 H1 |
CAP, TERMINAL
|
|
|
|$4 |
1285 726 H1 |
HOUSING ASSY, RECTIFIER
|
|
|
4 |
470 233 C1 |
BEARING
|
|
|
5 |
1213 242 H1 |
BUSHING, MOUNTING
|
|
|
6 |
NSS |
HOUSING, RECTIFIER
|
|
|
7 |
470 232 C1 |
BEARING
|
|
|
8 |
585 631 C1 |
RECTIFIER BRIDGE
|
|
|
9 |
1268 366 H1 |
BOLT, MOUNTING
|
|
|
10 |
1268 369 H1 |
WASHER, FLAT
|
|
|
11 |
1285 727 H1 |
DIODE TRIO
|
|
|
12 |
1213 256 H1 |
PACKAGE, TERMINAL
|
|
|
13 |
1285 728 H1 |
CONNECTOR
|
|
|
14 |
1285 729 H1 |
CONNECTOR
|
|
|
15 |
1268 364 H1 |
BOLT, MOUNTING
|
|
|
16 |
1310 184 H1 |
NUT, HEX
|
|
|
17 |
1285 730 H1 |
PACKAGE, OUTPUT TERMINAL
|
|
|
18 |
1218 115 H1 |
REGULATOR
|
|
|
19 |
1268 367 H1 |
BOLT, MOUNTING - INSULATED
|
|
|
20 |
1268 365 H1 |
BOLT, MOUNTING - GROUND
|
|
|
21 |
1432 779 H1 |
CAPACITOR
|
|
|
|$23 |
1296 911 H1 |
STATOR ASSY
|
|
|
22 |
NSS |
STATOR
|
|
|
23 |
NSS |
GROMMET, WIRE
|
|
|
24 |
NSS |
LEAD TERMINAL
|
|
|
25 |
1285 735 H1 |
FIELD COIL AND SUPPORT
|
|
|
26 |
1213 252 H1 |
BOLT, MOUNTING
|
|
|
27 |
1213 260 H1 |
BOLT, GROUND TERMINAL
|
|
|
28 |
120 380 |
WASHER, LOCK - 1/4
|
|
|
29 |
1213 254 H1 |
ROTOR
|
|
|
30 |
1285 736 H1 |
RETAINER, BEARING
|
|
|
31 |
1285 737 H1 |
COLLAR, BEARING
|
|
|
32 |
1213 268 H1 |
BEARING
|
|
|
33 |
1213 262 H1 |
FRAME, DRIVE END
|
|
|
34 |
1285 739 H1 |
BOLT, MOUNTING
|
|
|
35 |
1213 271 H1 |
BOLT, MOUNTING
|
|
|
36 |
1213 273 H1 |
NUT, PULLEY
|
|
|
37 |
1268 370 H1 |
WASHER, FLAT
|
|
|
38 |
1285 738 H1 |
FAN, COOLING
|
|
|
|$44 |
|
|
|
|
|$42 |
|
R1 - REMANUFACTURED ASSEMBLY AVAILABLE; REFER TO REMANUFACTURED
|
|
|
|$43 |
|
ASSEMBLIES CATALOG.
|
7
4
5
22
23
24
26
6
8
9
28
3
27
20
36
34
2
37
32
38
35
33
30
29
25
17
21
10
11
12
13
15
14
31
18
16
16
19
1
