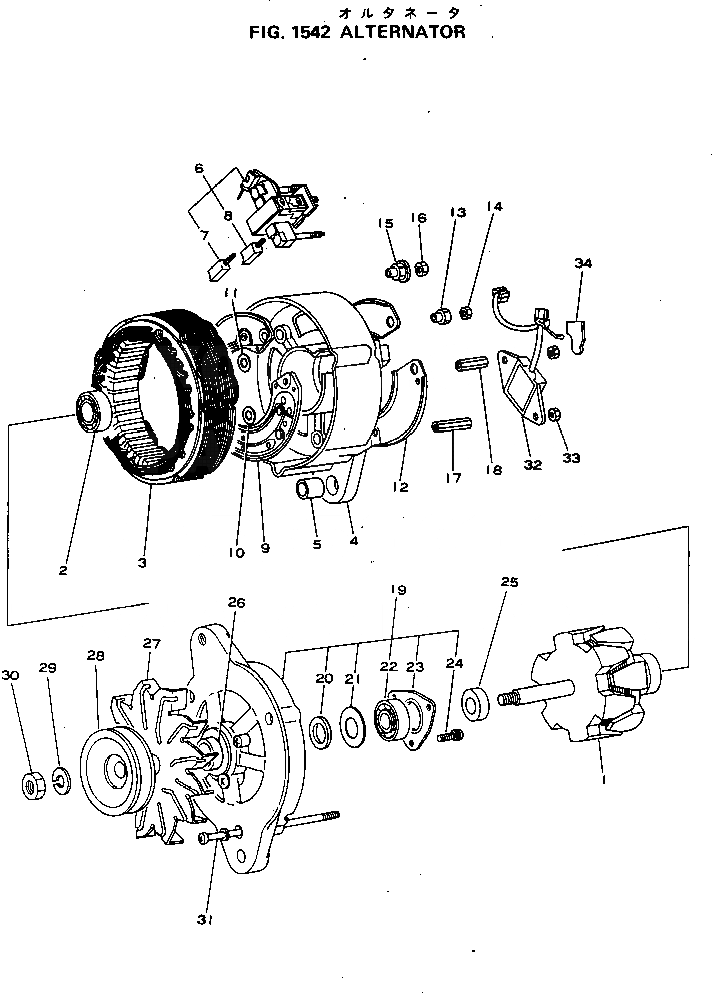

| |1 | 600-821-2330 | ALTERNATOR A. | |
| |1 | ND021000-7700 | ALTERNATOR ASS'Y | |
| 1 | ND021200-1390 | ROTOR ASS'Y | |
| 2 | ND949100-0350 | BEARING | |
| 3 | ND021100-0880 | STATOR ASS'Y | |
| 4 | ND021501-2740 | FRAME | |
| 5 | ND021541-0320 | BUSHING | |
| 6 | ND021620-1400 | BRUSH HOLDER A. | |
| 7 | ND021660-0130 | BRUSH | |
| 8 | ND949170-0570 | SPRING | |
| 9 | ND021997-1510 | PIN | |
| 10 | ND021605-0820 | INSULATOR | |
| 11 | ND949010-0540 | WASHER | |
| 12 | ND021551-0270 | COVER | |
| 13 | ND021605-0050 | BUSHING | |
| 14 | ND949056-1001 | NUT | |
| 15 | ND021605-0291 | BUSHING | |
| 16 | ND949056-0990 | NUT | |
| 17 | ND949056-1710 | NUT | |
| 18 | ND949055-1720 | NUT | |
| 19 | ND021400-2010 | FRAME ASS'Y | |
| 20 | ND949020-0230 | WASHER | |
| 21 | ND021405-0010 | COVER | |
| 22 | ND949100-0340 | BEARING | |
| 23 | ND021411-0280 | RETAINER | |
| 24 | ND948007-0010 | SCREW | |
| 25 | ND949192-0900 | COLLAR | |
| 26 | ND021045-0040 | COLLAR | |
| 27 | ND021051-0320 | FAN | |
| 28 | ND021041-2100 | PULLEY | |
| 29 | ND90258-14001 | WASHER,SPRING | |
| 30 | ND949050-1080 | NUT | |
| 31 | ND948042-0910 | BOLT | |
| 32 | ND126000-0090 | REGULATOR ASS'Y | |
| 33 | ND949056-0090 | NUT | |
| 34 | ND021751-0310 | CLIP |
