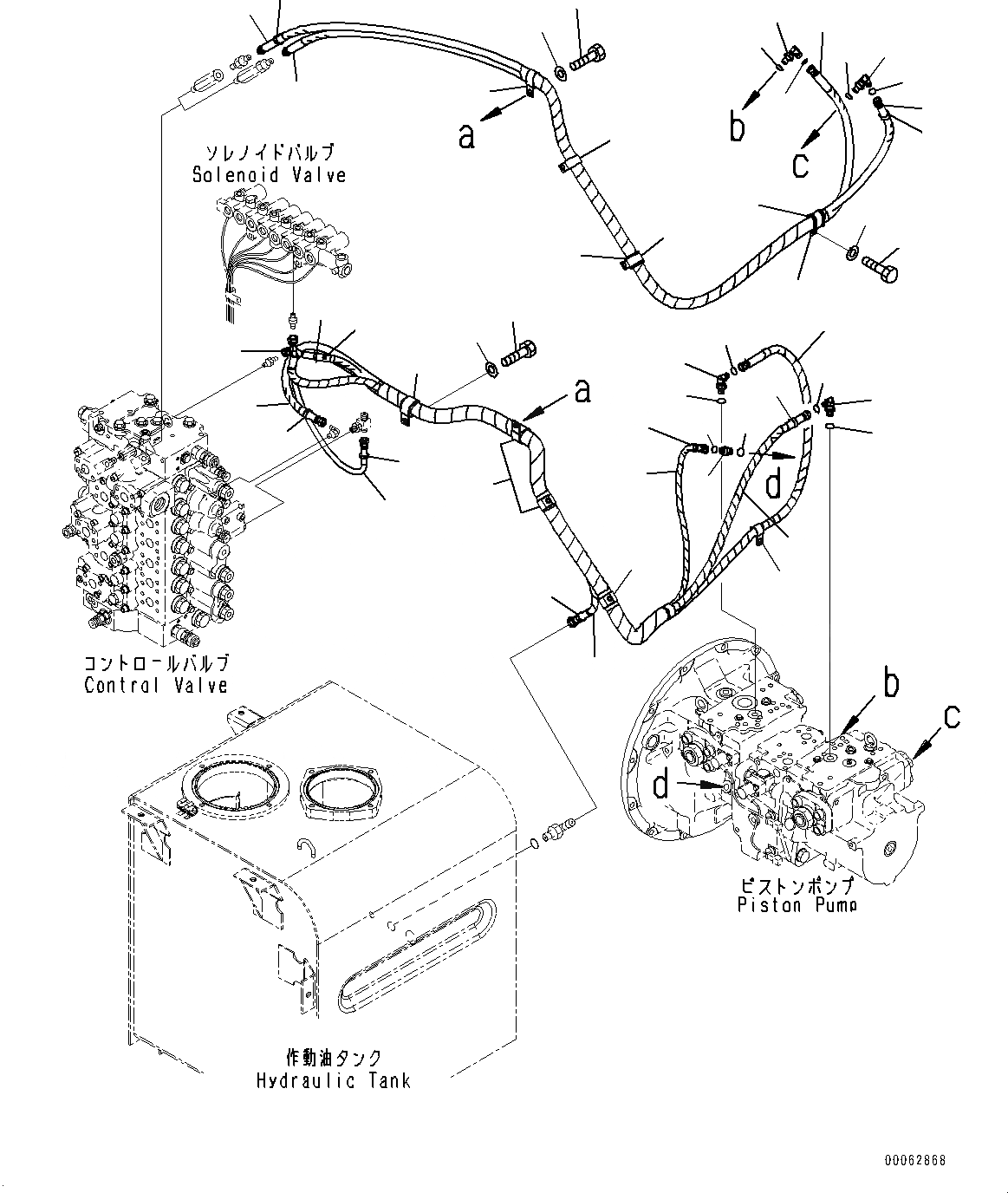

Запчасти ls трубы (№7-) экскаваторы pc450lc-8r s/n 75001-up Komatsu



1 11Y-62-12160 Elbow
2 02896-11008 O-ring
3 07002-11423 O-ring
4 11Y-62-12130 Nipple
5 02896-11008 O-ring
6 07002-11423 O-ring
7 02760-00227 Hose, Face Seal Type
8 02763-00414 Hose, Face Seal Type
9 02777-00224 Hose, Face Seal Type
10 02778-00229 Hose, Face Seal Type
11 20Y-62-22790 Band, Red
12 20Y-62-22810 Band, Yellow
13 20Y-62-22820 Band, Blue
14 04435-51812 Clip
15 01010-81220 Bolt
16 01643-31232 Washer
17 02777-00227 Hose, Face Seal Type
18 20Y-62-22790 Band, Red
19 113-899-7950 Clip
20 01010-81225 Bolt
21 01643-31232 Washer
22 04434-51812 Clip
23 198-06-53630 Cushion
24 04435-52112 Clip
14
17
18
6
9
1
17
3
4
16
8
2
5
15
7
10
11
12
13
19
20
21
22
1
9
18
17
14
13
12
11
10
7
2
8
3
14
24
23
1
2
3
1
2
3
20
21
19
17
23
24
