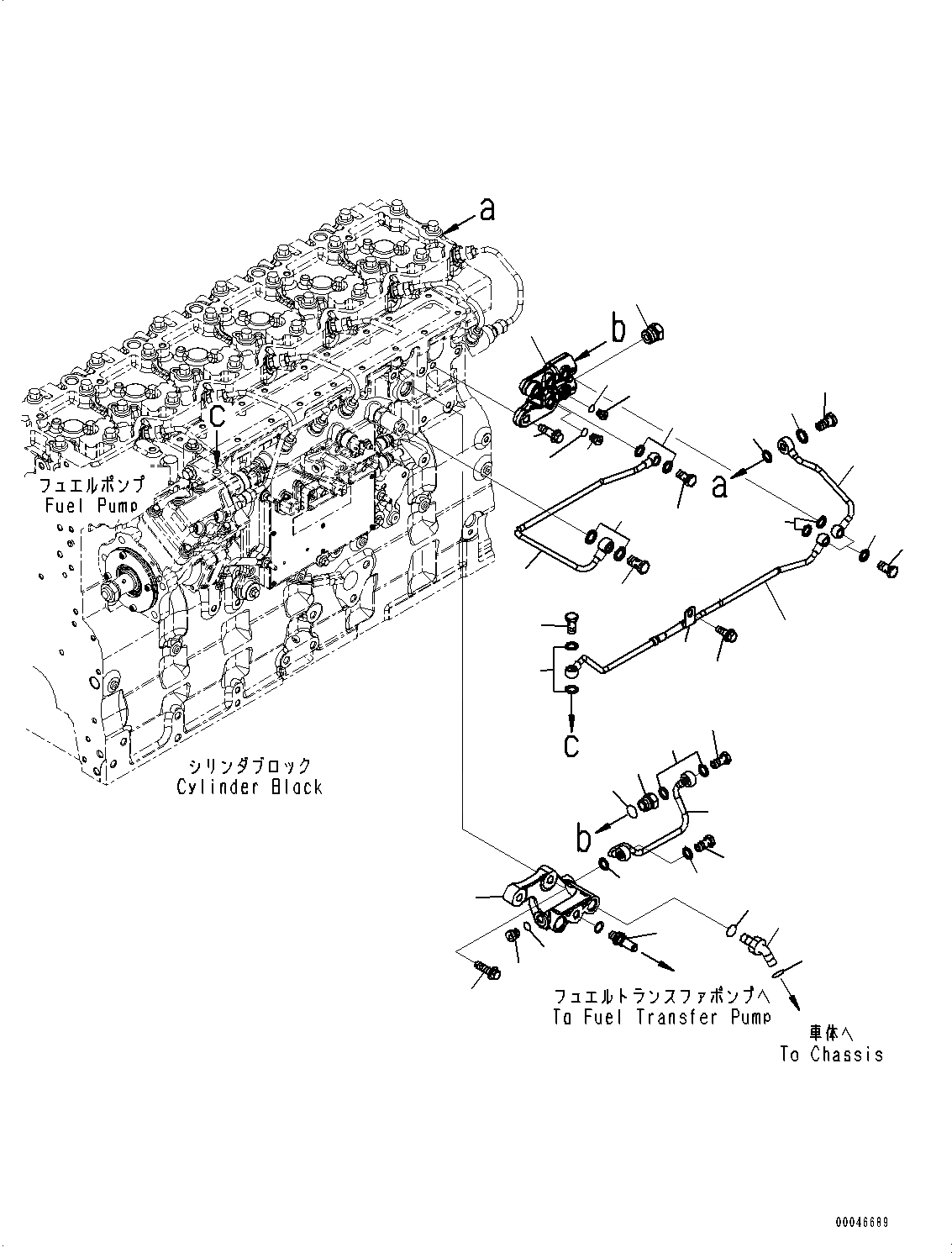

Запчасти топливопровод. (№877-) двигатели saa6d114e-3d s/n 26852735-up (for pc300-8/pc300lc-8/pc350-8/pc350lc-8) Komatsu



1 6745-71-5610 Connector
2 6732-22-3110 Bolt
|$2 6732-21-1960 Plug Assembly
3 6215-81-9510 Plug
4 6215-81-9710 O-ring
5 6745-71-5180 Elbow
6 6735-21-4160 O-ring
7 02896-11009 O-ring
8 6745-71-5440 Tube
9 6745-71-5450 Clip
10 6732-71-6510 Bolt, Joint
11 6732-61-3140 Bolt
12 6745-71-1130 Seal, Washer
13 6745-71-5460 Tube
14 6732-71-6510 Bolt, Joint
15 6732-71-5620 Screw
16 6731-74-5910 Washer, Seal
17 6745-71-1130 Seal, Washer
18 6745-71-5470 Tube
19 6732-71-6510 Bolt, Joint
20 6754-71-5430 Valve, Check
21 6731-74-5910 Washer, Seal
22 6745-71-1130 Seal, Washer
23 6745-71-5190 Plug
23 6744-71-3050 Plug Assembly
24 6744-71-3060 Plug, Threaded
25 6737-51-8770 O-ring
26 6216-74-6190 Bolt
27 6745-71-5580 Connector
|$29 6744-71-3050 Plug Assembly
28 6744-71-3060 Plug, Threaded
29 6737-51-8770 O-ring
30 6745-71-6130 Connector
31 6745-71-5480 Tube
|$34 6745-71-5490 Union Assembly
32 6745-71-5620 Union
33 6735-21-4160 O-ring
34 6732-71-6510 Bolt, Joint
35 6745-71-1130 Seal, Washer
12
34
34
33
32
31
30
27
26
25
24
23
21
16
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
22
28
29
35
35
35
