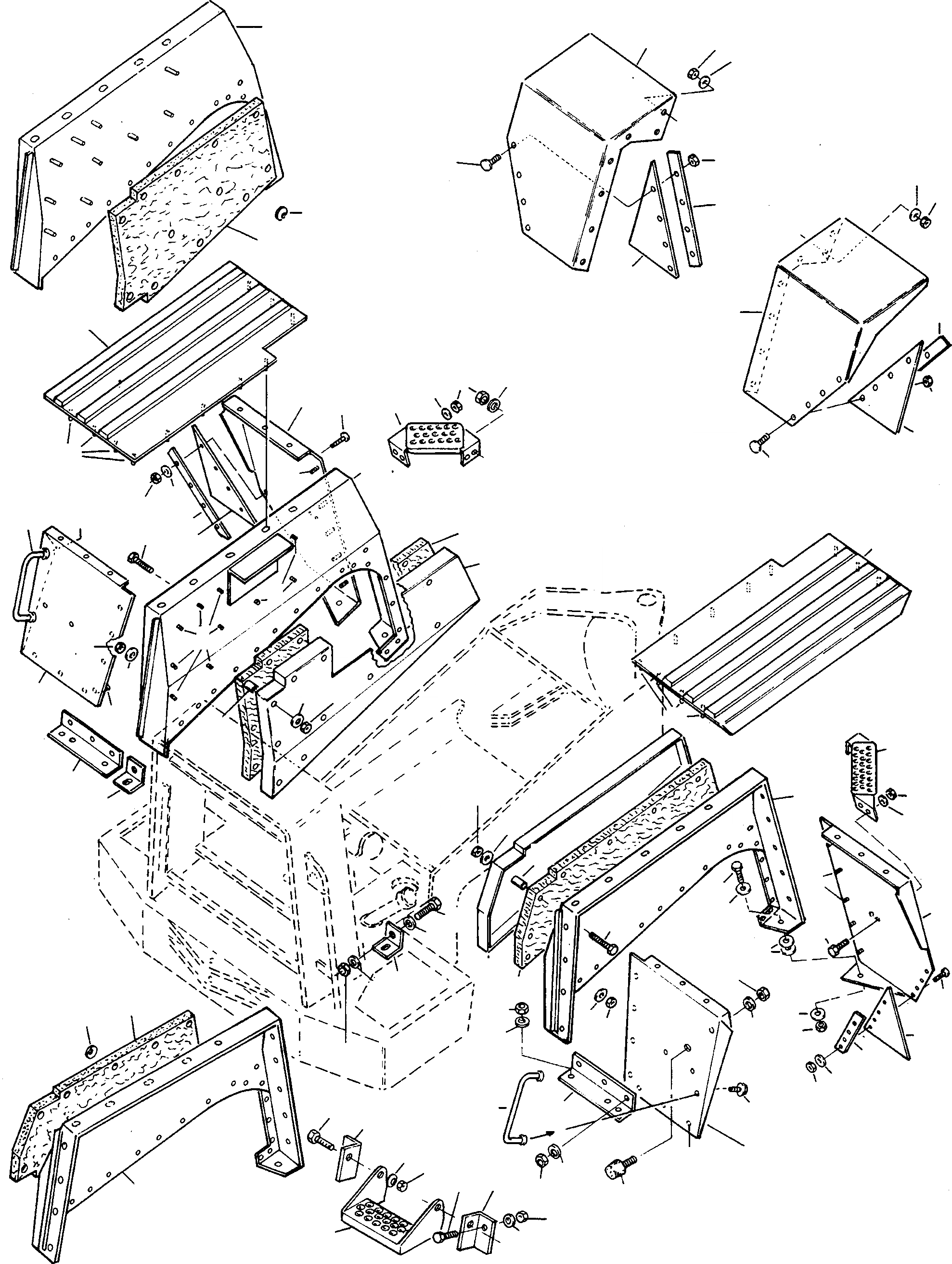

Запчасти крыло погрузчики колесные 60e s/n 376120051 - up Komatsu



1 4210742M91 FENDER/WING
2 4210743M91 FENDER/WING
3 NOT USED
4 2995155X1 THREADED PIN
4A 4211591M91 FENDER/WING
4B 4211585M1 INSULATING MAT
4C 4211592M91 FENDER/WING
4D 4211586M1 INSULATING MAT
4E 2978649M1 CLASP
5 4200176M1 ANGLE
5A 339081X1 SCREW
6 2964056M1 DISC
7 1444331X1 NUT
8 4210825M1 ANGLE
9 4210577M1 ANGLE
10 4210574M91 COVERING
11 4210573M91 COVERING
12 1444276X1 THREADED PIN
13 4210566M91 COVERING
14 4210565M91 COVERING
15 1444276X1 THREADED PIN
16 4210570M91 COVERING
17 4210569M91 COVERING
18 1444276X1 THREADED PIN
19 2951449M1 RUBBER
20 2951446M1 SLAT
21 1443726X1 SCREW
22 390597X1 PLAIN WASHER
23 2964056M1 DISC
24 339401X1 SCREW
25 1444331X1 NUT
26 4201109M91 GRIP
27 1444133X1 SCREW
28 4211091M91 FOOT BOARD
29 4211090M91 FOOT BOARD
30 390734X1 PLAIN WASHER
31 1444331X1 NUT
32 339401X1 SCREW
33 4210716M91 PERFORATED PLATE
34 4210715M91 PERFORATED PLATE
35 4210718M1 INSULATING PLATE
36 4210720M1 INSULATING PLATE
37 339168X1 SCREW
38 391039X1 PLAIN WASHER
39 4201401M1 TUBE
40 4210675M91 FENDER/WING
41 4210674M91 FENDER/WING
42 1444331X1 NUT
43 2964056M1 DISC
44 2951449M1 RUBBER
45 2951446M1 SLAT
46 1443726X1 SCREW
47 2875329M1 BUFFER
48 390971X1 PLAIN WASHER
49 1444325X1 NUT
50 4201165M1 ANGLE
51 339401X1 SCREW
52 390597X1 PLAIN WASHER
53 2995017X1 NUT
54 4203292M91 STAIR
55 339401X1 SCREW
56 3007734X1 CUP SPRING
57 2995017X1 NUT
4A
4E
40
4B
42
43
43
42
45
44
46
46
44
29
14
24
47
5A
4C
4E
4D
7
4
4
34
46
46
45
41
16
22
31
30
13
28
21
18
1
15
22
21
27
26
20
35
37
17
19
33
6
25
38
10
12
18
39
8
25
31
2
5
30
38
39
15
23
37
32
30
23
49
5
36
22
21
25
23
6
48
7
25
22
19
25
20
22
21
55
26
9
27
50
56
11
12
57
22
50
51
25
53
54
52
