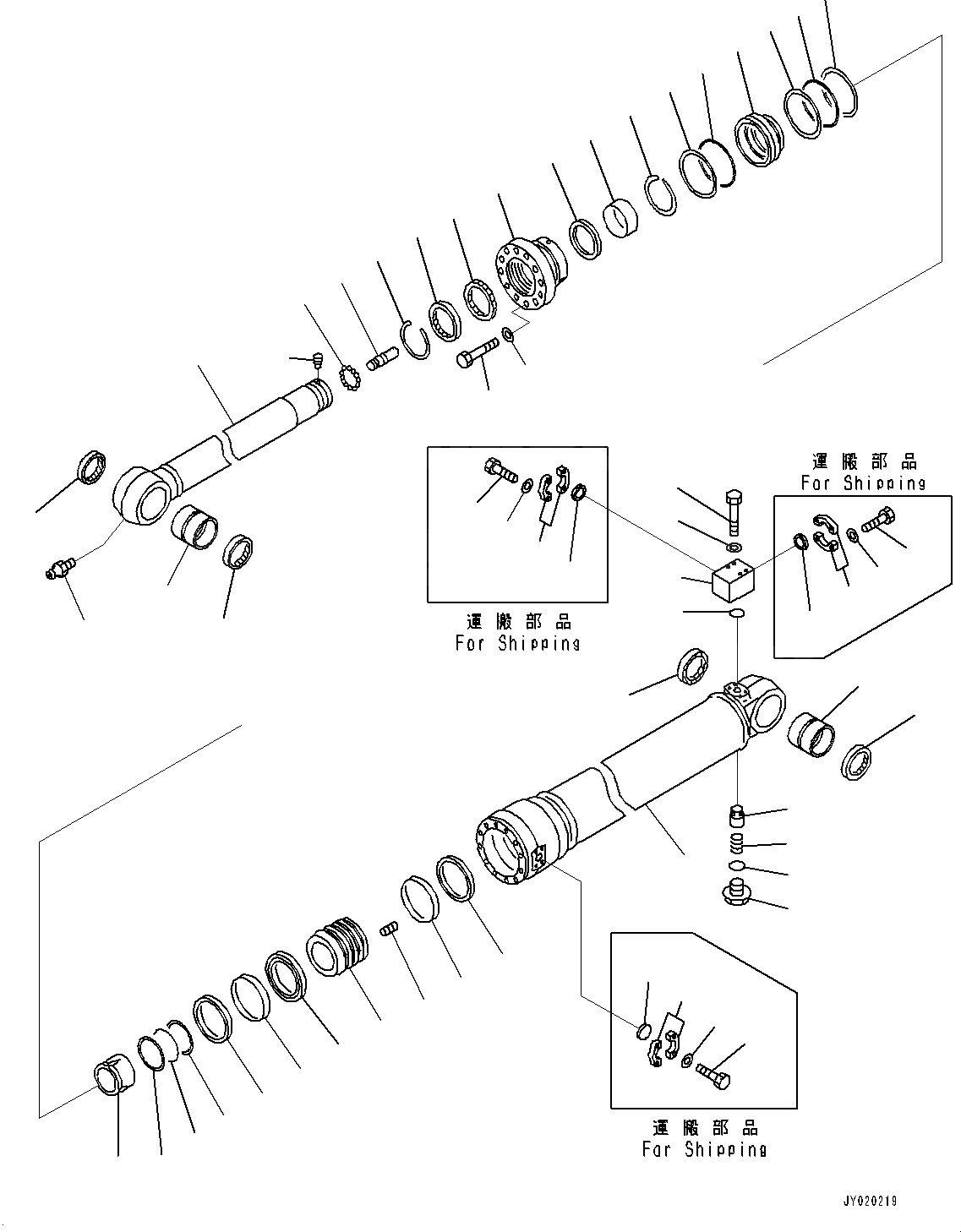

Запчасти цилиндр рукояти, внутр. части (№9-) экскаваторы pc300lc-8 s/n 60001-up Komatsu



|$0 707-01-0A452 Cylinder Assembly
1 707-13-16710 Cylinder
2 707-58-11360 Rod, Piston
3 707-76-10290 Bushing
4 07145-00100 Seal, Dust, (Kit : K10)
5 707-76-10290 Bushing
6 07145-00100 Seal, Dust, (Kit : K10)
7 07020-00000 Fitting, Grease
8 707-71-32800 Collar
9 707-35-91640 Ring, Back-up, (Kit : K10)
10 07000-15150 O-ring, (Kit : K10)
11 707-71-61130 Plunger
12 707-71-70290 Plunger
13 04260-00635 Ball, Steel
14 707-71-91270 Cap
15 707-27-16571 Head, Cylinder
16 07179-13126 Ring, Snap
17 707-56-11740 Seal, Dust, (Kit : K10)
18 707-51-11030 Packing, Rod, (Kit : K10)
19 707-51-11640 Ring, Buffer, (Kit : K10)
20 707-52-90850 Bushing
21 07000-15150 O-ring, (Kit : K10)
22 707-35-91640 Ring, Back-up, (Kit : K10)
23 01010-82085 Bolt
24 707-88-75310 Washer
25 707-75-11040 Ring, Snap
26 707-36-16580 Piston
27 707-44-16180 Ring, Piston, (Kit : K10)
28 707-39-16120 Ring, Wear, (Kit : K10)
29 707-44-16910 Ring
30 07000-15100 O-ring, (Kit : K10)
31 07001-05100 Ring, Back-up, (Kit : K10)
32 01310-01216 Screw
33 707-83-13010 Valve
34 07750-01628 Spring
35 707-87-14070 Plug
36 07002-12034 O-ring, (Kit : K10)
37 707-86-11610 Block
38 01010-81095 Bolt
39 01643-31032 Washer
40 07000-13035 O-ring, (Kit : K10)
41 07371-31049 Flange, Split
42 707-88-33040 Cap
43 07372-21035 Bolt
44 01643-51032 Washer
6
5
6
3
4
4
40
37
38
11
29
28
29
32
26
41
27
28
1
18
9
20
30
31
10
44
41
42
43
36
8
24
23
21
22
9
19
12
16
34
44
31
13
43
17
15
33
14
2
7
43
42
41
44
35
42
39
25
