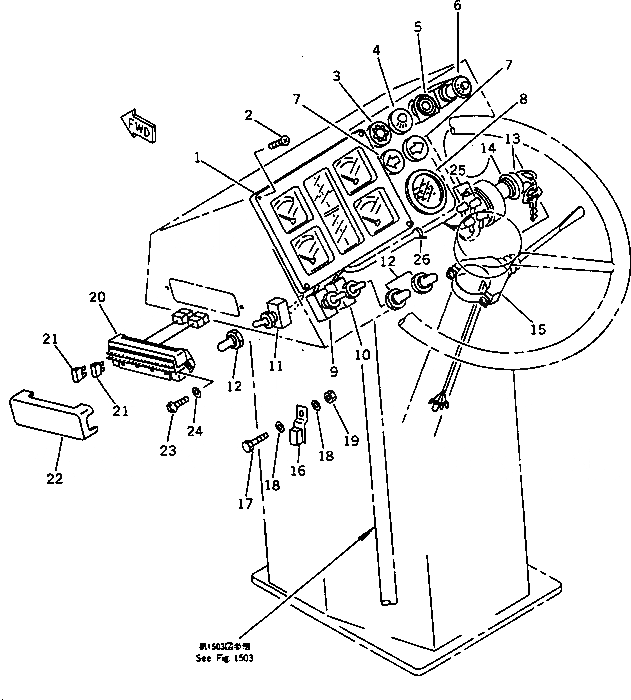

Запчасти панель приборов (для cluster gauge) погрузчики колесные wa250-1 s/n 10001-up Komatsu



1 417-06-15112 GAUGE CLUSTER
1 417-06-15111 GAUGE CLUSTER
1 417-06-15330 GAUGE,WATER TEMPERATURE
1 417-06-15340 GAUGE,OIL TEMPERATURE
1 417-06-15350 GAUGE,FUEL LEVEL
1 417-06-15360 GAUGE,VOLT
1 417-06-15390 PLATE, CAUTION
1 08102-02403 BULB, 3W
1 417-06-15380 SOCKET
1 417-06-15310 PANEL
1 417-06-15320 GASKET,PANEL
2 01224-40520 SCREW
3 41A-06-15120 LAMP,TRANSMISSION CUT OFF
3 08111-02430 BULB, 3W
3 08021-00400 CONNECTOR
4 417-06-15221 LAMP,WORK
4 08111-02430 BULB, 3W
4 08021-00400 CONNECTOR
5 600-815-2371 SIGNAL,HEATER
6 08061-60010 SWITCH,LAMP
7 566-06-17150 LAMP,INDICATOR
8 417-06-15120 METER,SERVICE
8 7815-11-1010 BULB, 1.4W
9 08501-22501 SWITCH,TRANSMISSION CUT OFF
10 08501-21508 SWITCH,WORK LAMP
11 08501-22501 SWITCH,PARKING
12 08504-10000 CAP
13 08086-20000 SWITCH,STARTING
14 426-43-18850 SHIM, 1.0MM
15 417-06-11260 SWITCH,TURN SIGNAL
16 22W-06-13251 FLASHER
17 01010-50630 BOLT
18 01643-30623 WASHER
19 01580-10605 NUT
20 41A-06-12151 BOX
21 283-06-16190 FUSE, 10A
21 22W-06-13160 FUSE, 20A
22 283-06-16120 COVER
23 01220-40620 SCREW
24 01641-20608 WASHER
25 08603-40020 CABLE
26 08034-20519 BAND
26 08034-00414 BAND
