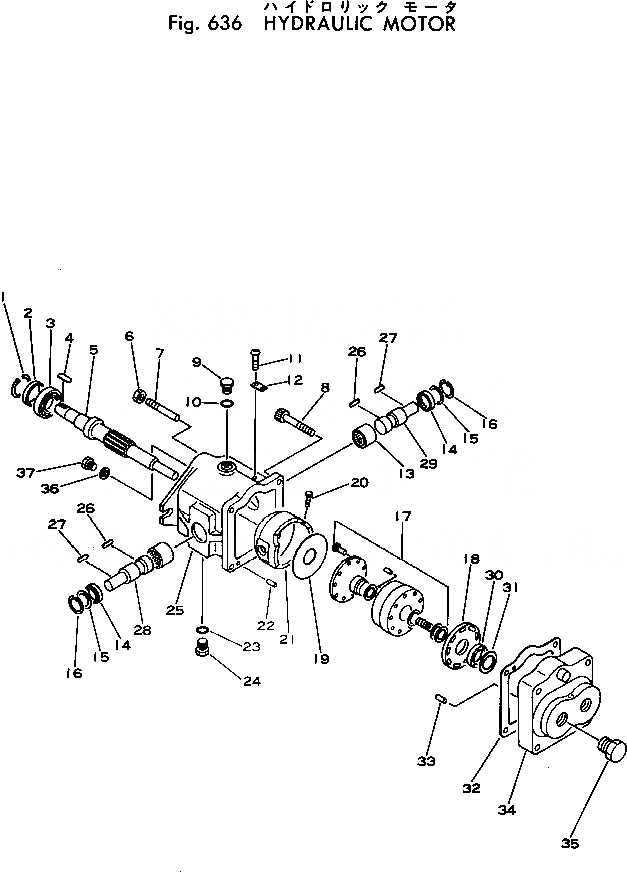

Запчасти гидравл мотор погрузчики с бортовым поворотом sk07-1 s/n 1001-up Komatsu
|
|
|1 |
FF7810-61102 |
MOTOR ASS'Y
|
|
|
|1 |
FF7810-61101 |
MOTOR ASS'Y
|
|
|
|1 |
FF7810-61100 |
MOTOR ASS'Y
|
|
|
1 |
|
RING,RETAINING
|
|
|
2 |
|
SEAL,LIP
|
|
|
|2 |
|
SEAL,LIP
|
|
|
3 |
|
BEARING
|
|
|
4 |
|
KEY
|
|
|
5 |
|
SHAFT,DRIVE
|
|
|
6 |
|
NUT
|
|
|
7 |
|
STOPPER
|
|
|
8 |
|
SCREW,SOCKET HEAD
|
|
|
9 |
|
PLUG,SOCKET HEAD
|
|
|
10 |
|
O-RING
|
|
|
11 |
|
SCREW
|
|
|
12 |
|
PLATE¤ NAME
|
|
|
13 |
|
BEARING,NEEDLE
|
|
|
14 |
|
SEAL,LIP
|
|
|
15 |
|
WASHER
|
|
|
16 |
|
RING,RETAINING
|
|
|
17 |
|
CYLINDER BLOCK KIT
|
|
|
|17 |
|
CYLINDER BLOCK KIT
|
|
|
18 |
|
PLATE,VALVE
|
|
|
19 |
|
PLATE,THRUST
|
|
|
|19 |
|
PLATE,THRUST
|
|
|
20 |
|
SCREW
|
|
|
21 |
|
PLATE,SWASH
|
|
|
|21 |
|
PLATE,SWASH
|
|
|
22 |
|
PIN,DOWEL
|
|
|
23 |
|
PLUG
|
|
|
24 |
|
O-RING
|
|
|
25 |
|
HOUSING
|
|
|
|25 |
|
HOUSING
|
|
|
26 |
|
KEY
|
|
|
27 |
|
KEY
|
|
|
28 |
|
SHAFT,TRUNNION
|
|
|
|28 |
|
SHAFT,TRUNNION
|
|
|
29 |
|
SHAFT,TRUNNION
|
|
|
|29 |
|
SHAFT,TRUNNION
|
|
|
30 |
|
BEARING
|
|
|
31 |
|
SHIM
|
|
|
32 |
|
GASKET
|
|
|
|32 |
|
GASKET
|
|
|
33 |
|
PIN,DOWEL
|
|
|
34 |
|
CAP,END
|
|
|
|34 |
|
CAP,END
|
|
|
35 |
|
PLUG
|
|
|
36 |
|
WASHER,SEAL
|
|
|
37 |
|
PLUG
|
