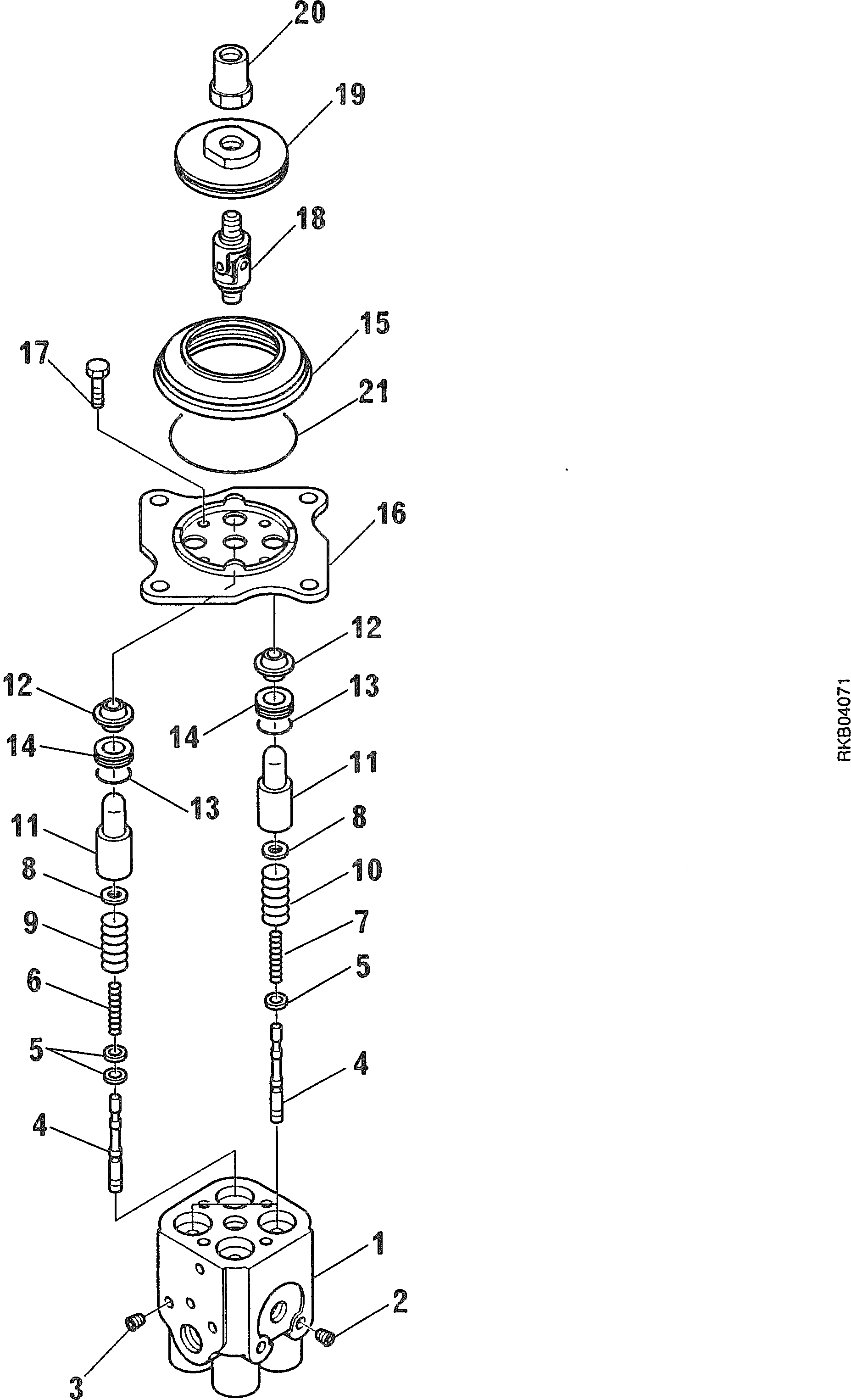

| |1 | 702-16-03070 | PPC VALVE ASS'Y | |
| 1 | HOLDER | ||
| 2 | PLUG | ||
| 3 | PLUG | ||
| 4 | VALVE | ||
| 5 | 702-16-51140 | SHIM¤ 0.30MM | |
| 6 | 702-16-58630 | SPRING | |
| 7 | 702-16-58650 | SPRING | |
| 8 | 702-16-54140 | RETAINER | |
| 9 | 702-16-58610 | SPRING | |
| 10 | 702-16-53330 | SPRING | |
| 11 | 702-16-53170 | PISTON | |
| 12 | 702-16-51270 | SEAL | |
| 13 | 07000-12020 | O-RING | |
| 14 | 702-16-54170 | COLLAR | |
| 15 | 702-16-53190 | BOOT | |
| 16 | 702-16-53210 | PLATE | |
| 17 | 01010-80620 | BOLT | |
| 18 | 702-16-51240 | JOINT | |
| 19 | 702-16-53220 | DISC | |
| 20 | 702-16-53230 | NUT | |
| 21 | 07000-12070 | O-RING |
