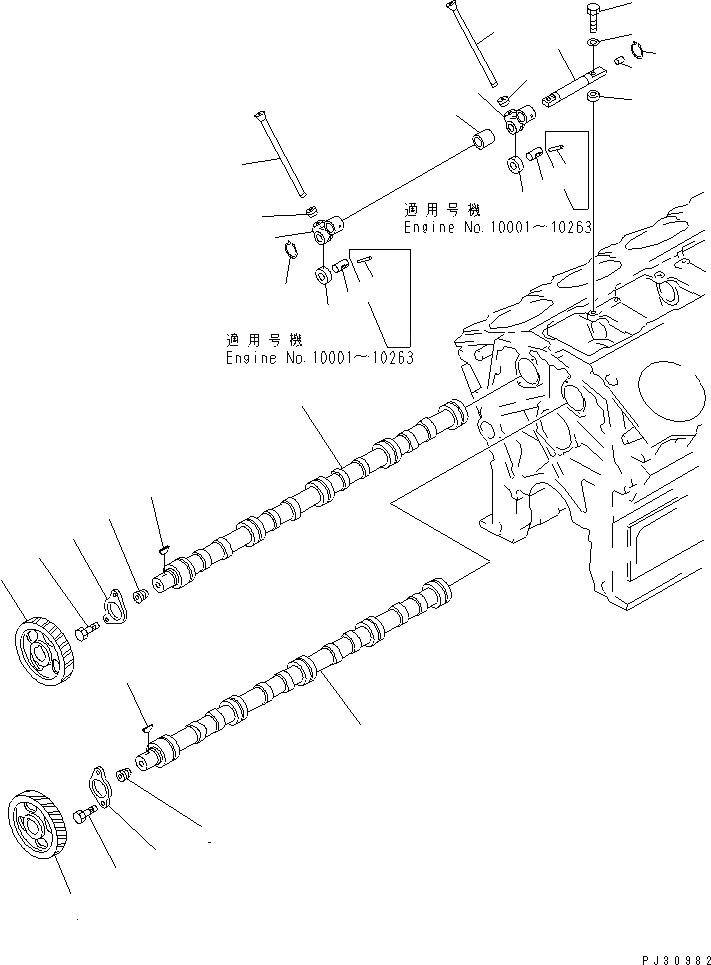

Запчасти распредвал и толкатель клапана(№-) двигатели sa8v170-1a s/n 10001-up Komatsu
|
|
|1 |
6164-41-1050 |
CAMSHAFT ASS'Y,L.H.
|
|
|
|1 |
6164-41-1010 |
CAMSHAFT ASS'Y,R.H.
|
|
|
1 |
|
CAMSHAFT,L.H.
|
|
|
|1 |
|
CAMSHAFT,R.H.
|
|
|
2 |
04010-00738 |
KEY
|
|
|
3 |
6162-43-1130 |
PLATE,THRUST
|
|
|
4 |
6164-41-1350 |
GEAR,L.H.
|
|
|
|4 |
6164-41-1310 |
GEAR,R.H.
|
|
|
5 |
07043-00108 |
PLUG
|
|
|
6 |
6162-42-1150 |
BOLT (K2)
|
|
|
|7 |
6162-43-2300 |
CAMFOLLOWER SUB A.
|
|
|
7 |
|
FOLLOWER,CAM
|
|
|
8 |
|
SOCKET
|
|
|
9 |
|
ROLLER,CAM
|
|
|
10 |
|
PIN
|
|
|
11 |
|
PIN,ROLLER
|
|
|
12 |
6162-43-2320 |
COLLAR
|
|
|
|13 |
6164-41-2400 |
SHAFT ASS'Y
|
|
|
13 |
|
SHAFT
|
|
|
14 |
6162-43-2420 |
PIN,DOWEL
|
|
|
15 |
04064-02512 |
RING,SNAP
|
|
|
16 |
6162-43-2430 |
RING,DOWEL
|
|
|
17 |
01010-31240 |
BOLT
|
|
|
18 |
01643-31232 |
WASHER
|
|
|
19 |
6162-43-3101 |
ROD,PUSH
|
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
15
16
17
18
19
19
