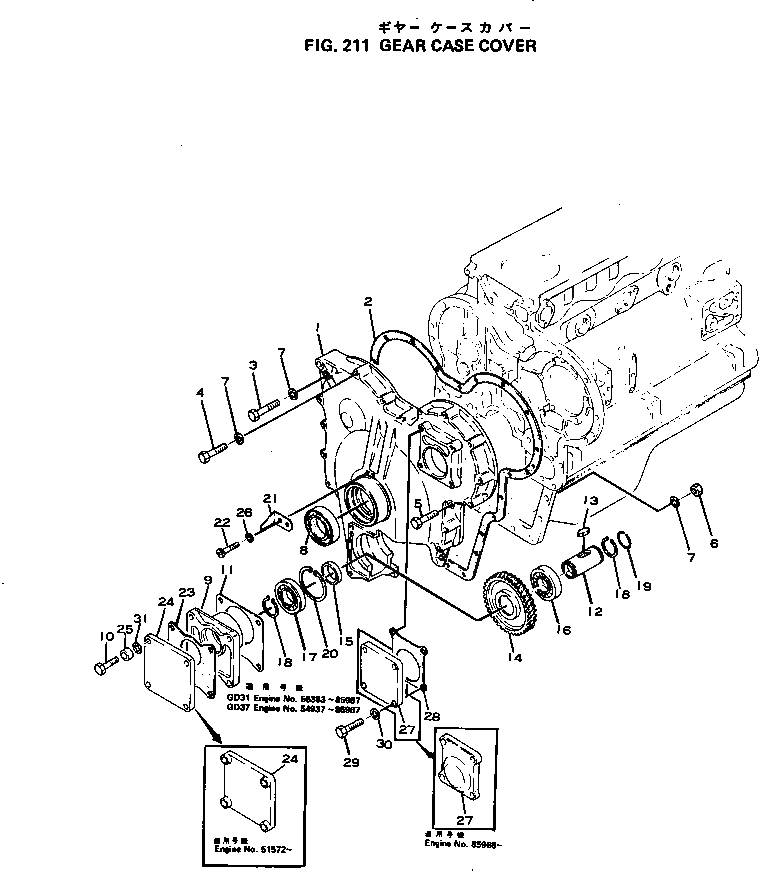

| 1 | 6110-23-3110 | COVER | |
| 2 | 6110-23-3810 | GASKET (K2) | |
| 3 | 6112-21-6920 | BOLT | |
| |3 | 6110-63-2820 | BOLT | |
| 4 | 01010-31075 | BOLT | |
| 5 | 01010-31040 | BOLT | |
| 6 | 01582-01008 | NUT | |
| 7 | 01602-01030 | WASHER | |
| 8 | 07012-00075 | SEAL (K2) | |
| 9 | 6110-23-3211 | SPACER | |
| |9 | 6110-23-3210 | SPACER | |
| 10 | 6110-23-3610 | BOLT | |
| 11 | 6110-23-3830 | GASKET (K2) | |
| 12 | 6110-83-5211 | SHAFT | |
| |12 | 6110-83-5210 | SHAFT | |
| 13 | 04000-01545 | KEY | |
| 14 | 6112-81-5110 | GEAR | |
| 15 | 6110-83-5310 | SPACER | |
| 16 | 06000-06210 | BEARING | |
| 17 | 06001-06210 | BEARING | |
| 18 | 04066-00050 | RING | |
| 19 | 6110-83-5240 | RING | |
| 20 | 04065-09030 | RING | |
| 21 | 6112-21-3120 | POINTER | |
| 22 | 01010-30612 | BOLT | |
| |22 | 01210-50612 | SCREW | |
| 23 | 6110-23-6740 | GASKET (K2) | |
| 24 | 6110-23-6731 | COVER | |
| |24 | 6110-23-6730 | COVER | |
| 25 | 6110-23-6750 | SPACER | |
| 26 | 01602-00619 | WASHER | |
| 27 | 6112-21-6711 | COVER | |
| |27 | 6112-21-6710 | COVER | |
| |27 | 6110-23-6710 | COVER | |
| |27 | 6110-23-6710 | COVER | |
| |27 | 6110-23-6710 | COVER | |
| 28 | 6110-23-6720 | GASKET (K2) | |
| |28 | 6110-23-6720 | GASKET (K2) | |
| |28 | 6110-23-6720 | GASKET (K2) | |
| 29 | 01010-31240 | BOLT | |
| |29 | 01010-31240 | BOLT | |
| |29 | 01010-31240 | BOLT | |
| 30 | 01602-01236 | WASHER | |
| |30 | 01602-01236 | WASHER | |
| |30 | 01602-01236 | WASHER | |
| 31 | 07003-01217 | GASKET (K2) |
