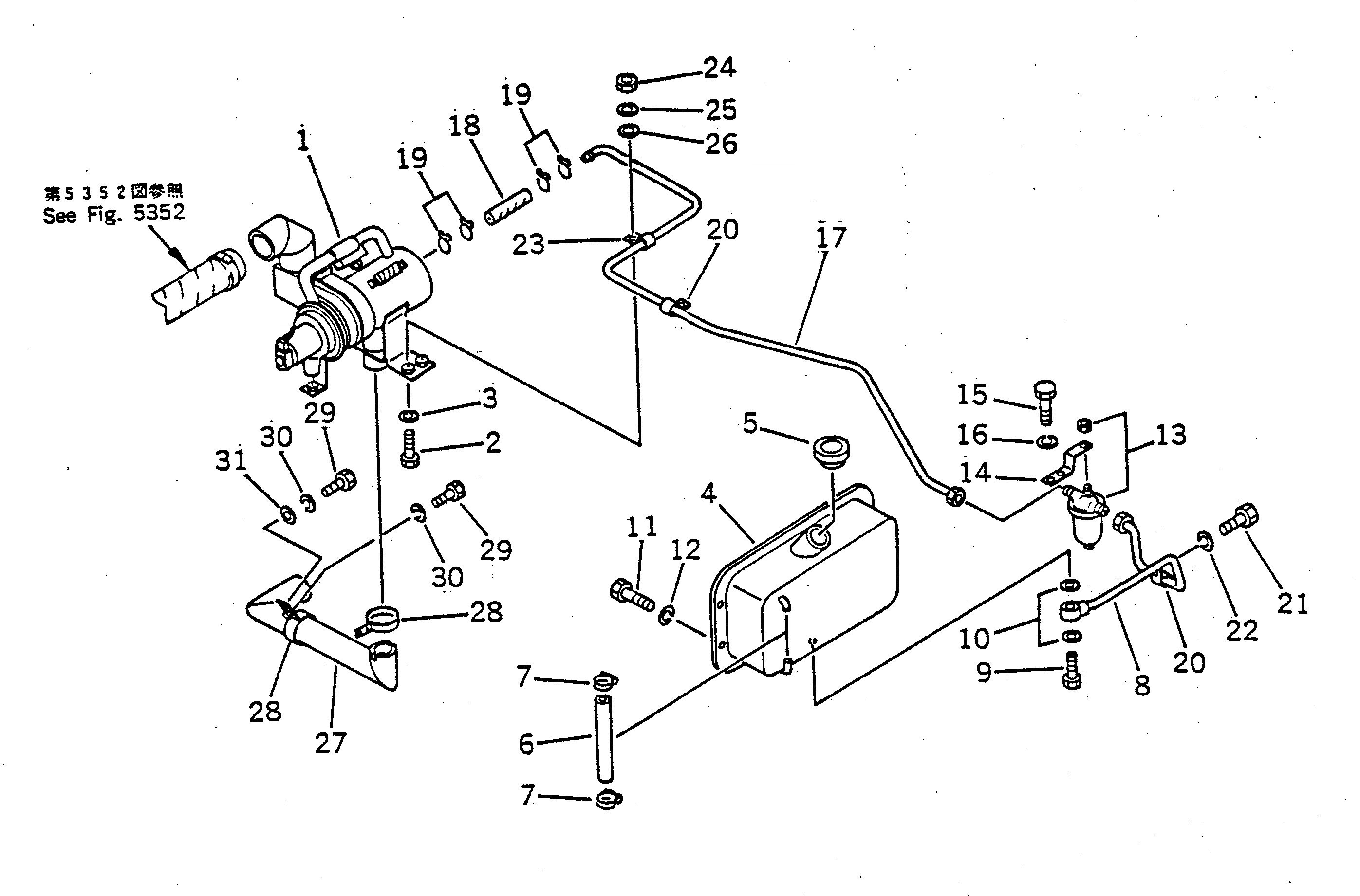

| 1 | 22X-54-16111 | HEATER ASS'Y | |
| 2 | 01010-50625 | BOLT | |
| 3 | 01602-20619 | WASHER | |
| 4 | 22X-54-16410 | TANK ASS'Y | |
| 5 | 22W-54-14560 | CAP | |
| 6 | 22W-54-14570 | TUBE | |
| 7 | 22W-54-14580 | CLIP | |
| 8 | 22W-54-14650 | TUBE | |
| 9 | 22W-54-14630 | BOLT | |
| 10 | 22W-54-14640 | WASHER | |
| 11 | 01010-50816 | BOLT | |
| 12 | 01602-20825 | WASHER | |
| 13 | 22W-54-14530 | FILTER ASS'Y | |
| 14 | 22X-54-16250 | PLATE | |
| 15 | 01010-51020 | BOLT | |
| 16 | 01602-21030 | WASHER | |
| 17 | 22X-54-16420 | TUBE | |
| 18 | 22W-54-14670 | HOSE | |
| 19 | 22W-54-14660 | CLIP | |
| 20 | 08036-10814 | CLIP | |
| 21 | 01010-51016 | BOLT | |
| 22 | 01602-21030 | WASHER | |
| 23 | 08036-10810 | CLIP | |
| 24 | 01580-10605 | NUT | |
| 25 | 01602-20619 | WASHER | |
| 26 | 01643-30623 | WASHER | |
| 27 | 22X-54-16260 | PIPE | |
| 28 | 22W-54-14180 | CLAMP | |
| 29 | 01010-50612 | BOLT | |
| 30 | 01602-20619 | WASHER | |
| 31 | 01643-30623 | WASHER |
