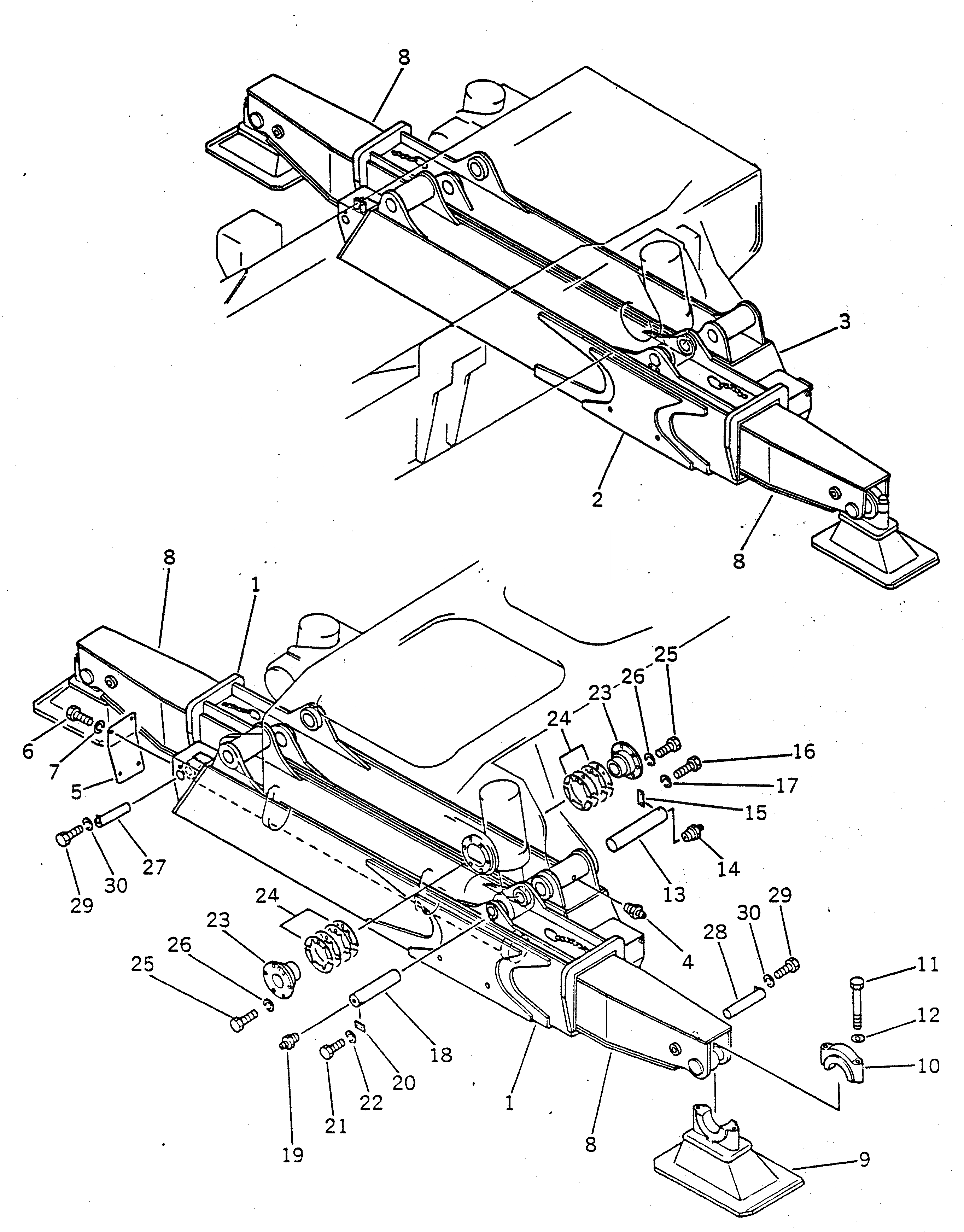

| 1 | 22X-47-11220 | FRAME,OUTER | |
| 2 | 22X-47-11250 | FRAME,OUTER | |
| 3 | 22X-47-11260 | FRAME,OUTER | |
| 4 | 07020-00000 | FITTING | |
| 5 | 22X-47-11330 | COVER | |
| 6 | 01010-50616 | BOLT | |
| 7 | 01602-20619 | WASHER | |
| 8 | 22X-47-11410 | FRAME,INNER | |
| 8 | 22W-47-11260 | SHAFT (WELDED) | |
| 9 | 22X-47-11311 | FLOAT | |
| 9 | 22X-47-11310 | FLOAT | |
| 10 | 130-70-13231 | CAP | |
| 11 | 01010-51490 | BOLT | |
| 12 | 01643-32460 | WASHER | |
| 13 | 22W-47-11230 | SHAFT | |
| 14 | 07020-00000 | FITTING | |
| 15 | 04082-00206 | LOCK | |
| 16 | 01010-51225 | BOLT | |
| 17 | 01602-21236 | WASHER | |
| 18 | 22W-47-11220 | SHAFT | |
| 19 | 07020-00000 | FITTING | |
| 20 | 04082-00306 | LOCK | |
| 21 | 01010-51220 | BOLT | |
| 22 | 01602-21236 | WASHER | |
| 23 | 22W-47-11270 | SHAFT | |
| 24 | 22W-47-11290 | SHIM, 0.2MM | |
| 24 | 22W-47-11280 | SHIM, 0.5MM | |
| 25 | 01010-51230 | BOLT | |
| 26 | 01602-21236 | WASHER | |
| 27 | 22W-47-11250 | SHAFT | |
| 28 | 22W-47-11240 | SHAFT | |
| 29 | 01010-50816 | BOLT | |
| 30 | 01602-20825 | WASHER |
