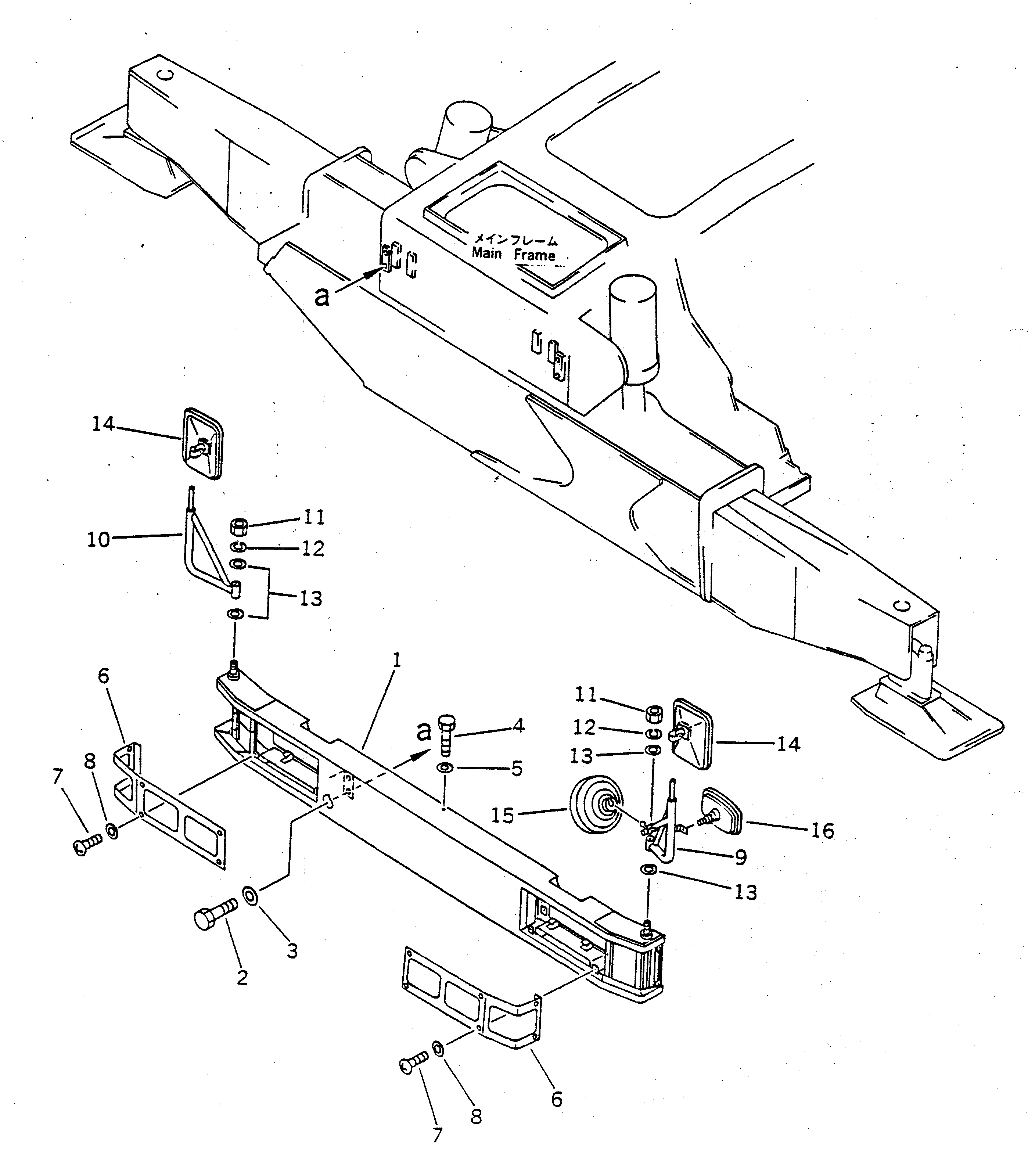

| 1 | 23S-54-16361 | COVER | |
| 2 | 01010-51635 | BOLT | |
| 3 | 01643-31645 | WASHER | |
| 4 | 01010-51020 | BOLT | |
| 5 | 01643-31032 | WASHER | |
| 6 | 23S-54-11130 | PANEL | |
| 7 | 23S-06-14990 | SCREW | |
| 8 | 362-06-21140 | WASHER | |
| 9 | 23S-54-15111 | STAY | |
| 10 | 23S-54-15121 | STAY | |
| 11 | 01580-11210 | NUT | |
| 12 | 01602-21236 | WASHER | |
| 13 | 01643-31232 | WASHER | |
| 14 | 08174-33023 | MIRROR | |
| 15 | 23S-54-15310 | MIRROR | |
| 16 | 362-54-16110 | MIRROR |
