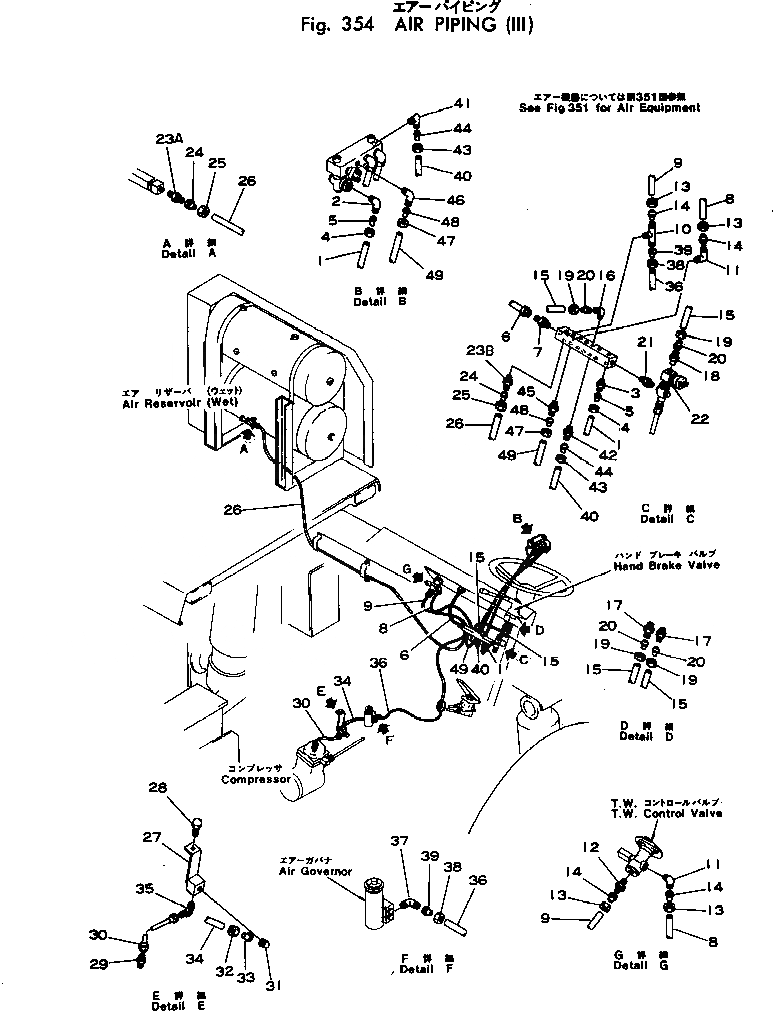

| 1 | 07822-00623 | TUBE | |
| 2 | 07834-00617 | ELBOW | |
| 3 | 07836-00613 | CONNECTOR | |
| 4 | 07832-00614 | NUT | |
| 5 | 07831-00612 | SLEEVE | |
| 6 | 566-35-12441 | TUBE | |
| 7 | 07213-50510 | CONNECTOR | |
| 8 | 07822-00404 | TUBE | |
| 9 | 07822-00404 | TUBE | |
| 10 | 07835-00413 | TEE | |
| 11 | 07834-00413 | ELBOW | |
| 12 | 07836-00413 | CONNECTOR | |
| 13 | 07832-00410 | NUT | |
| 14 | 07831-00411 | SLEEVE | |
| 15 | 07822-00605 | TUBE | |
| 16 | 07834-00613 | ELBOW | |
| 17 | 07836-00613 | CONNECTOR | |
| 18 | 07836-00617 | CONNECTOR | |
| 19 | 07832-00614 | NUT | |
| 20 | 07831-00612 | SLEEVE | |
| 21 | 07325-10300 | NIPPLE | |
| 22 | 411-44-13341 | JOINT | |
| 23A | 07836-00410 | CONNECTOR | |
| 23A | 07836-00413 | CONNECTOR | |
| 23B | 07836-00413 | CONNECTOR | |
| 24 | 07831-00411 | SLEEVE | |
| 25 | 07832-00410 | NUT | |
| 26 | 07822-00437 | TUBE | |
| 27 | 566-35-12660 | JOINT | |
| 28 | 02011-20521 | BOLT | |
| 29 | 07213-50610 | CONNECTOR | |
| 30 | 569-35-13421 | TUBE | |
| 31 | 07834-00410 | ELBOW | |
| 32 | 07832-00410 | NUT | |
| 33 | 07831-00411 | SLEEVE | |
| 34 | 07822-00412 | TUBE | |
| 35 | 566-35-12260 | ELBOW | |
| 36 | 07822-00413 | TUBE | |
| 37 | 07834-00410 | ELBOW | |
| 38 | 07832-00410 | NUT | |
| 39 | 07831-00411 | SLEEVE | |
| 40 | 07822-00624 | TUBE | |
| 41 | 07834-00613 | ELBOW | |
| 42 | 07836-00613 | CONNECTOR | |
| 43 | 07832-00614 | NUT | |
| 44 | 07831-00612 | SLEEVE | |
| 45 | 07836-00413 | CONNECTOR | |
| 46 | 07834-00413 | ELBOW | |
| 47 | 07832-00410 | NUT | |
| 48 | 07831-00411 | SLEEVE | |
| 49 | 07822-00422 | TUBE |
