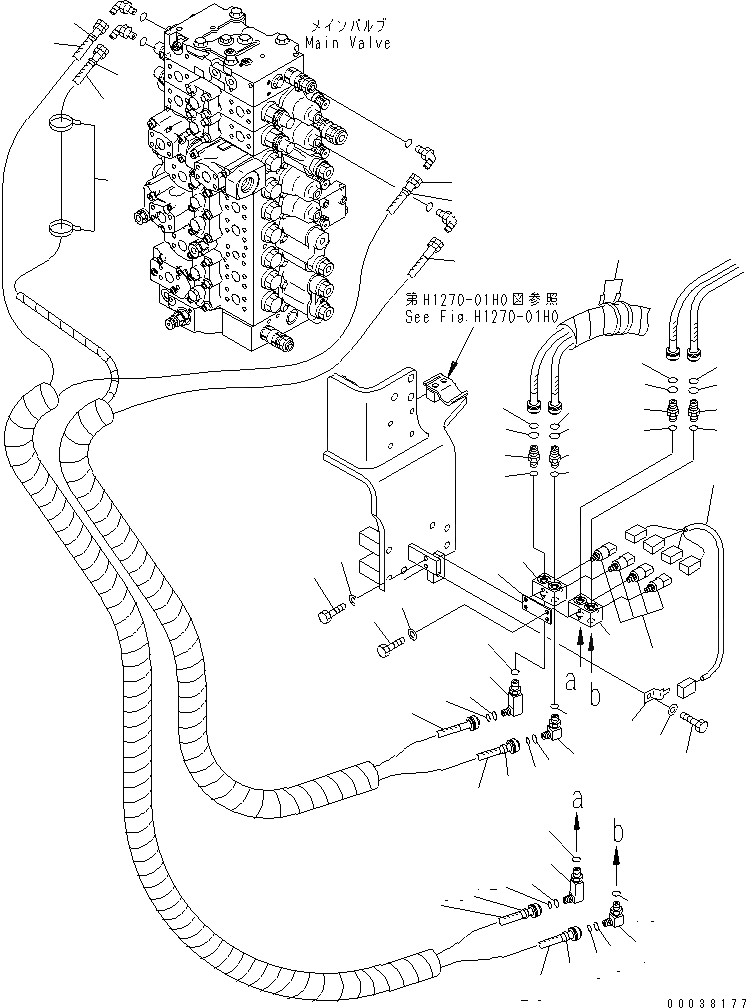

| 1 | 20Y-62-43430 | BLOCK | |
| 2 | 01010-80830 | BOLT | |
| 3 | 01643-30823 | WASHER | |
| 4 | 20Y-62-43450 | PLATE | |
| 5 | 01010-80820 | BOLT | |
| 6 | 01643-30823 | WASHER | |
| 7 | 20Y-62-22271 | ELBOW | |
| 8 | 201-60-11390 | O-RING | |
| 9 | 20Y-62-19560 | O-RING | |
| 10 | 07002-11423 | O-RING | |
| 11 | 14X-43-14840 | ELBOW | |
| 12 | 201-60-11390 | O-RING | |
| 13 | 20Y-62-19560 | O-RING | |
| 14 | 07002-11423 | O-RING | |
| 15 | 20Y-62-16630 | NIPPLE | |
| 16 | 201-60-11390 | O-RING | |
| 17 | 20Y-62-19560 | O-RING | |
| 18 | 07002-11423 | O-RING | |
| 19 | 206-06-61130 | SWITCH | |
| 20 | 20Y-06-22430 | WIRING HARNESS | |
| 21 | 08053-01512 | CLIP | |
| 22 | 01010-81225 | BOLT | |
| 23 | 01643-31232 | WASHER | |
| 24 | 207-62-73370 | HOSE, 1800MM | |
| 25 | 20Y-62-22810 | BAND, YELLOW | |
| 26 | 20Y-62-42510 | HOSE, 1500MM | |
| 27 | 08034-20536 | BAND | |
| 28 | 08034-20536 | BAND | |
| 29 | 207-62-73370 | HOSE, 1800MM | |
| 30 | 20Y-62-22840 | BAND, BLACK | |
| 31 | 20Y-62-22860 | BAND, BROWN | |
| 32 | 20Y-62-42510 | HOSE, 1500MM |
