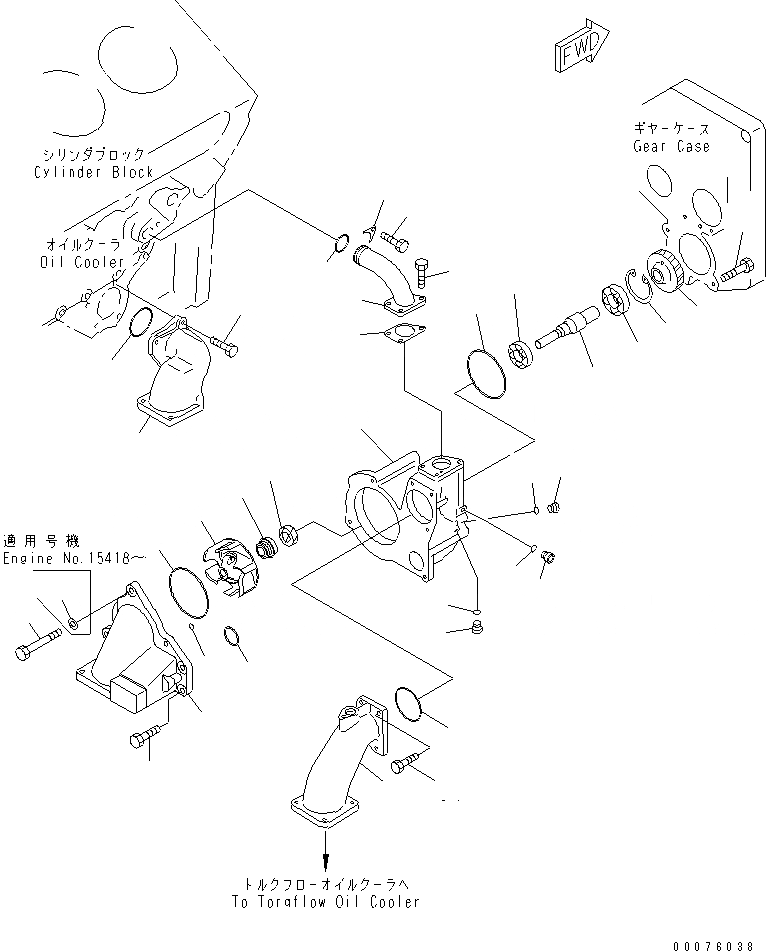

Запчасти водяная помпа (без антикорроз. элемента)(№7-) самосвалы hd985-5 s/n 1021-up Komatsu



|$2 6219-61-1100 WATER PUMP ASS'Y
|$3 6215-61-1506 WATER PUMP ASS'Y
|$4 6215-61-1505 WATER PUMP ASS'Y
1 BODY
1 BODY
2 6219-61-1470 IMPELLER
2 6215-61-1451 IMPELLER
3 6219-61-1230 SHAFT
3 6215-61-1221 SHAFT
4 6215-61-1160 GEAR
5 6166-61-1511 SEAL, WATER
5 6162-63-1515 SEAL, WATER
5 6162-63-1514 SEAL, WATER (K6)
6 6150-61-1510 SEAL,OIL
6 6215-61-1180 SEAL,OIL
7 06330-06206 BEARING,BALL
7 06030-06206 BEARING,BALL
8 06340-06306 BEARING,BALL
8 06330-06306 BEARING,BALL
8 06030-06306 BEARING,BALL
9 6162-63-1440 RING,SNAP
10 6215-81-9520 PLUG
11 6215-81-9720 O-RING
12 6219-61-1120 HOUSING
12 6216-61-1120 HOUSING
13 07000-G2140 O-RING
13 07000-02140 O-RING (K6)
14 07000-A2060 O-RING
14 07000-02060 O-RING (K6)
15 07000-A2016 O-RING
15 07000-72016 O-RING (K6)
16 01010-81230 BOLT
17 07000-72100 O-RING (K6)
18 01011-81265 BOLT
18A 01643-31232 WASHER
19 01011-81210 BOLT
20 6215-61-6530 GASKET (K6)
21 6215-61-6510 TUBE
22 6215-61-6520 PLATE
23 01010-81020 BOLT
24 07000-G3045 O-RING (K6)
25 01010-81025 BOLT
26 01010-81040 BOLT
27 6215-61-7310 CONNECTOR
28 6215-61-7320 CONNECTOR
29 07000-G2080 O-RING (K6)
30 07000-G2090 O-RING (K6)
31 01010-81025 BOLT
1
2
3
4
5
6
7
8
9
10
10
10
11
11
11
12
13
14
15
16
17
18
18A
19
20
21
22
23
24
25
26
27
28
29
30
31
