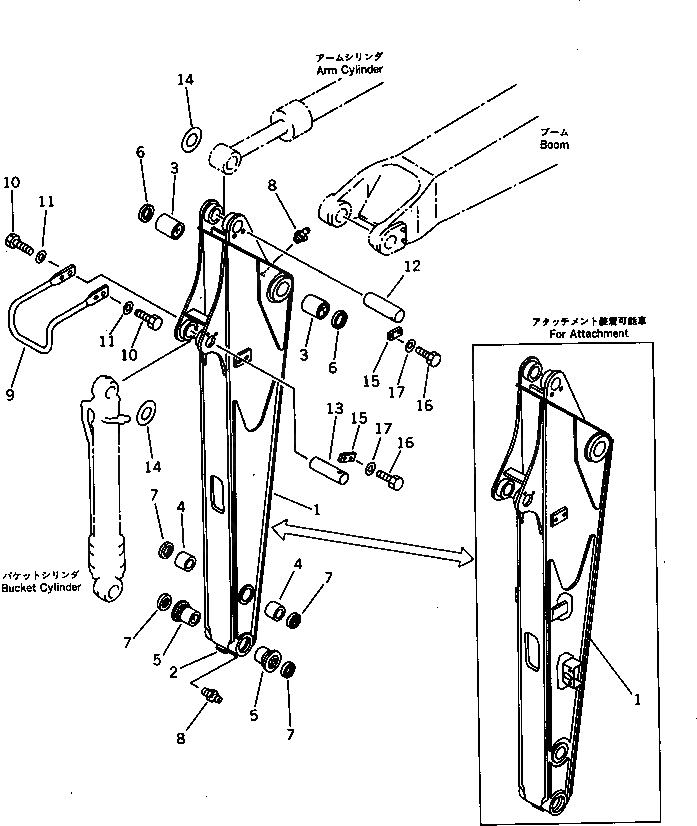

| |1 | 201-70-00550 | ARM ASS'Y | |
| |1 | 201-973-0040 | ARM ASS'Y,(FOR ATTACHMENT) | |
| 1 | ARM | ||
| |1 | ARM,(FOR ATTACHMENT) | ||
| 2 | 20X-70-22130 | BOSS (WELDED) | |
| 3 | 20X-70-22120 | BUSHING | |
| 4 | 201-70-22141 | BUSHING | |
| 5 | 20X-70-22140 | BUSHING | |
| 6 | 07145-00060 | SEAL,DUST | |
| 7 | 130-09-12931 | SEAL,DUST | |
| 8 | 07020-00000 | FITTING,GREASE | |
| 9 | 201-70-62520 | PIPE | |
| 10 | 01010-51025 | BOLT | |
| 11 | 01643-31032 | WASHER | |
| 12 | 201-70-61260 | PIN | |
| 13 | 20X-70-32210 | PIN | |
| 14 | 203-70-24150 | SPACER¤ 1.0MM | |
| 15 | 04082-00212 | LOCK | |
| 16 | 01010-51230 | BOLT | |
| 17 | 01643-31232 | WASHER |
