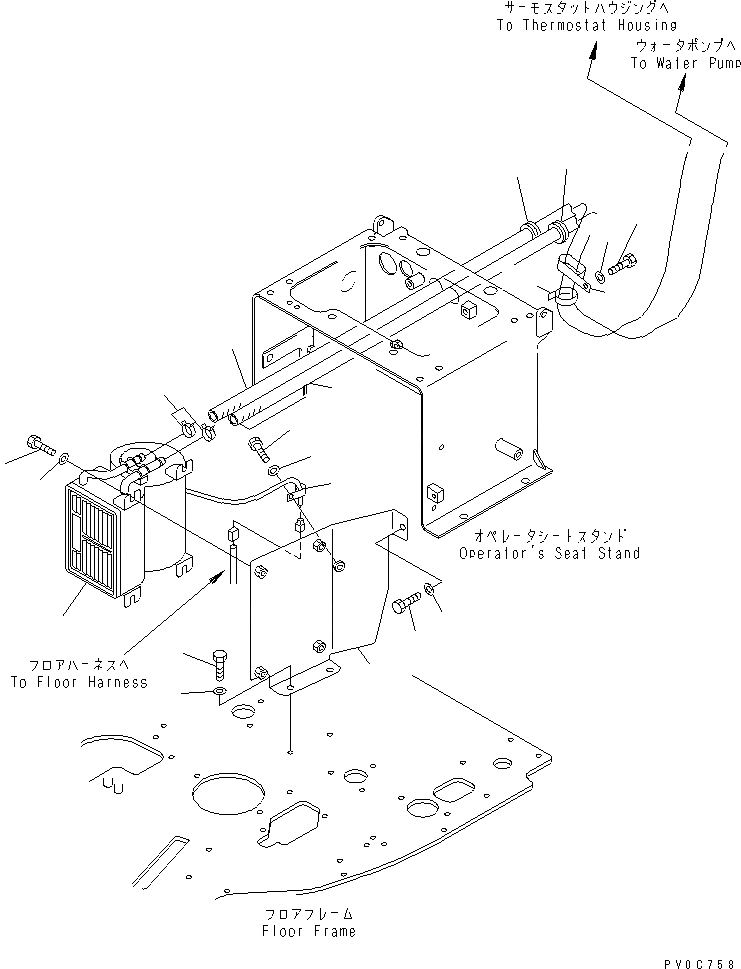

| 1 | 20S-06-21460 | HEATER ASS'Y | |
| 2 | 22M-977-1111 | BRACKET | |
| 3 | 04434-51010 | CLIP | |
| 4 | 01010-81020 | BOLT | |
| 5 | 01643-31032 | WASHER | |
| 6 | 01010-81025 | BOLT | |
| 7 | 01643-31032 | WASHER | |
| 8 | 01010-81030 | BOLT | |
| 9 | 01643-31032 | WASHER | |
| 10 | 11Y-09-11160 | CLIP | |
| 11 | 08037-02512 | GROMMET | |
| 12 | 09483-80425 | HOSE | |
| 13 | 04435-52210 | CLIP | |
| 14 | 01010-81020 | BOLT | |
| 15 | 01643-31032 | WASHER | |
| 16 | 08034-20414 | BAND |
