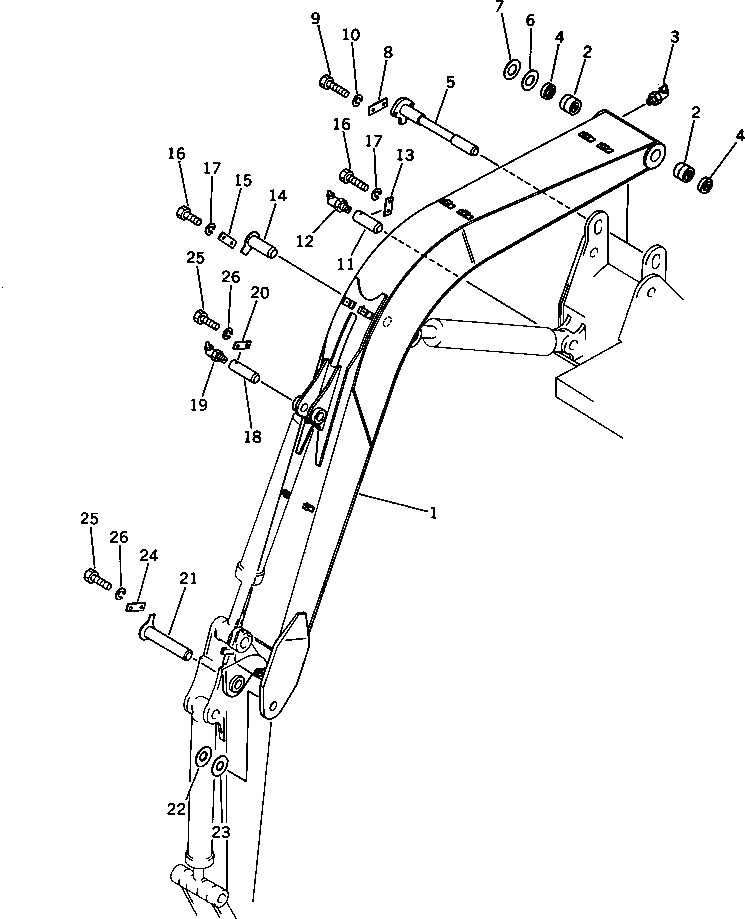

| |$0 | 201-70-00310 | BOOM ASS'Y | |
| 1 | BOOM | ||
| 2 | 201-70-21181 | BUSHING | |
| 3 | 07020-00675 | FITTING | |
| 4 | 07145-00060 | SEAL | |
| 5 | 201-70-21130 | PIN | |
| 6 | 201-70-21290 | SPACER, 1.0MM | |
| 7 | 20B-46-21180 | PLATE, 1.0MM | |
| 8 | 201-70-21210 | PLATE | |
| 9 | 01010-31230 | BOLT | |
| 10 | 01602-01236 | WASHER | |
| 11 | 201-70-21140 | PIN | |
| 12 | 07020-00675 | FITTING | |
| 13 | 04082-00212 | LOCK | |
| 14 | 201-70-41130 | PIN | |
| 15 | 201-70-21210 | PLATE | |
| 16 | 01010-31230 | BOLT | |
| 17 | 01602-01236 | WASHER | |
| 18 | 201-70-21160 | PIN | |
| 19 | 07020-00675 | FITTING | |
| 20 | 04082-00212 | LOCK | |
| 21 | 201-70-41120 | PIN | |
| 22 | 201-70-21290 | SPACER, 1.0MM | |
| 23 | 20B-46-21180 | PLATE, 1.0MM | |
| 24 | 201-70-21210 | PLATE | |
| 25 | 01010-31230 | BOLT | |
| 26 | 01602-01236 | WASHER |
