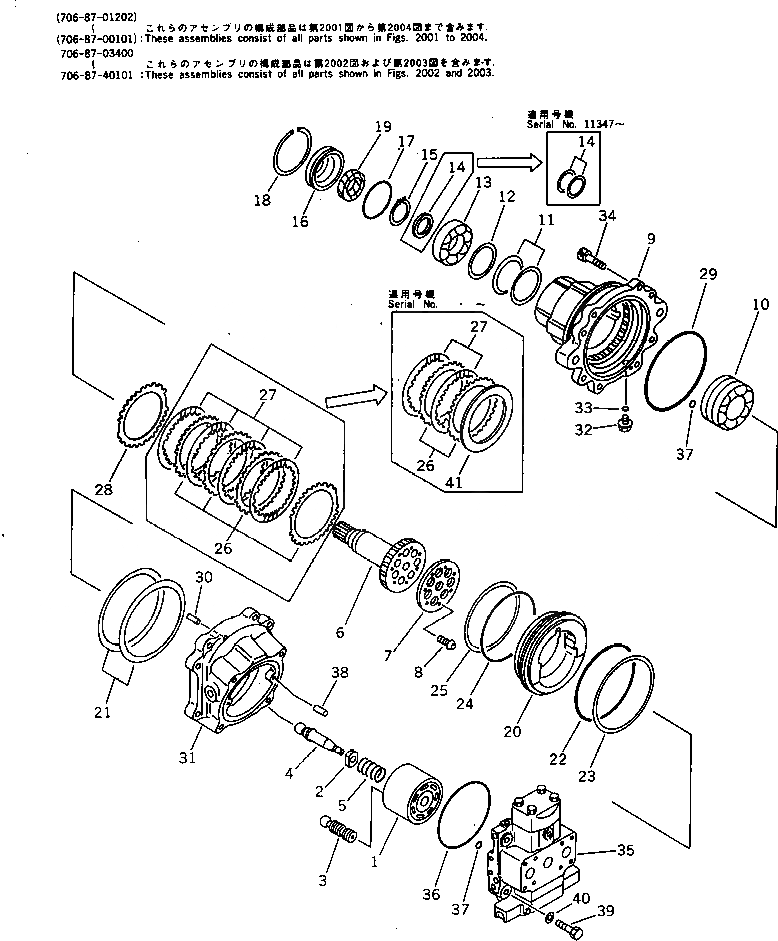

Запчасти мотор хода (/) экскаваторы pc400lc-3 s/n 11001-up Komatsu

\|1	706-87-01202	TRAVEL MOTOR ASS'Y
\|1	706-87-01201	TRAVEL MOTOR ASS'Y
\|1	706-87-01200	TRAVEL MOTOR ASS'Y
\|1	706-87-00101	TRAVEL MOTOR ASS'Y
\|1	706-87-03400	MOTOR ASS'Y
\|1	706-87-03105	MOTOR ASS'Y
\|1	706-87-03104	MOTOR ASS'Y
\|1	706-87-40103	MOTOR ASS'Y
\|1	706-87-40102	MOTOR ASS'Y
\|1	706-87-40101	MOTOR ASS'Y
\|1	706-77-00030	CYLINDER BLOCK ASS'Y
1		BLOCK
\|1	706-87-40190	BLOCK,CYLINDER
\|1		BLOCK,CYLINDER
2		RING,CENTER
\|2		RING,CENTER
3	706-77-42160	PISTON SUB ASS'Y
4	706-77-42081	SHAFT,CENTER
5	706-77-42110	SPRING
6	706-77-42861	SHAFT,DRIVE
\|6	706-77-42860	SHAFT,DRIVE
7	706-77-42260	RETAINER
8	706-75-41271	SCREW
9	706-77-42012	CASE,BRAKE
\|9	706-77-42011	CASE,BRAKE
10	706-77-42881	BEARING
\|10	706-77-42880	BEARING
11	706-77-42051	SPRING
\|11	706-77-42050	SPRING
12	706-77-42041	SEAT
\|12	706-77-42040	SEAT
13	706-77-42890	BEARING
14	706-77-05010	SPACER KIT
\|14		SPACER¤ 2.3MM
\|14		SPACER¤ 2.5MM
\|14		SPACER¤ 2.7MM
\|14	706-77-42030	SPACER
15	04064-06525	RING,SNAP
16	706-77-42060	COVER
17	07000-02115	O-RING
18	04071-00130	RING,SNAP
19	706-77-42950	SEAL,OIL
\|19	706-77-42920	SEAL,OIL
20	706-77-91480	PISTON,BRAKE
\|20	706-77-91381	PISTON,BRAKE
21	706-77-91410	SPRING
22	07000-15220	O-RING
23	07001-05220	RING,BACK-UP
24	07000-15200	O-RING
25	07001-05200	RING,BACK-UP
26	706-77-91341	PLATE
\|26	4706-77-91341	PLATE
27	706-77-91350	DISC
\|27	4706-77-91350	DISC
28	706-77-91331	PLATE
29	07000-05250	O-RING
30	706-75-42830	PIN,DOWEL
\|30	04020-01024	PIN,DOWEL
31	706-87-40812	CASE,MOTOR
\|31	706-87-40811	CASE,MOTOR
32	706-73-71450	PLUG
33	07002-11423	O-RING
34	706-87-40160	BOLT
35	706-87-00010	END COVER SUB ASS'Y
\|35	706-87-00030	END COVER SUB A.
36	07000-05200	O-RING
37	07000-12010	O-RING
38	04020-01024	PIN,DOWEL
39	01010-52085	BOLT
40	01643-32060	WASHER
41	706-77-91360	SPACER
