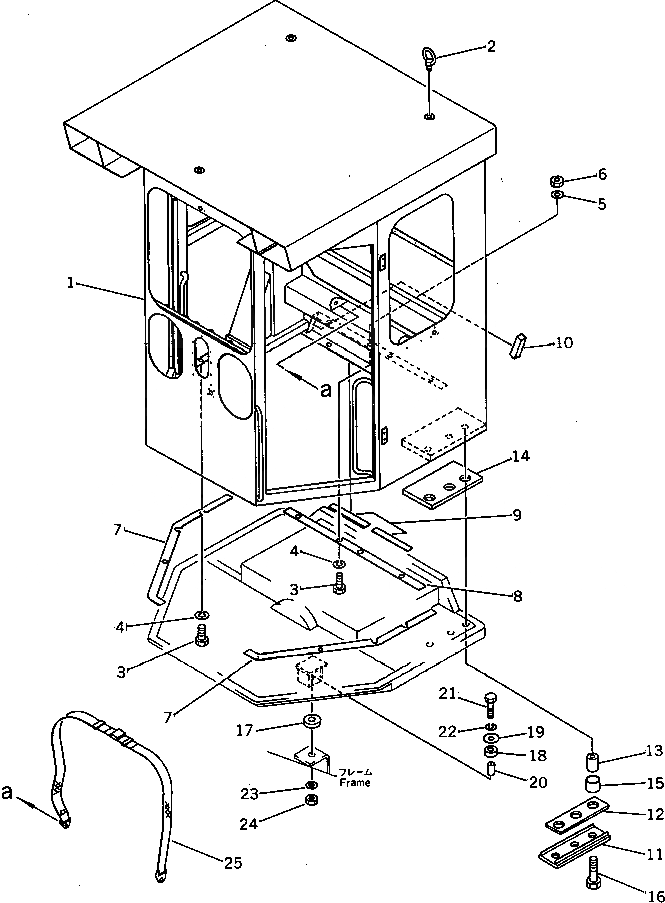

| |$0 | 234-957-0030 | ROPS CAB ASSY | |
| 1 | 234-957-3110 | CAB | |
| 2 | 04530-12030 | BOLT | |
| 3 | 01010-51030 | BOLT | |
| 4 | 01602-21030 | WASHER | |
| 5 | 01643-31032 | WASHER | |
| 6 | 01580-11008 | NUT | |
| 7 | 234-957-3130 | . | |
| 8 | 234-855-2270 | CUSHION | |
| 9 | 234-885-3140 | CUSHION | |
| 10 | 234-801-1930 | SEAT | |
| 11 | 234-957-1120 | PLATE | |
| 12 | 234-957-1130 | SEAT | |
| 13 | 234-957-1140 | BUSHING | |
| 14 | 234-957-1150 | SEAT | |
| 15 | 232-957-1170 | SPACER | |
| 16 | 01011-83055 | BOLT | |
| 17 | 237-54-11280 | CUSHION | |
| 18 | 237-54-11270 | CUSHION | |
| 19 | 234-54-11480 | PLATE | |
| 20 | 234-54-11470 | COLLAR | |
| 21 | 01010-51695 | BOLT | |
| 22 | 01602-21648 | WASHER | |
| 23 | 01643-31645 | WASHER | |
| 24 | 01580-11613 | NUT | |
| 25 | 09409-10000 | BELT |
