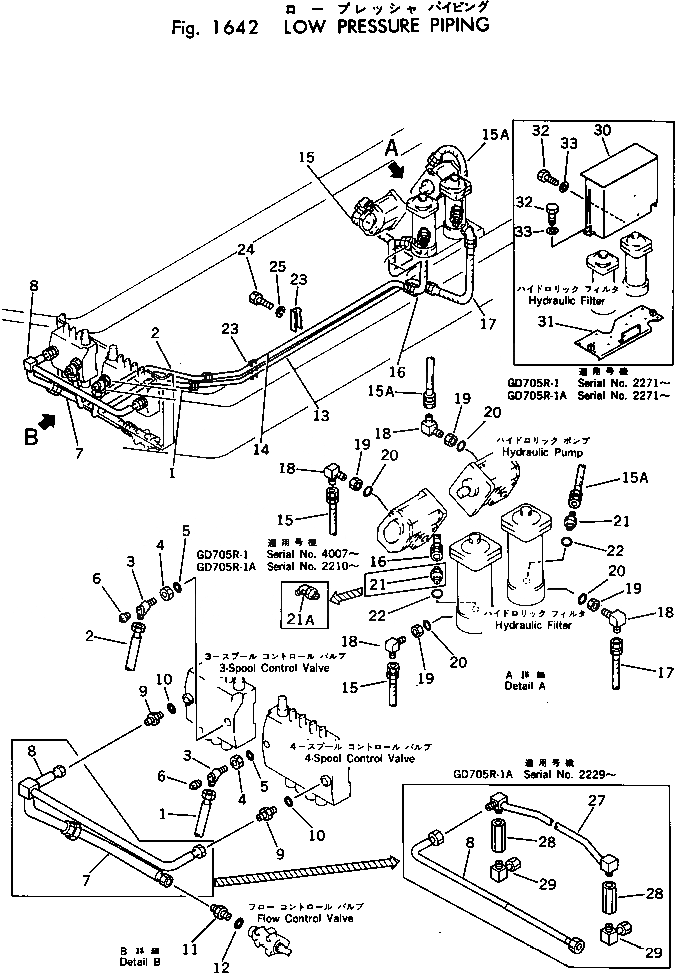

| 1 | 234-60-21113 | TUBE | |
| 2 | 234-60-21123 | TUBE | |
| 3 | 07231-10422 | ELBOW | |
| 4 | 07239-12009 | NUT | |
| 5 | 07002-12034 | O-RING (KIT) | |
| 6 | 07042-20108 | PLUG | |
| 7 | 234-60-21132 | TUBE | |
| 8 | 234-60-21340 | TUBE | |
| |8 | 234-60-21143 | TUBE | |
| 9 | 07230-10422 | UNION | |
| 10 | 07002-12434 | O-RING (KIT) | |
| 11 | 07230-10623 | UNION | |
| 12 | 07002-12434 | O-RING (KIT) | |
| 13 | 234-60-15133 | TUBE | |
| 14 | 234-60-21223 | TUBE | |
| 15 | 07108-20507 | HOSE | |
| 15A | 07108-20508 | HOSE | |
| |15A | 07108-20507 | HOSE | |
| 16 | 07108-20504 | HOSE | |
| |16 | 07108-20505 | HOSE | |
| 17 | 07108-20505 | HOSE | |
| |17 | 07108-20506 | HOSE | |
| 18 | 07232-10522 | ELBOW | |
| 19 | 07239-12410 | NUT | |
| 20 | 07002-12434 | O-RING (KIT) | |
| 21 | 07230-10522 | UNION | |
| |21 | 07230-10522 | UNION | |
| 21A | 07236-10522 | ELBOW | |
| 22 | 07002-12434 | O-RING (KIT) | |
| 23 | 234-60-15420 | CLIP | |
| 24 | 01010-51055 | BOLT | |
| 25 | 01602-21030 | WASHER | |
| 26 | 01580-01008 | NUT | |
| 27 | 234-60-21330 | TUBE | |
| 28 | 232-860-5441 | VALVE | |
| |28 | 232-860-5440 | VALVE | |
| 29 | 234-60-21270 | ELBOW | |
| 30 | 234-60-16160 | COVER | |
| 31 | 234-04-11390 | COVER | |
| 32 | 01010-51020 | BOLT | |
| 33 | 01602-21030 | WASHER |
