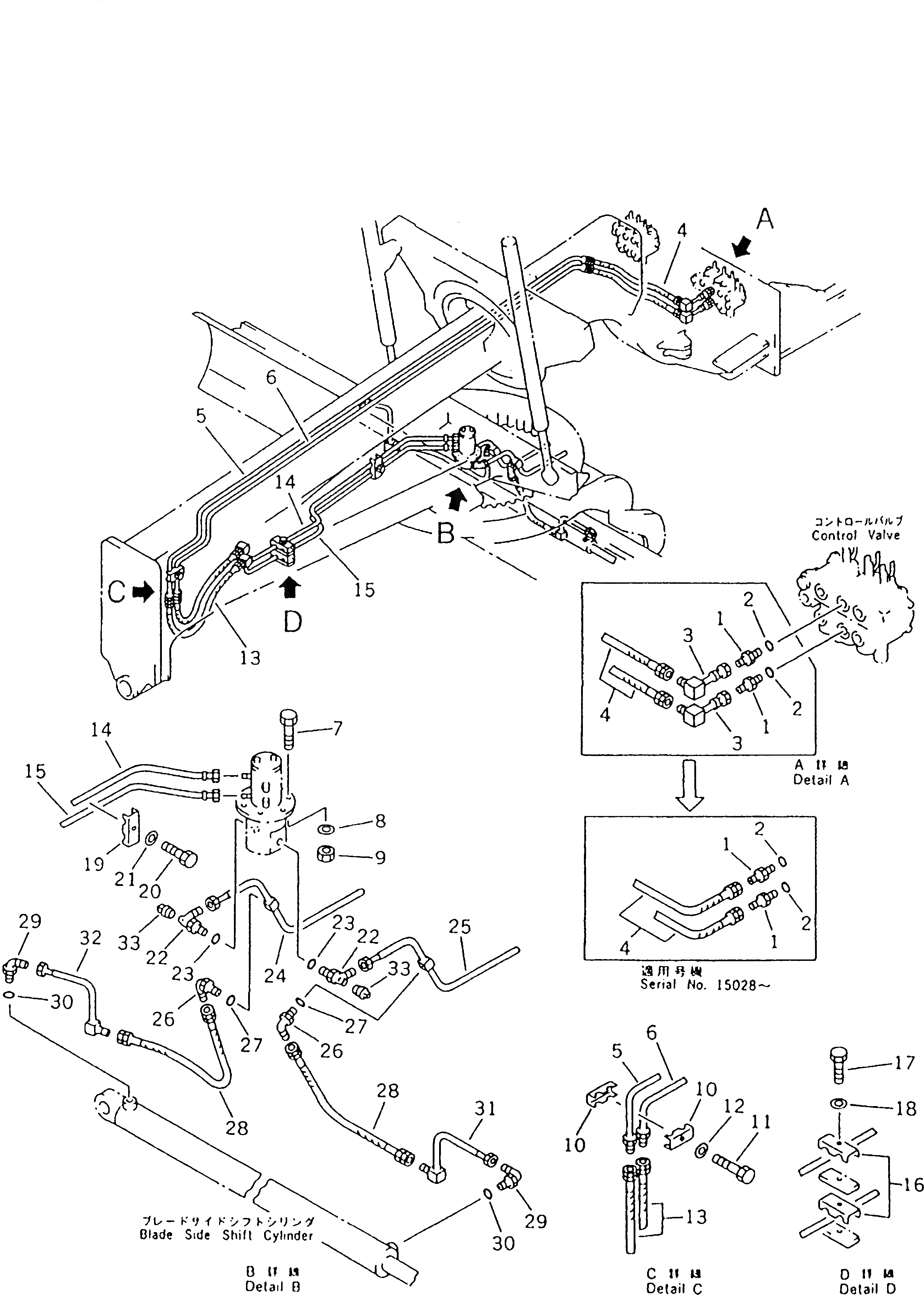

| 1 | 237-60-23120 | NIPPLE | |
| 2 | 07000-12018 | O-RING | |
| 3 | 23B-60-14970 | TUBE | |
| 4 | 230-09-03100 | HOSE | |
| 4 | 230-09-03080 | HOSE | |
| 5 | 23A-60-14850 | TUBE | |
| 6 | 23A-60-14860 | TUBE | |
| 7 | 01010-51245 | BOLT | |
| 8 | 01643-31232 | WASHER | |
| 9 | 01580-11210 | NUT | |
| 10 | 232-60-54830 | CLIP | |
| 11 | 01010-51045 | BOLT | |
| 12 | 01641-21016 | WASHER | |
| 13 | 07113-00312 | HOSE | |
| 14 | 23A-60-15430 | TUBE | |
| 15 | 23A-60-15440 | TUBE | |
| 16 | 237-60-14130 | CLIP | |
| 17 | 01010-51020 | BOLT | |
| 18 | 01643-31032 | WASHER | |
| 19 | 237-60-14130 | CLIP | |
| 20 | 01010-51020 | BOLT | |
| 21 | 01643-31032 | WASHER | |
| 22 | 07235-50422 | ELBOW | |
| 23 | 07002-12034 | O-RING | |
| 24 | 23A-60-15190 | TUBE | |
| 25 | 23A-60-15180 | TUBE | |
| 26 | 07235-10315 | ELBOW | |
| 27 | 07002-12034 | O-RING | |
| 28 | 230-09-03060 | HOSE | |
| 29 | 07235-10422 | ELBOW | |
| 30 | 07002-12034 | O-RING | |
| 31 | 23A-60-15210 | TUBE | |
| 32 | 23A-60-15220 | TUBE | |
| 33 | 07042-20108 | PLUG |
