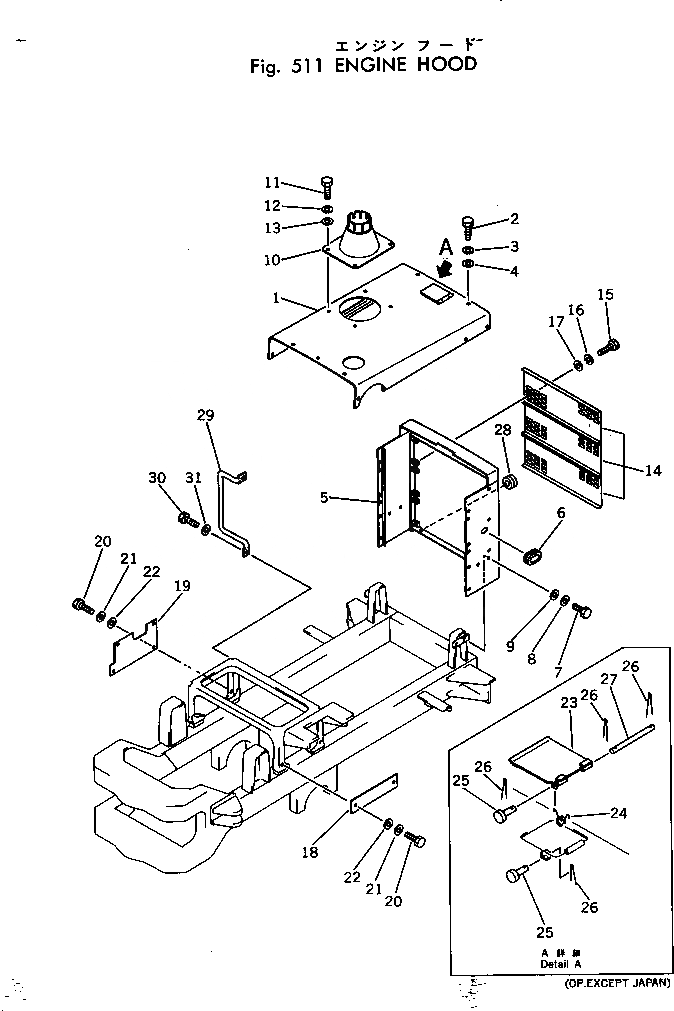

| 1 | 238-54-12650 | HOOD | |
| 2 | 01010-51025 | BOLT | |
| 3 | 01602-21030 | WASHER | |
| 4 | 234-54-13252 | WASHER | |
| 5 | 233-54-22110 | GRILLE | |
| 6 | 08037-03614 | GROMMET | |
| 7 | 01010-51025 | BOLT | |
| 8 | 01602-21030 | WASHER | |
| 9 | 01643-31032 | WASHER | |
| 10 | 238-54-12660 | SUPPORT | |
| 11 | 01010-51025 | BOLT | |
| 12 | 01602-21030 | WASHER | |
| 13 | 234-54-13252 | WASHER | |
| 14 | 233-54-22130 | PANEL | |
| 15 | 01010-51225 | BOLT | |
| 16 | 01602-21236 | WASHER | |
| 17 | 01643-31232 | WASHER | |
| 18 | 238-54-12670 | PLATE | |
| 19 | 238-54-12680 | PLATE | |
| 20 | 01010-51030 | BOLT | |
| 21 | 01602-21030 | WASHER | |
| 22 | 01643-31032 | WASHER | |
| 23 | 233-54-22510 | COVER | |
| 24 | 233-54-22520 | SPRING | |
| 25 | 04205-10616 | PIN | |
| 26 | 04050-11610 | PIN | |
| 27 | 131-54-11270 | PIN | |
| 28 | 08037-01008 | GROMMET | |
| 29 | 238-54-12690 | STAY | |
| 30 | 01010-51030 | BOLT | |
| 31 | 01602-21030 | WASHER |
