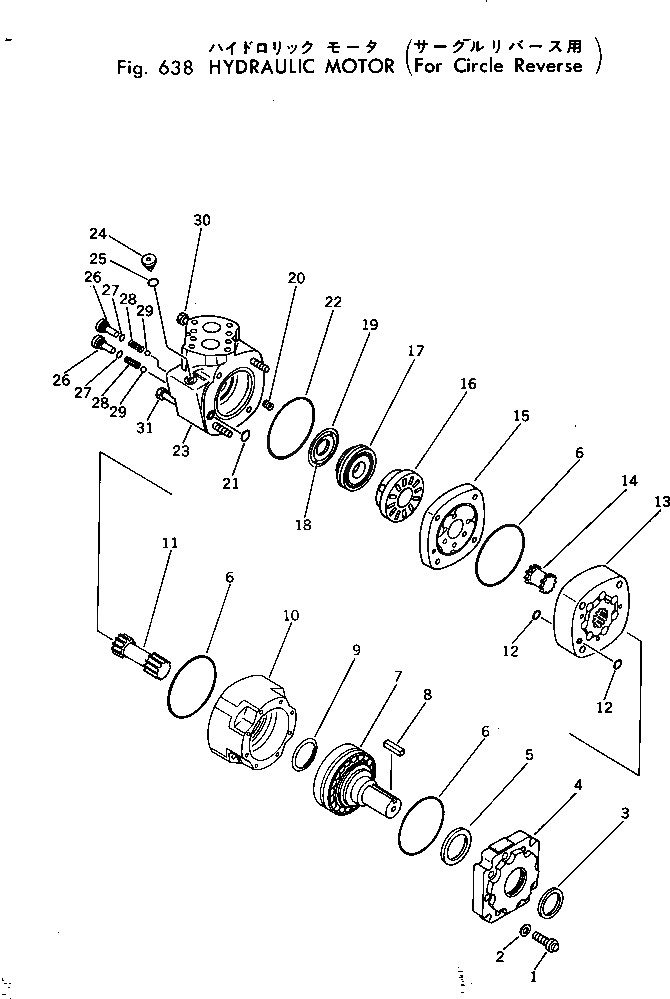

Запчасти гидравл мотор грейдеры gd505a-2 s/n 50003-up Komatsu
|
|
|$0 |
232-62-11100 |
MOTOR ASS'Y
|
|
|
1 |
232-62-11110 |
SCREW
|
|
|
2 |
|
WASHER,(A) (KIT)
|
|
|
3 |
|
SEAL,(A) (KIT)
|
|
|
4 |
232-62-11140 |
RETAINER,FRONT
|
|
|
5 |
|
SEAL,(A) (KIT)
|
|
|
6 |
|
O-RING,(A,B) (KIT)
|
|
|
7 |
232-62-00030 |
SHAFT ASS'Y
|
|
|
8 |
232-62-11170 |
KEY
|
|
|
9 |
|
SEAL,(A) (KIT)
|
|
|
10 |
232-62-11190 |
HOUSING
|
|
|
11 |
232-62-11210 |
DRIVE
|
|
|
12 |
|
O-RING,(B) (KIT)
|
|
|
13 |
232-62-11230 |
GEROLER
|
|
|
14 |
232-62-11240 |
DRIVE
|
|
|
15 |
232-62-11250 |
PLATE
|
|
|
16 |
232-62-11260 |
VALVE
|
|
|
17 |
232-62-11270 |
PLATE ASS'Y
|
|
|
18 |
|
SEAL,(B) (KIT)
|
|
|
19 |
|
SEAL,(B) (KIT)
|
|
|
20 |
232-62-11310 |
SPRING
|
|
|
21 |
|
O-RING,(B) (KIT)
|
|
|
22 |
|
O-RING,(B) (KIT)
|
|
|
22 |
232-62-00050 |
HOUSING ASS'Y
|
|
|
23 |
|
HOUSING
|
|
|
24 |
|
PLUG
|
|
|
25 |
232-62-11370 |
O-RING,(B) (KIT)
|
|
|
26 |
|
PLUG ASS'Y,CHECK
|
|
|
27 |
|
O-RING,(B) (KIT)
|
|
|
28 |
232-62-11390 |
SPRING
|
|
|
29 |
232-62-11340 |
BALL
|
|
|
30 |
232-62-11350 |
BOLT
|
|
|
31 |
232-62-11360 |
BOLT
|
