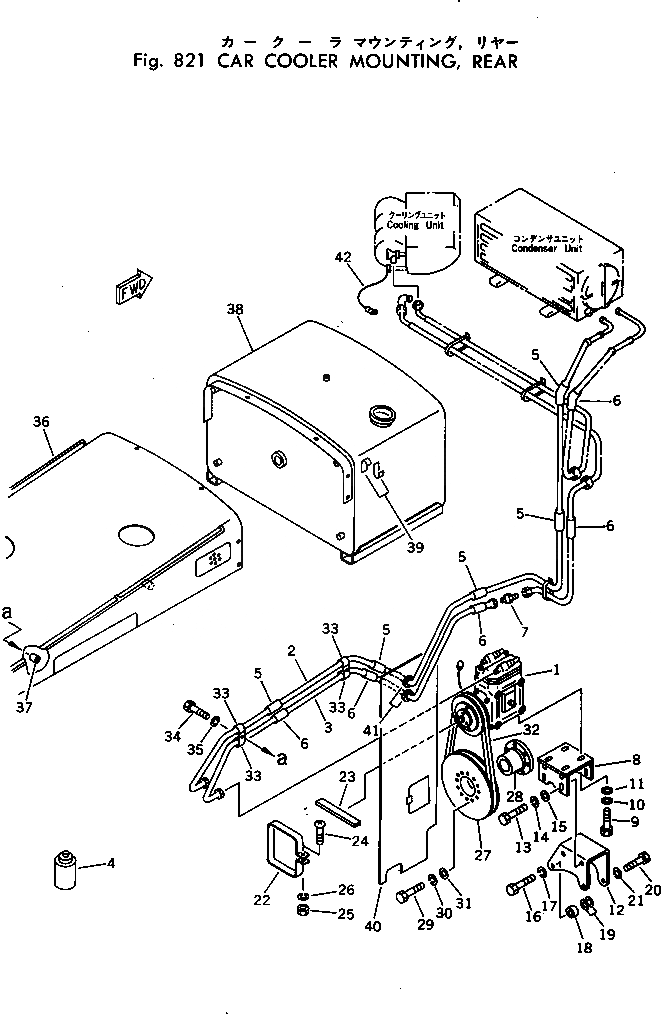

| 1 | 232-809-2300 | COMPRESSOR ASS'Y | |
| 2 | 232-809-3210 | HOSE | |
| 3 | 232-809-3260 | HOSE | |
| 4 | GAS | ||
| 5 | 232-809-1730 | INSULATOR | |
| 6 | 232-809-1740 | INSULATOR | |
| 7 | 232-809-1870 | UNION | |
| 8 | 232-809-1440 | BRACKET | |
| 9 | 01010-50835 | BOLT | |
| 10 | 01602-20825 | WASHER | |
| 11 | 01643-30823 | WASHER | |
| 12 | 232-809-1310 | BRACKET | |
| 13 | 01010-51225 | BOLT | |
| 14 | 01602-21236 | WASHER | |
| 15 | 01643-31232 | WASHER | |
| 16 | 02030-70783 | BOLT | |
| 17 | 01602-21134 | WASHER | |
| 18 | 232-809-2110 | SEAT | |
| 19 | 232-809-1480 | SHIM | |
| 20 | 02030-70744 | BOLT | |
| 21 | 01602-21134 | WASHER | |
| 22 | 232-809-3120 | COVER | |
| 23 | 232-809-3130 | SEAT | |
| 24 | 01220-40410 | SCREW | |
| 25 | 01580-10403 | NUT | |
| 26 | 01602-20410 | WASHER | |
| 27 | 232-809-1320 | PULLEY | |
| 28 | 232-809-3140 | PLATE | |
| 29 | 01010-51245 | BOLT | |
| 30 | 01602-21226 | WASHER | |
| 31 | 01640-21223 | WASHER | |
| 32 | 232-809-1770 | V-BELT | |
| 33 | 08036-02514 | CLIP | |
| 34 | 01010-51016 | BOLT | |
| 35 | 01602-21030 | WASHER | |
| 36 | 232-809-3160 | BONNET,(MODIFIED PARTS) | |
| 37 | 01571-01016 | SEAT (WELDED) | |
| 38 | 232-809-3180 | TANK,(MODIFIED PARTS) | |
| 39 | 565-44-13250 | CLIP (WELDED) | |
| 40 | 232-809-3170 | COVER,(MODIFIED PARTS) | |
| 41 | 08037-02512 | GROMMET | |
| 42 | 232-809-1690 | HARNESS |
