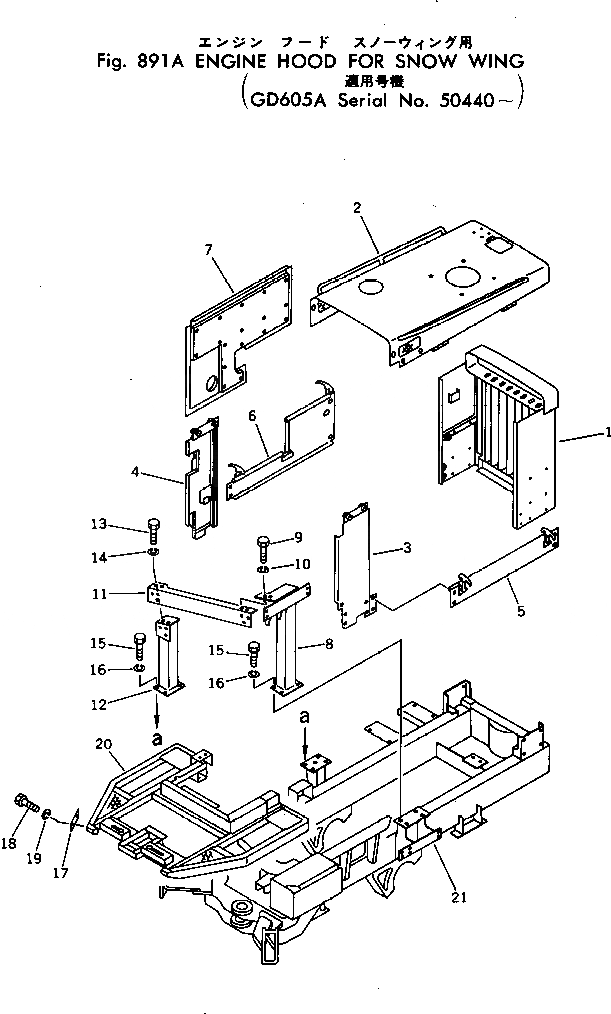

Запчасти капот (для snow wing)(№-) грейдеры gd605a-1 s/n 50002-up Komatsu



1 232-972-1470 GRILLE,(MODIFIED PARTS)
2 232-972-1440 BONNET,(MODIFIED PARTS)
3 232-972-1460 COVER,(MODIFIED PARTS)
4 232-972-1450 COVER
5 232-972-1520 PLATE,(MODIFIED PARTS)
6 232-972-1480 PLATE
7 232-972-1510 PANEL
8 232-972-1110 BRACKET
9 01010-51645 BOLT
10 01602-21648 WASHER
11 232-972-1120 BRACKET
12 232-972-1130 BRACKET
13 01010-51635 BOLT
14 01602-21648 WASHER
15 01010-51645 BOLT
16 01602-21648 WASHER
17 232-860-5870 PLATE
18 01010-51225 BOLT
19 01602-21236 WASHER
20 232-972-0110 FRAME,(MODIFIED PARTS)
21 232-972-1160 FRAME,(MODIFIED PARTS)
