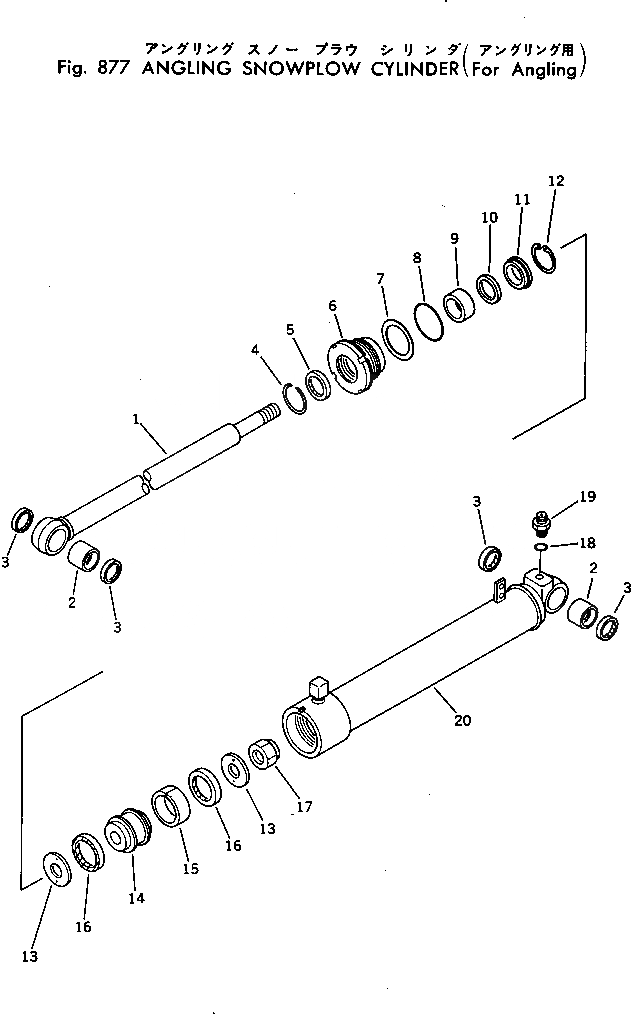

| |1 | 232-63-86100 | CYLINDER ASS'Y | |
| 1 | 232-63-86120 | ROD | |
| 2 | 07143-10405 | BUSHING | |
| 3 | 07145-00045 | SEAL | |
| 4 | 07179-00069 | RING | |
| 5 | 07016-00507 | SEAL | |
| 6 | 20D-63-96130 | HEAD | |
| 7 | 07001-02095 | RING | |
| 8 | 07000-12095 | O-RING | |
| 9 | 07177-05030 | BUSHING | |
| 10 | 232-63-62173 | PACKING | |
| 11 | 20D-63-96190 | RETAINER | |
| 12 | 04065-07025 | RING | |
| 13 | 232-63-63180 | RETAINER | |
| 14 | 232-63-63270 | PISTON | |
| 15 | 07155-00925 | RING | |
| 16 | 232-63-12451 | PACKING | |
| 17 | 07165-13033 | NUT | |
| 18 | 07002-12034 | O-RING | |
| 19 | 07230-10422 | UNION | |
| 20 | 232-63-86140 | CYLINDER |
