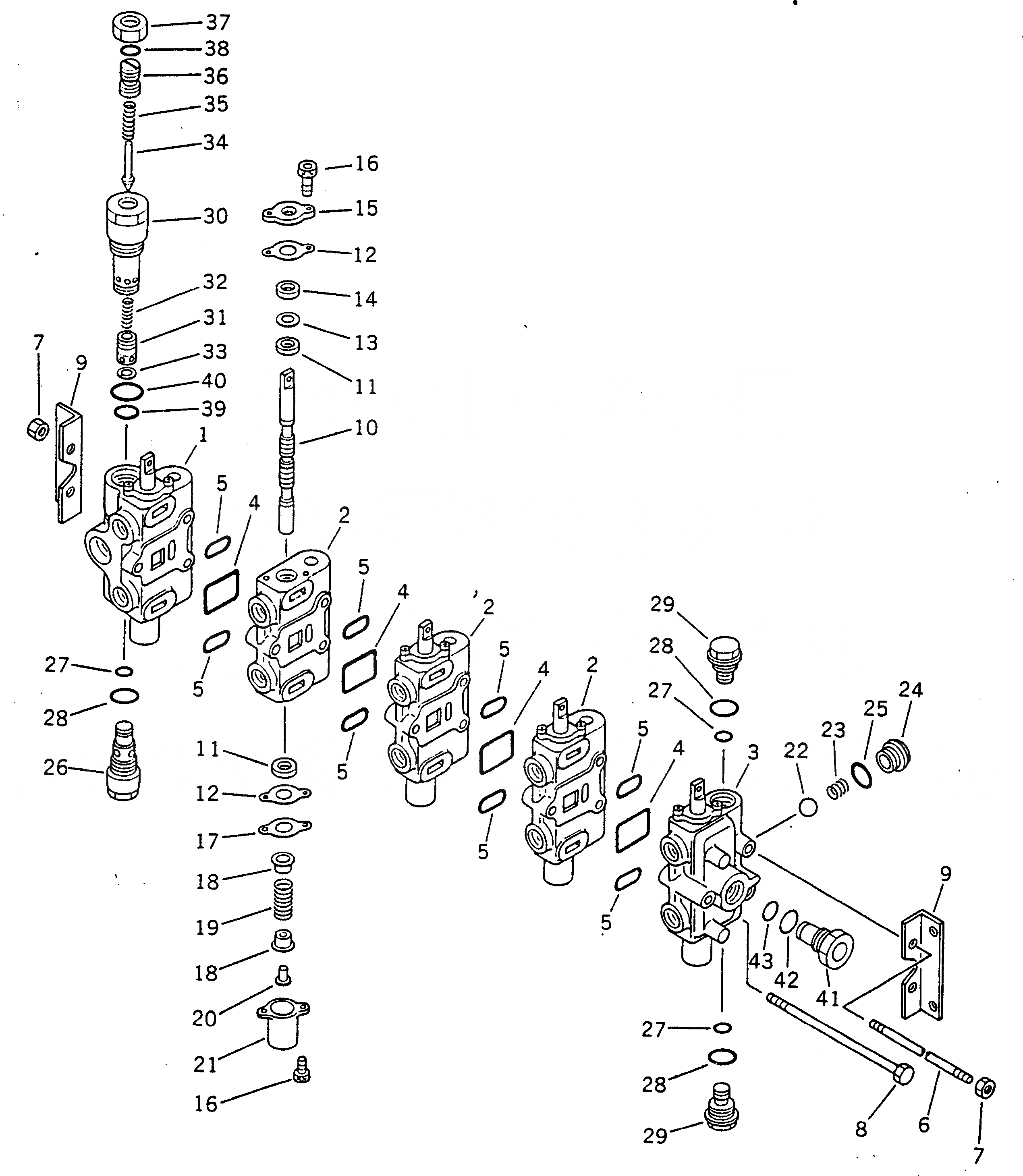

Запчасти гидравл управляющ. клапан грейдеры gd605a-3 s/n 57001-up (for u.s.a. / chassis only) Komatsu



|$0 700-25-22000 VALVE ASS'Y
1 700-22-11121 BODY
2 700-22-11141 BLOCK
3 700-22-12150 COVER
4 07000-13040 O-RING
5 700-22-11450 O-RING
6 700-25-11110 STUD
7 01580-10806 NUT
8 700-25-11120 BOLT
9 700-22-11220 ANGLE
10 700-22-11710 SPOOL
11 700-22-11252 U-PACKING
12 700-22-11420 GASKET
13 700-22-11430 COLLAR
14 700-22-11261 SEAL
15 700-22-11270 PLATE
16 01252-30616 BOLT
17 700-22-11281 PLATE
18 700-22-11290 RETAINER
19 700-22-11311 SPRING
20 700-22-11320 PLUG
21 700-22-11331 COVER
22 700-22-12340 BALL
23 700-22-12350 SPRING
24 700-22-11351 PLUG
25 07002-12434 O-RING
26 700-22-11380 PLUG
27 07000-12014 O-RING
28 07002-02434 O-RING
29 700-22-11360 PLUG
29 700-24-56000 VALVE ASS'Y
30 700-20-51410 SLEEVE
31 700-20-51420 VALVE
32 700-20-51430 SPRING
33 700-20-51240 RING
34 700-80-61190 POPPET
35 700-20-51350 SPRING
36 700-20-51340 SCREW
37 01583-11408 NUT
38 07000-02011 O-RING
39 700-22-11410 O-RING
40 07002-02434 O-RING
41 232-60-66410 NIPPLE
42 07002-12434 O-RING
43 700-23-11410 O-RING
