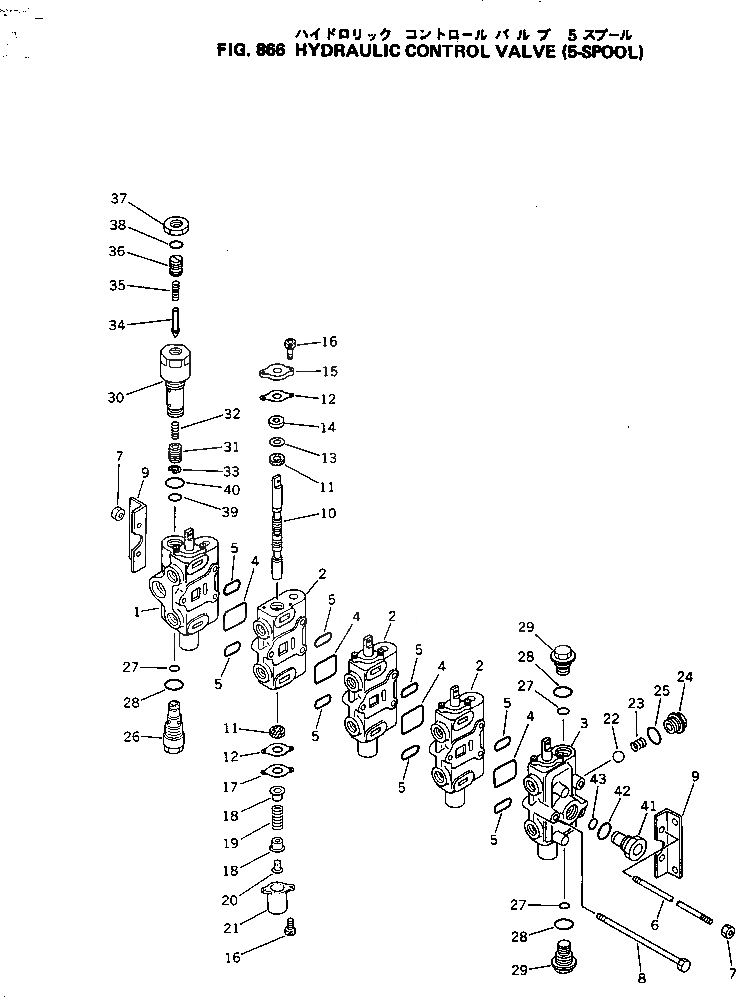

| |1 | 700-25-11001 | VALVE ASS'Y | |
| 1 | BODY | ||
| 2 | BLOCK | ||
| 3 | COVER | ||
| 4 | 07000-13040 | O-RING | |
| 5 | 700-22-11450 | O-RING | |
| 6 | 700-25-11110 | STUD | |
| 7 | 01580-10806 | NUT | |
| 8 | 700-25-11120 | BOLT | |
| 9 | 700-22-11220 | ANGLE | |
| 10 | SPOOL | ||
| 11 | 700-22-11252 | U-PACKING | |
| 12 | 700-22-11420 | GASKET | |
| 13 | 700-22-11430 | COLLAR | |
| 14 | 700-22-11261 | SEAL | |
| 15 | 700-22-11270 | PLATE | |
| 16 | 01252-30616 | BOLT | |
| 17 | 700-22-11231 | PLATE | |
| 18 | 700-22-11290 | RETAINER | |
| 19 | 700-22-11311 | SPRING | |
| 20 | 700-22-11320 | PLUG | |
| 21 | 700-22-11331 | COVER | |
| 22 | 700-22-12340 | BALL | |
| 23 | 700-22-12350 | SPRING | |
| 24 | 700-22-11351 | PLUG | |
| 25 | 07002-12434 | O-RING | |
| 26 | 700-22-11380 | PLUG | |
| 27 | 07000-12014 | O-RING | |
| 28 | 07002-02434 | O-RING | |
| 29 | 700-22-11360 | PLUG | |
| |30 | 700-20-54001 | VALVE ASS'Y | |
| 30 | SLEEVE | ||
| 31 | VALVE | ||
| 32 | 700-20-51430 | SPRING | |
| 33 | 700-20-51240 | RING | |
| 34 | POPPET | ||
| 35 | 700-20-51350 | SPRING | |
| 36 | 700-20-51340 | SCREW | |
| 37 | NUT | ||
| 38 | 07000-02011 | O-RING | |
| 39 | 700-22-11410 | O-RING | |
| 40 | 07002-02434 | O-RING | |
| 41 | 232-60-66410 | NIPPLE | |
| 42 | 07002-12434 | O-RING | |
| 43 | 700-22-11410 | O-RING |
